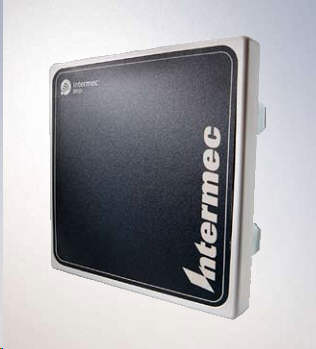

Intermec - IA33E
UHF RFID Antenna Cell
 |
|
|---|
Specifications
| Mechanical | |
|---|---|
| Dimensions | 196 mm (h) x 196 mm (w) x 25 mm (d) |
| Weight | 1.4Kg |
| Mounting | Adaptable Load Backrest (ALBR) included |
| IP Rating | IP66 |
| Connector | N Reverse Polarity |
| Environmental | |
| Operating Temperature | -25 to 55°C |
| Storage Temperature | -30 to 75°C |
| Relative Humidity | 10% to 90%(non-condensing) |
| Shock | 50 g, 8ms ½ sine, 5000 impulses each direction, each axis |
| Antenna Characteristics | |
| Frequency | 902 to 928 MHz |
| Gain | 6.0 dBi |
| Front to Back Ratio | 10 dBi |
| Maximum Input Power | 10Watts |
| VSWR | < 1.5:1 | Polarization | Right Hand Circular |
| H-Plane Beamwidth | 82 dedgrees (Half Power) (When mounted in the adjustable load back rest) | E-Plane Beamwidth | 82 dedgrees (Half Power) |
| Impedance | 50 ohms |
| Connector | N-Type Jack (Reverse Polarity) |
| Part Number | Model Number | Description | RRP Inc GST |
T % |
|---|---|---|---|---|
| [A] UHF RFID Industrial Antenna | ||||
| 805-816-002 | IA33E | Intermec RFID Industrial Antenna, 915MHz, 6dBi Circular Polorised, N(RP) | $440.00 | A |
| [B] Mounting Hardware | ||||
| 4-0150-011-5 | IA33E-MNT-KIT-1 | IA33E Antenna Mounting Kit | $154.00 | U |
| Antenna Mounting Kit | ||||
| [C] Standard Cable Assemblies | ||||
| For TNC(RP) Readers | ||||
| 2-9042-020-5 | CA9042-2 | Coax Cable, RG58, TNC (RP) Plug to N (RP) - 2m | $91.30 | U |
| 2-9042-030-4 | CA9042-3 | Coax Cable, RG58, TNC (RP) Plug to N (RP) - 3m | $93.50 | U |
| 2-9042-050-2 | CA9042-5 | Coax Cable, RG58, TNC (RP) Plug to N (RP) - 5m | $100.10 | U |
| 2-9042-060-1 | CA9042-6 | Coax Cable, RG58, TNC (RP) Plug to N (RP) - 6m | $102.30 | U |
| 2-9042-120-7 | CA9042-12 | Coax Cable, RG58, TNC (RP) Plug to N (RP) - 12m | $119.90 | U |
| For SMA(RP) Readers | ||||
| 2-9037-010-4 | CA9037-1 | Coax Cable, RG58LL, N Plug RP to SMA Plug RP - 1m | $171.60 | U |
| 2-9037-020-3 | CA9037-2 | Coax Cable, RG58LL, N Plug RP to SMA Plug RP - 2m | $173.80 | U |
| 2-9037-030-2 | CA9037-3 | Coax Cable, RG58LL, N Plug RP to SMA Plug RP - 3m | $176.00 | U |
| 2-9037-050-0 | CA9037-5 | Coax Cable, RG58LL, N Plug RP to SMA Plug RP - 5m | $180.40 | U |
| 2-9037-100-2 | CA9037-10 | Coax Cable, RG58LL, N Plug RP to SMA Plug RP - 10m | $191.40 | U |
| [D] Custom Cables | ||||
| Custom Coax Cables | ||||
