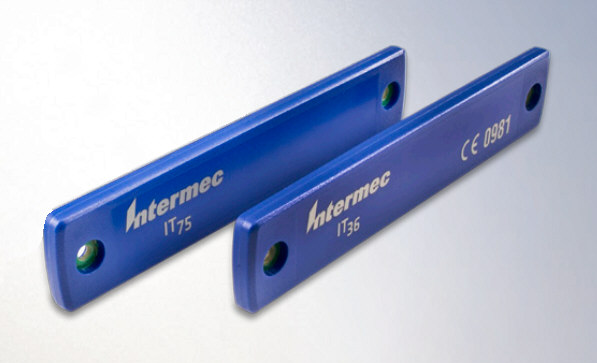

Intermec - IT36/75
UHF RFID Tag


Intermec’s rugged Low Profile Durable Asset Tags have been designed to provide superior performance and high durability on a variety of surfaces at a low cost.

Utilizing the latest generation of Gen 2 silicon supporting 512 bits of user memory within a small, durable form factor, Intermec’s Durable Asset Tags are suitable for tracking a wide variety of assets.

The IT36 is tuned for a wide frequency band to include both FCC and ETSI regions and is optimized primarily for non-metal surfaces, such as reusable plastic containers and wooden and plastic pallets.

The IT75 (tuned for FCC regions) and the IT76 (tuned for ETSI regions) are optimized specifically for metal surfaces such as metal pallets, ULDs, and other metal assets.

Applications

  • Rugged encapsulation for harsh environments
  • Consistent UHF range performance
  • IP66 Classification
  • Mount on Metal version
  • Delivers superior performance on a variety of materials
  • Reusable for lower cost per use

Specifications

Physical Characteristics
Dimensions111.5(l) x 22(w) x 5.1(h) mm
Encapsulation MaterialABS/PC
MountingAdhesive
Screws
Environmental Characteristics
Operating Temperature-40 - 82°C
Ingress ProtectionIP66
Communication Characteristics
Operating Frequency Range902 MHz - 928 MHz
Communication ProtocolEPCglobal UHF Class Gen 2/ISO 18000-6C
Read RangeUpto 12m (dependant on reader)
Data Characteristics
Memory OptionsMonza 4QT with 512bits of user memory
128 bits of EPC memory, and serialized TID
Ordering Information and Pricing
Part Number Model Number Description RRP
Inc GST		 T
%
[A] Intermec IT36 UHF RFID Tag
IT36A0001
IT36A0010
IT36A0250
[B] Intermec IT75 Mount on Metal UHF RFID Tag
IT75A0001
IT75A0010
IT75A0250
