UMD - Model 320
Universal Trigger Module - Interface Converter

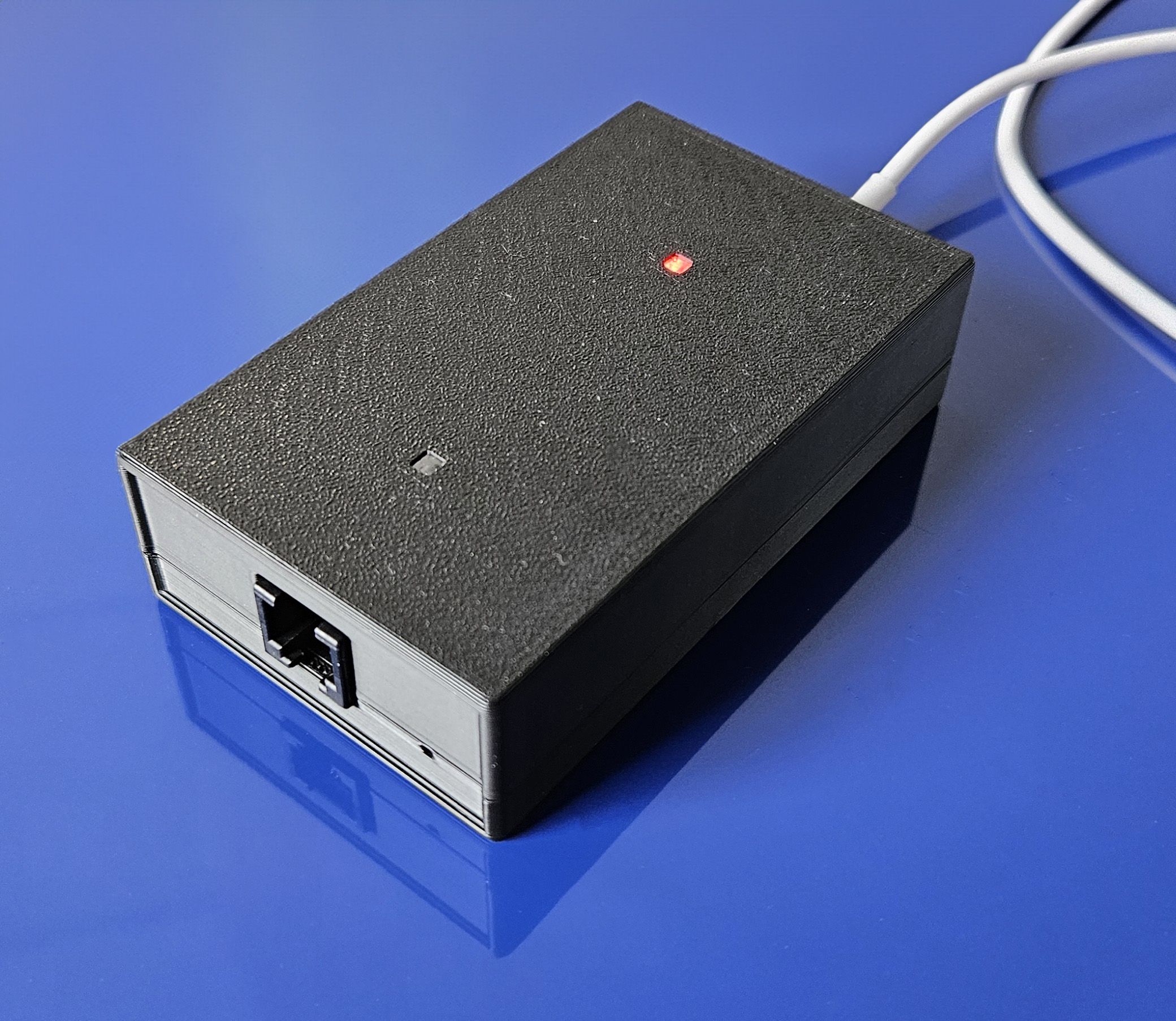

The UMD Model 320 Series Universal Trigger Module, is an intelligent microcontroller-based device designed to interface to solenoid based locking mechanisms as found in cash drawers and locks.

The UMD Model 320 can drive two solenoids, including a single feedback input line. Communication options include USB, Wi-Fi and Ethernet and is powered via the USB-C port.

A "unique" feature of the UMD Model 320 is the ability to be configure via a web browser which accesses the internal settings. Users can configure trigger codes, trigger voltage 12/24 volts, and other attributes, even update firmware and different application (apps) for specialised applications.

Commands to trigger the UMD Model 320 include USB from a host computer or Telnet over Ethernet or Wi-Fi.

The UMD Model 320 is preconfigured to support standard POS printer open commands, and drawer open/closed status using ESC/POS protocol and uses standard RJ12 modular connectors to accommodate standard cash drawer solenoid connectors.

Features

  • Intelligent Microcontroller Based Trigger Module
  • Multi-Interface: USB-C, Wi-Fi or Ethernet
  • USB Configuration via Browser, or Wi-Fi/Ethernet Web page
  • Configurable Solenoid voltage 12/24Vdc
  • Programmable Trigger Codes, including OPOS and ESC/POS compliance
  • Over the Air updates or special applications

Specifications

ModelM320-UM320-WM320-E
Physical Characteristics
Dimensions97 (l) x 61 (w) x 25 (h) mm
ColourBlack, Medium Cyan Blue, Custom on request
Interfaces
Cash Drawer1 x RJ12 6 Pin Modular connector, up to 2 drawers
Electrical
Power150mA (max)
Output DriveMax. 24V @ 1A (Programable to 5v, 9v, 12V, 18V or 24V)
Repeat Rate5 - 7 sec.
Communication Interface
USBUSB 2.0 Type-C
Wi-Fi-IEEE 802.11 b/g/n
Ethernet--RJ45
Indicators
LEDPower, Trigger 1, Trigger 2


Discover the UMD advantage: a feature comparison chart reveals the unparalleled innovation of the UMD M320 trigger modules compared to other products on the market.





Ordering Information and Pricing
Part Number Model Number Description RRP
Inc GST		 T
%
[A] Model 320 Universal Trigger Module with USB Interface (Includes 2m USB-A to USB-C Cable)
With USB Interface only
M320AU0000-F00 M320-U UMD Universal Trigger Module with USB Interface $99.00 U
With USB & Wifi Interface (Includes USB cable only)
M320AW0000-F00 M320-W UMD Universal Trigger Module with USB & Wifi Interface $121.00 U
With USB, Wifi & Ethernet Interface (Includes USB cable and USB Power plug pack)
M320AE0000-F00 M320-E UMD Universal Trigger Module with USB, Wifi & Ethernet Interface $176.00 U
[B] Accessories
1-6009-024-9 PP5RS540-USBA Power Supply, 240AC / 5V dc 540mA Wall Mount, USB Output $15.40 A4
9-7333-042-7 PS5RS1250-POES-USBC PoE 5V splitter module, USB-C S9265A $39.60 A1
A source of power is required for WiFi and/or Ethernet
