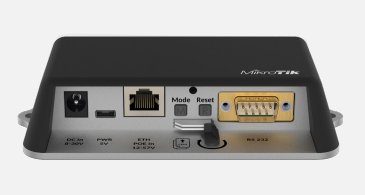

Mikrotik LtAP Mini Series
4G/Network Router


The LtAP mini LTE kit is a small weatherproof wireless access point with a built in cellular modem that supports 3G and 4G (LTE) connectivity. It is also available separately, without the modem, so you can use your own.

Connect to the LtAP minis built-in 802.11b/g/n wireless and access the LTE network from your phone or any other wireless device. The LtAP mini LTE also has one 10/100 Ethernet LAN port for your wired devices. The RS232 serial port gives you console access for debugging.

LtAP mini has a special enclosure with a wall mounting kit, two SIM slots to alternate between cellular providers, and integrated GPS support, making this a perfect device for use in moving vehicles like cars, buses or trains. An external GPS antenna is available for ordering separately.

The LTE card is connected to two internal antennas with u.FL connectors, so if you want, you can unplug the connectors and add your own external LTE antenna for better coverage. The unit has several powering options: 10-57 V PoE-in by Ethernet port, DC jack and microUSB.

Use the built in GPS module to track the location of your vehicle in real time, we have even provided a simple tracking application example in the RouterOS documentation, to help you start development of your platform.

Features

  • 2.4 GHz AP in a rugged case
  • miniPCIe for LTE
  • Two SIM slots
  • Built in GPS
  • Serial port for other devices
  • Perfect for cars or outdoor mobile applications

Specifications

Model RB912R-2nD-LTm&R11e-LTE RB912R-2nD-LTm
Physical Characteristics
Height 77 mm
Width 139 mm
Depth 28.5 mm
Weight 200g
Enclosure Anodised Aluminium base, plastic cover
Environmental Specifications
Operating Temperature -40C to 70C
Ingress Protection IP54
Power
Power Input PoE-IN (802.3af/at), 5V Micro USB, 8-30V DC Jack
Power Consumption Upto 9 Watts
System
CPU QCA9531, 650MHz
RAM 64MB
Storage 16MB
Operating System RouterOS
Data Ports 1x RJ45 Ethernet, 1x DB9 RS232
Wireless Connectivity
WLAN Built-in 2.4 GHz 802.11b/g/n, dual-chain, QCA9531, 360 Antenna Beam Width with 1.5dBi gain
WWAN LTE Modem 4 (150Mbps Downlink, 50Mbps Uplink), 3G R7 (21Mbps Downlinks, 5.76Mbps Uplink), With External Antenna Option (uFL connector) to support GPS, 2x Mini SIM slots Slot for miniPCI-e LTE card
Ordering Information and Pricing
Part Number Model Number Description RRP
Inc GST
T
%
[A] Mikrotik LtAP Mini Series 4G/Network Router (Includes PSU, DC Power Fly lead and Poe Injector)
9-7353-010-4 RB912R-2nD-LTm Mikrotik RB912R LtAP-mini with LTE antennas, 2 SIM slots, GPS, LTE 4G Modem included $319.00 A
Options
2-9053-010-3 CA9053 Coax Cable Adapter, U.FL toSMA Bulkhead Jack 100mm $30.80 A
