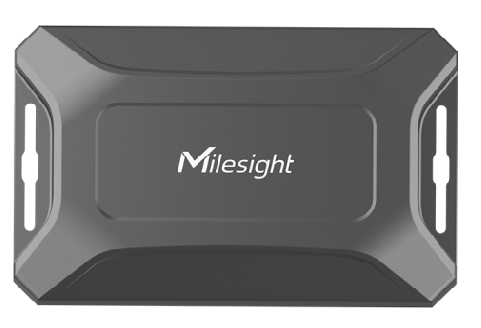

Milesight - AT101
Outdoor Asset Tracker


The Milesight AT101 is an exceptional outdoor asset tracker that uses GNSS and Wi-Fi AP MAC Address scanning to ensure awareness of critical assets. The AT101 includes tilt and temperature sensors for comprehensive data collection and to trigger alarms against tampering. Wi-Fi scanning provides positioning assistance in spaces with poor GNSS signals. Low power consumption option allows operation for over 15 years with twice-daily reports.

In addition to supporting NFC configuration similar to other Milesight sensors, the AT101 supports Bluetooth configuration. Build a virtual perimeter around a specific location with geofencing. Users can receive alerts when assets leave or return to the defined zones. Data can be stored locally with 1000 historical records to secure the traceability of reported information. With the support of data retransmission, the AT101 guarantees data transfer even if the network is down.

The AT101 is suitable for a wide range of applications such as logistics, equipment tracking, livestock farming and supply chain management. Three tailored modes of operation make the outdoor asset tracker suitable for many tracking applications: Motion mode reports positioning based on start/stop movement, Timing mode monitors assets for specified time periods and Periodic mode customises reporting intervals from one minute to one day.

Features

  • Highly accurate GNSS and cooperation with Wi-Fi positioning
  • Geofencing to secure assets within an area
  • Stores 1,000 historical records and supports data retransmission
  • IP67 waterproof and IK09 impact resistant for harsh environments
  • Built-in replaceable batteries. Works up to 15 years without replacement
  • Equipped with NFC and Bluetooth for easy configuration
  • Compliant with standard LoRaWAN gateways and network servers
  • Connects to UMD's Chariot Broker service

Specifications

Physical Characteristics
Dimensions110 mm × 70 mm × 30 mm
InstallationWall Screw mounting, 3M Tape mounting, Cable-tie mounting
Weight202g
Environmental Characteristics
Operating Temperature-30ºC to +70ºC
Relative Humidity0% to 95%
Ingress ProtectionIP67
Power
Battery4 × 2700 mAh ER14505 Li-SOCl2 replaceable batteries
Battery Life2 per day location updates - 15 years
10 per day location updates - 8 years
Hourly location updates - 4 years
Power On/OffNFC or internal power button
Temperature Sensor Characteristics
Range-40°C to + 125°C
Resolution0.1°C
Wireless Characteristics
TechnologyLoRaWAN
FrequencyCN470/IN865/RU864/EU868/US915/KR920/AS923-1&2&3&4
Tx Power16dBm (868) / 20dBm (915) / 19dBm (470)
Sensitivity137dBm @300bps
ModeOTAA/ABP Class A
Positioning Characteristics
GNSS Position accuracy5.0m (direct line of sight)
GNSS ResolutionLongitude/Latitude: 0.0001
Altitude: 1m
GNSS Time to first fixCold Start: 37s Average
Hot Start: 1s Average
Wi-Fi PositioningIndoor asset location using Wi-Fi access point scanning (does not connect to Wi-Fi)
Wi-Fi ParametersBSSID, RSSI
Wi-Fi Standards802.11b/g/n 2.4GHz
Configuration Interface
NFCPower On/Off


Ordering Information and Pricing
Part Number Model Number Description RRP
Inc GST
T
%
[A] Milesight AT101 Outdoor Asset Tracker with LoRaWAN
AT101-915M AT101 Milesight GPS (GNSSS) Outdoor Asset Tracker with LoRaWAN backhaul $220.00 C1
[B] UMD Services
Contact UMD Sales for details on Tracking Services
