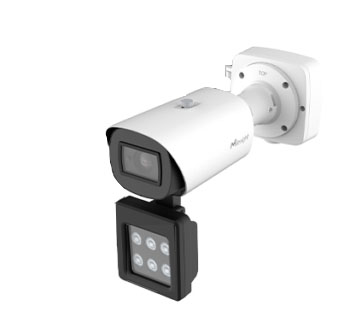

Milesight - C2966 Series
Entrance & Exit Supplement Light AI LPR Pro Bullet Plus Camera


The Milesight Entrance & Exit AI LPR Bullet Camera intelligently monitors and manages traffic behaviour at entrances and exits. Based on real-time data, valuable insights are obtained to help traffic management systems optimise traffic flow, reduce the risk of accidents and manage emergencies.

Intelligent AI powered LPR algorithm not only recognises vehicle plates in real time, but also identifies vehicle features like model, colour, etc. Embedded black and white list enables a standalone licence plate recognition solution as well as vehicle detection without registration plates.

Integrated with supplement light White LED, the camera illuminates up to 25m during the day and night. Adjustable brightness of the supplement light provides the best possible image results. WDR technology captures scenes with detail under extreme light and high contrast conditions, ensuring better capture or road traffic details. Industry leading 60fps easily catches vehicle and plate images with no latency during high speed movement.

Milesight AI cameras feature industry leading SIP/VoIP and video streaming. LPR smart search quickly finds relevant videos based on the target vehicle’s features, such as brand, plate number, direction and type & colour. This ensures efficient investigations and intelligent road traffic monitoring.

A rich set of interfaces such as Wiegand, DC, Audio I/O and Alarm I/O are available to offer more choices for easy management and various needs. Generate reliable traffic insights to improve safety and efficiency for access control at entrances and exits.

Features

  • Intelligent AI powered licence plate recognition
  • Integrated Supplement Light illuminates up to 25m
  • Smart IR II Technology adjusts intensity based on distance
  • Black & White list and No-plate Vehicle Detection
  • Wiegand Protocol for Access Control Systems
  • 140dB Super WDR
  • IK10 resistance to physical damage
  • Support for PoE

Specifications

  Physical Characteristics
Dimensions 320 mm x 134 mm x 126 mm
320 mm x 134 mm x 231 mm (With Supplement Light)
Mounting Wall/Ceiling Mount
Weight 1630g
2075g (With Supplement Light)
  Environmental Specifications
Operating Temperature -40°C to 60°C
Ingress Protection IP67, IK10
Over Voltage 4000V
  Power
Power Input PoE-IN (802.3af), 12V DC
Power Consumption 6W Max
10W Max (With continuous IR on)
  Camera
Image Sensor 1/2.8" Progressive Scan CMOS
Lens 2.7~13.5mm Motorised
Maximum Resolution 2 Megapixel (1920x1080)
Field of View H: 111°~34°; V: 60º~19º; D: 130°~39°
WDR 140dB Super WDR
Day/Night Day / Night / Auto / Customisable / Schedule
Streaming Rates Main: 60fps / 50fps@(1920x1080, 1280x960, 1280x720, 704x576)
Secondary: 60fps / 50fps@(704x576, 640x480, 640x360, 352x288, 320x240, 320x192, 320x180)
Tertiary: 30fps / 25fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240, 320x192, 320x180)
Compression H.265+ / H265 /H.264+ / H264 / MJPEG
  Communication Interfaces
Ethernet 1 × RJ45 10M/100M
Wiegland Standard Wiegland 26-bit
RS485 Supported
  Audio
Audio 2-Way Audio Support
VoIP Supported, voice & video-over-IP
Compression G.711/AAC/G.722/G.726
Bit Rate 16-256Kbps
  Entrance & Exit Management Support
Maximum Vehicle Speed 200km/h
Accuracy >98%
Illumination Distance Up to 25m during the day
Up to 25m during the night with illumination
Attributes Plate colour, Vehicle type / Colour / Brand, No-plate Vehicle capture, Vehicle direction detection
Black / White List Up to 20000 records inside camera
Trigger Events Motion detection, Black/White list, Network disconnection, Audio alarm, etc.
Event Action FTP / SMTP upload, SD card record, HTTP notification, etc.



Ordering Information and Pricing
Part Number Model Number Description RRP
Inc GST
T
%
[A] Milesight C2966 Series Entrance & Exit AI LPR Bullet Camera
MS-C2966-RFLWPE/W AI Based Entrance & Exit Camera for LPR, Bullet with Supplement Light. 2MP Motorised Lens (2.7-13.5mm) IP67 POE $1,265.00 C3
