Milesight - DS7610
LoRaWAN IoT Display

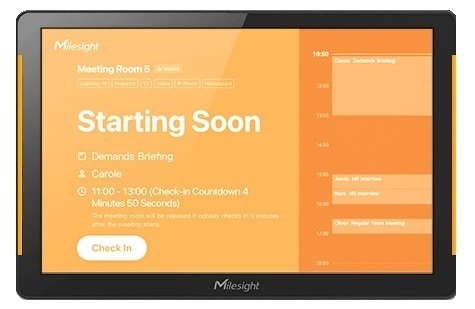

The Milesight DS7610 LoRaWAN IoT Display featuring a 10.1 inch capacitive touchscreen simplifies the current condition of rooms while managing Milesight LoRaWAN sensors from a single portable display. Cater to multiple use cases with customisable backgrounds, branding logos and the user interface for a simplified and yet comfortable display. The DS7610 is ideal for workplaces, hotels and shopping centres.

Gain insights to manage Milesight LoRaWAN sensors using the built-in LoRaWAN gateway and NFC to showcase intuitive data on the screen. Create NFC enabled experiences to enhance existing systems including visitor verification and meeting room check-in/out processes.

Utilise smart screen mode to automatically adjust screen brightness according to current light conditions. Power saving settings automatically turns off the screen when no one is detected nearby. Customisable RGB LED side indicators notify real time room availability instantly from a distance.

Powered by Android 11, users can install third party applications to meet specific requirements including meeting room booking and visitor appointment systems. Plug and play power options include PoE (Power over Ethernet), DC power or Type C.


Features

  • 10.1 inch touchscreen with customisable user interface
  • Manage Milesight LoRaWAN sensors
  • Supports installation of third party applications
  • Easy installation and flexible mounting options
  • Equipped with NFC for easy configuration

Specifications

Physical Characteristics
Dimensions245 mm x 160 mm x 18 mm
Weight0.65kg
InstallationWall Mounting, 3M Tape Mounting, VESA Desktop Stand Mounting
ColourBlack
Environmental Characteristics
Operating Temperature-10ºC to +60ºC
Storage Temperature-20ºC to +50ºC
Relative Humidity0% to 95% (non-condensing)
Ingress ProtectionIP30
Power
Power Supply1. 802.3af PoE
2. 12V/1A by DC Jack Connector
3. 5V/2A by Type-C Port
Hardware / Software
CPUQuad-core ARM Cortex-A55
Memory2GB DRAM
Flash16GB eMMC
LCD Screen10.1 inch TFT LCD Touch Screen
Resolution1280 x 800
Aspect Ratio16:10
Speaker1.5W
Operating SystemAndroid 11.0
Sensor Characteristics
Proximity SensorDetection Distance: 1 m (max)
Light Sensor5 Brightness Level Adjustment
NFC13.56 MHz
Wireless Characteristics
TechnologyLoRaWAN
FrequencyCN470/IN865/RU864/EU868/US915/AU915/KR920/AS923
Tx Power19 dBm (470) / 16 dBm (868) / 22 dBm (915)
Sensitivity-137dBm @300bps
ProtocolV1.0.3 Class A/Class C
Configuration Interface
Wi-FiIEEE 802.11 b/g/n, 2.4 GHz
IEEE 802.11 a/n/ac, 5 GHz
BluetoothBluetooth 5.0
Ethernet1 x RJ45 10/100/1000 Mbps Ethernet Port (PoE PD Supported)
Type-COTG or Host Mode


Ordering Information and Pricing
Part Number Model Number Description RRP
Inc GST
T
%
[A] Milesight DS7610 LoRaWAN IoT Digital Display
DS7610-915M DS7610 LoRaWAN IoT Digital Display, 10.1 $935.00 C3
