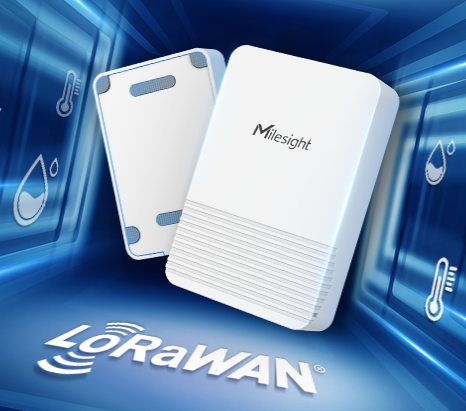

Milesight EM320-TH Temperature and Humidity LoRaWAN Sensor


The EM320-TH is a simple, compact and powerful LoRaWAN temperature and humidity sensor equipped with high-precision sensors in an IP67 waterproof design, applicable for use to collect accurate temperature and humidity data in various harsh environments. Food-grade material’s enclosure and magnet design allow it to be placed in freezers and refrigerators and in contact with food or medicines safely. In addition to LoRaWAN technology with low power consumption, it has built-in high-capacity batteries suitable for up to 5 years of use without battery replacement. Moreover, the EM320-TH interfaces directly to UMD Chariot Platform, a cloud based application broker providing data capture abstraction and management from other applications (Subscribers, who just want to use the data, and are not interested in how it's collected).

The EM320-TH sensor suitable for both indoor and outdoor applications such as cold chain transportation, agricultural greenhouses, office buildings, hospitals, factories and more!

Features

  • High-precision sensor, capable of sensing subtle changes in temperature and humidity
  • IP67 enclosure for effective performance for harsh environments
  • Uses a food-grade material enclosure, safe for contact with food or medicines
  • Ultra-low power consumption with built-in replaceable batteries, ensuring durable battery life
  • Wall mounting or magnet version options for multiple installation scenarios
  • Anti-theft and anti-slip pad design on back cover for firm and sturdy installation
  • Long range data transmission
  • Store locally upto 3000 historical records for retransmission support to prevent data loss
  • Equipped with NFC for easy configuration
  • Compliant with standard LoRaWAN gateways and network servers

Specifications

Physical Characteristics
Dimensions85 mm (w) x 58 mm (d) x 15 mm (h)
InstallationWall mount or magnet version options
Environmental Characteristics
Operating Temperature-30ºC to +60ºC
Relative Humidity0% to 100%
Ingress ProtectionIP67
Power
Battery2 × 2700 mAh ER14505 Li-SOCL2 Cells
Battery LifeUpto 5 years
Power On/OffNFC with APP, or Internal Power Button
Temperature Sensor Characteristics
Range-30°C to + 60°C
Accuracy+/- 0.2°C
Resolution0.1°C
Humidity Sensor Characteristics
Range0 - 100% RH
Accuracy+/- 2%
Resolution0.5% RH
Wireless Characteristics
TechnologyLoRaWAN
FrequencyCN470/IN865/RU864/EU868/US915/AU915/KR920/AS923-1&2&3&4
Tx Power16dBm(868)/20dBm(915)/19dBm(470)
Sensitivity137dBm @300bps
ModeOTAA/ABP Class A
Configuration Interface
NFCPower On/Off, configure with Mobile App
Ordering Information and Pricing
Part Number Model Number Description RRP
Inc GST
T
%
[A] Milesight EM320-TH LoRaWAN Temperature and Humidity Sensor
EM320-TH-915M EM320-TH LoRaWAN Temperature & Humdity Sensor & Logger $154.00 C3
EM320-TH-915M-MAG EM320-TH-MAG LoRaWAN Temperature & Humdity Sensor & Logger with Magnetic Base $154.00 C3
