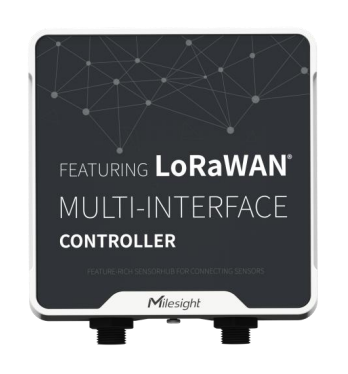

Milesight UC500 Series LoRaWAN Controller


The Milesight UC500 series is a LoRaWAN controller used for data acquisition from various sensors and equipment. It contains different I/O interfaces including analog input, digital I/O, a serial port and so on, which enables simplified deployment of LoRaWAN network solutions.

The UC500 series can be easily and quickly configured by NFC or by using the included USB port. For outdoor applications, it can be powered in a number of different ways, such as built-in solar panel or high-capacity battery and is able to supply power to other devices. Built into an IP67-rated enclosure and using M12 connectors the US500 is protected from water and dust intrusion, suitable for deployment in challenging remote environments.

Features

  • Easy to connect with multiple wired sensors through GPIO/AI/RS232/RS485interfaces
  • Long transmission distance up to 15 km with line of sight
  • Waterproof design including IP67 case and M12 connectors
  • Multiple power options available
  • Equipped with NFC for one touch configuration
  • Compliant with standard LoRaWAN gateways and network servers

Specifications

Physical Characteristics
DimensionsTransceiver: 116 mm (h) x 116 mm (w) x 45.5 mm (d)(Excluding prongs)
InstallationWall or Pole Mount
Environmental Characteristics
Operating Temperature-20ºC to +60ºC
Relative Humidity10% to 90% (non-condensing)
Ingress ProtectionIP67
Power
Power Source OptionsUC501: 2x internal 2550mAh rechargeable cells, 1.6W built in solar panel, 5-24V/DC external input
UC502: 3x replaceable Li-SOCl2 cells, 5-24V/DC external input
Power Output Options2x 3.3 V@Max 300mA, 2x 5/9/12 V @Max 200 mA (Switchable), 2x 3.3V*1
Power On/OffInternal Button, NFC or remote switching
Data Interfaces
Interface 112V/9V/5V Out (Selectable), 3.3V Out, 2x Analog Inputs, Power In (5-24V/DC)
Interface 212V/9V/5V Out (Selectable), 3.3V Out, 2x GPIO (Input, Output, Pulse Counter - Selectable)
Wireless Characteristics
TechnologyLoRaWAN
FrequencyCN470/IN865/RU864/EU868/US915/AU915/KR920/AS923-1&2&3&4
Tx Power16dBm(868)/20dBm(915)/19dBm(470)
Sensitivity-137dBm @300bps
Work ModeUC501: OTAA/ABP Class A, Class C
UC502: OTAA/ABP Class A
Configuration
OptionsMobile App via NFC, Remote Access, Internal USB-C

*1 Power output on interface 1 is used for powering analog devices, power output on interface2is used for powering serial port devices.



Ordering Information and Pricing
Part Number Model Number Description RRP
Inc GST
T
%
[A] Milesight UC500 Series LoRaWAN Controller
UC501-915M UC501 LoRaWAN IoT Controller, Multi-IO - Interace1= 2xGPIO, 1xRS232/485, 1x3.3V DO, 1x5/9/12V Interface2= 2xAI, 1x3.3V DO, 1x5/9/12V with Solar Input 5-24 Vdc IP67 $286.00 C3
UC502-915M UC502 LoRaWAN IoT Controller, Multi-IO - Interace1= 2xGPIO, 1xRS232/485, 1x3.3V DO, 1x5/9/12V Interface2= 2xAI, 1x3.3V DO, 1x5/9/12V, 5-24 Vdc input IP67 $286.00 C3
[B] Options
ACC-SOPAN SOPAN-5W Solar Panel, 5W, (10W, 0.28A max) $55.00 C3
