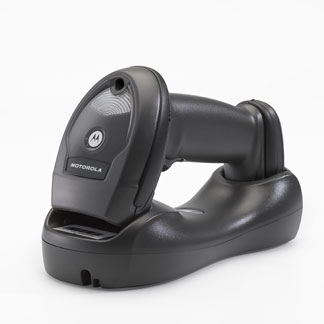

Zebra - LI4278
Cordless Bar Code Reader


The Zebra LI4278 takes 1D bar code scanning to the next level, allowing workers to scan faster and farther cordless with a barcode reader that is a durable, future-proof device, that delivers an outstanding total cost of ownership solution. Workers can move within a 50 ft./15 m radius to scan items — and the elimination of hazardous cables creates a safer work environment.

Allowing workers to scan faster and farther capture virtually any 1D bar code — including the typical bar codes that are printed on paper labels, electronic bar codes displayed on the screen of a mobile phone, tablet or computer allows retailers to easily process loyalty cards, mobile coupons and more, as well as the high density (HD) bar codes commonly used in electronic component manufacturing.

From cashiers moving around the register to scan large, heavy items and check for missed items, to healthcare workers double checking that the right patient is receiving the right medication, integrated Bluetooth provides reliable and secure wireless transmission of data between the scanner and your host. Productivity is improved, revenues are protected and potential liability due to injury from lifting heavy objects is reduced.

Features

  • Bluetooth Serial Port or HID Interface
  • Easy to pickup and use
  • Excellent Linear Scanning Performance
  • Superior Motion Tollerance
  • Batch Mode Operation
  • High Durability - withstands 1.8m Drop to Concrete
  • 3 year warranty

Specifications

Mechanical
Dimensions Scanner: 186 (h) x 98 (l) x 70 (w) mm
Cradle: 50 (h) x 211 (l) x 86 (w) mm
Weight Scanner: 224g
Cradle: 183g
Environmental
Temperature Operating: 0 to 50°CStorage: -40 to 70°C
Relative Humidity 5% to 85% (non condensing)
Electrical
Battery 3.6V Ni-MH 720mAh
Operating Time 8 hours (Once every 5 seconds)
Optical
Scan Rate(per second) 547
Optics Class 1 LED 617nm
Roll +/- 45°
Pitch +/- 65°
Yaw +/- 65°
Print Contrast 15% Minimum Reflectance
Depth of field
76 - 1400 mm (Dependant on Barcode)
Symbologies Decoded
UPC/EAN and with supplementals, Code 39, Code 39 Full ASCII, Tri-optic Code 39, GS1 128, Code 128, Code 93, Codabar (NW1), Interleaved 2 of 5, Discrete 2 of 5 MSI, Code 32, GS1 DataBar-14, GS1 DataBar Limited, GS1 DataBar Expanded
Communications
Scanner Interface

Bluetooth Serial (V2.1 Class 2)
Cradle Interface Options

RS-232C; IBM 468x/469x; keyboard wedge; USB; laser/wand emulation
Ordering Information and Pricing
Part Number Model Number Description RRP
Inc GST
T
%
[A] Zebra LI4278 Bluetooth Barcode Reading Kit with Base Station
Black
LI4278-USB/S
[B] Replacement Parts - Base Station
Radio Base Station
CR0078-SC10007
USB Cable
CBA-U01-S07ZAR
Replacement Battery
BTRY-LS42RAA0E-01 ZEBRA BATTERY DS6878/LI4278/LS4278 $46.20 C3
