UMD - MP3060
Arduino UHF Shield
 |

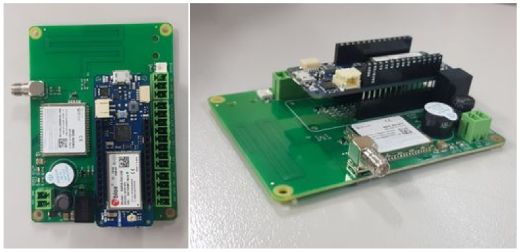

The UMD Model MP3060 Series of Arduino Shields are UHF RFID Reader/Writers daughter boards (Shields) specifically developed for the Arduino MKR Series of embedded controllers. The core reading module is based on the ThingMagic M6E Nano UHF RFID Reader module. |
|---|
Specifications
| Physical Characteristics | |
|---|---|
| Sheild PCB Only | 70 (w) x 95 (d) x 19 (h) mm |
| PCB with Arduino MKR | 70 (w) x 95 (d) x 25 (h) mm 86 x 118 x 12.5 mm (with terminal block connector mounted) |
| Environmental Characteristics | |
| Operating Temperature | 0°C to +60°C |
| Storage Temperature | -30°C to +80°C |
| Electrical Characteristics | |
| Input Voltage | 6.5V - 32V DC on J2 or 5V DC through the Arduino MKR Micro-USB Port |
| Power Consumption Idle: Operating: | 1W 2.3W with 5V Micro USB Input, 3.7W with 24V Input |
| Available Voltage Outputs | Power In, 5V/DC, 3.3V/DC |
| I/O Port Characteristics | |
| Inputs | 2x Opto-Isolated |
| Output | 4x Open Collector Output to drive external WS2812B RGB LED string (in series with Device Status LED) |
| Indicators | |
| LED's | 2x Input Port LED's 4x Output Port LED's Device Status LED RF Field Activated LED RF Field Error |
| Audio | Buzzer |
| RFID Characteristics | |
| Frequency | 920-926MHz, UHF |
| Standard | ISO-18000-6C |
| Power | 0 dBm to +27 dBm (0 dbm to Max. 21 dbm with 5V Input) |
| Antennas | 1x Internal PCB, 1x RP-SMA port for external Antenna |
| Part Number | Model Number | Description | RRP Inc GST |
T % |
|---|---|---|---|---|
| [A] MP3060 Arduino UHF Shield | ||||
| 3-3060-100-2 | MP3060-1 | UMD Arduino UHF RFID 2 Port Shield | $1,100.00 | U |
| Engineering support is available on this product including interfacing. Contact UMD Sales for details. | ||||
