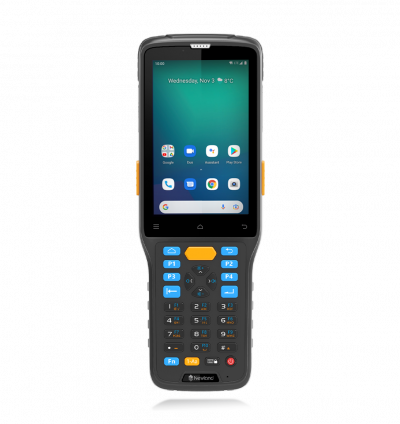

Newland - N7 Cachalot Pro
Handheld Computer

	The Newland N7 Cachalot Pro Handheld Android Computer has been designed as a basic all use device for normal logistics, manufacturing and warehousing operations where a good readable display and keypad are required. The High Density 4" touchscreen with Gorilla Glass is suitable for use with gloves and retains sensitivity when wet. The screen has a high transparency and low reflectivity to give crystal clear images, even in sunlight. Supplied with Android 10 for use with modern applications, a hot swappable battery and the option of Standard Range or Mid Range Barcode Readers ensure the N7 is suitable for normal use in these areas. Features Standard or Mid Range Barcode Reader Gorilla Glass protected display 4"HD Display (480x800 pixels) Sound Notifications to 90 Decibels Fast Charge, Hot Swappable Battery 12 Months Standard Warranty

The Newland N7 Cachalot Pro Handheld Android Computer has been designed as a basic all use device for normal logistics, manufacturing and warehousing operations where a good readable display and keypad are required. The High Density 4" touchscreen with Gorilla Glass is suitable for use with gloves and retains sensitivity when wet. The screen has a high transparency and low reflectivity to give crystal clear images, even in sunlight. Supplied with Android 10 for use with modern applications, a hot swappable battery and the option of Standard Range or Mid Range Barcode Readers ensure the N7 is suitable for normal use in these areas.

Features

Standard or Mid Range Barcode Reader
Gorilla Glass protected display
4"HD Display (480x800 pixels)
Sound Notifications to 90 Decibels
Fast Charge, Hot Swappable Battery
12 Months Standard Warranty

Specifications

	Physical Characteristics
Length	200 mm
Width	70 mm
Depth	29 mm
Weight	360g
	Environmental Characteristics
Operating Temperature	-20° to 55°C
Storage Temperature	-40° to 70°C
Humidity	5-95% (non-condensing)
Fluid/Dust Protection	IP65
Shock Resistance	1.8m Drop
Electro Static Discharge (ESD)	ą8 KV (direct discharge); ą15 KV (air discharge)
	Hardware
Processor	Qualcomm Snapdragon 1.8GHz main frequency
RAM	4GB
Flash ROM	64GB
Memory Expansion	Micro SD/TF card (max. 128 GB)
Display	4" (102mm), WVGA(480 x 800 pixels), with Gorilla Glass Supports input with gloves and when wet
Keypad	29, 38 or 47 physical buttons with white backlight function Two scan buttons (left/right), three touch navigation keys
Camera	13 Megapixel Rear, PDAF, with LED flashlight
User Feedback	Vibrator, speaker, and multi-colour LED
Sensors	Gravity Sensor, Hall Switch
	Power
Main Battery	LiIon, 3.8V, 5100 mAh, removable
Battery Life	Upto 15 Hours 500 Hours in Standby
Charging	Type-C 9V/2A,15V/l.2A Single Dock(Daisy-chain upto 4)
	Software
Operating System	Android 10
	Barcode Scanner
Type	Standard Range Mid Range, for Reading Further
Symbologies	Reads all Major 1D and 2D Symbologies
	Communications
Wireless	4G WWAN (Nano+Nano or Nano+TF) 802.11a/b/g/n/ac/d/h/i/k/r/v/w WLAN (2.4 & 5GHz) Bluetooth 4.2+BLE ISO14443A/B NFC (13.56MHz) GPS (AGPS), Galileo, Beidou,GLONASS
USB	USB-C

**Ordering Information and Pricing**
Part Number	Model Number	Description	RRP Inc GST	T %
[A] Newland N7
NLS-N7-WIFI-10	N7	2D ANDROID 10 1300M REAR CAM GORILLA GLASS BT/WI-FI/GPS/NFC/ 47 KEYS KEYBOARD	$1,419.00	C4



[B] Accessories
NSL-PGN7	PGN7	PISTOL GRIP FOR N7	$198.00	C4
NLS-CDN7-C-HIGHV	CDN7-C	SINGLE SLOT CHARGING CRADLE (ASSEMBLED UP TO 4 SLOTS) FOR N7 WITHOUT ADAPTOR (ADN7-C-HIGHV)	$176.00	C4
NLS-CDN7-48	CDN7-4	4-SLOT CHARGING CRADLE FOR N7 AND N7LS BATTERY BTY70 EU STANDARD	$121.00	C4
