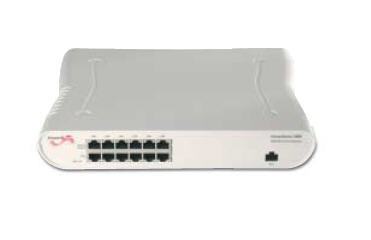

Power Over Ethernet Model 3006


The Power Over Ethernet Model 3006 offers a cost-effective, fully IEEE 802.3af compliant solution designed for the Small Medium Business (SMB) market. The POE 3006 allows an easy, simple and cost-effective way for SMBs to deploy low-density installations of powered terminals, such as Wireless LAN Access Points (WLAN APs), network security cameras and Internet Protocol (IP) phones. For Wireless LAN deployments, the POE 3006 supports up to six WLAN APs, replacing current 1-port power injector solutions that are only able to support one dedicated powered terminal.
  • Fully IEEE 802.3af standard compliant
  • Safe and reliable powering of wireless LAN access points and low-port density installations
  • Automatic detection and protection of legacy Ethernet terminals
  • Compact design specifically tailored for small business
  • 12 Months Return to Base Warranty

Specifications

Physical Characteristics
Dimensions281 x 284 x 44 mm
Weight1.1 Kg
Environmental Specifications
Operating TemperatureFrom 0 to 40°C
Storage-20 to 70°C
Humidity0 to 90 % non condensing
Power
Input Voltage90 to 264 V/AC
Input Current4A at 110 V/AC
2A st 220 V/AC
Input Frequency47 to 63 Hz
Pin Assignment4/5 positive, 7/8 negative
Output Voltage48 V/DC
Channel Power15.4 W (Min.)
Total Power93 W
Operating Characteristics
Number of Ports6
Data Rates10/100 Mbps
Power IndicatorGreen/Orange LED
Channel IndicatorGreen/Orange LED
Certifications
Regulatory ComplianceCE
Electromagnetic Emission & ImmunityFCC Part 15, Class B with FTP cablingEN 55022 Class B (Emissions)EN 55024 (Immunity)
Safety ApprovalsUL/cUL Per EN 60950GS Mark Per EN 60950
Ordering Information and Pricing
Part Number Model Number Description RRP
Inc GST		 T
%
[A] Power Over Ethernet Model 3006
9-7333-020-3 3006 POE 6 port Bridge $616.00 A
