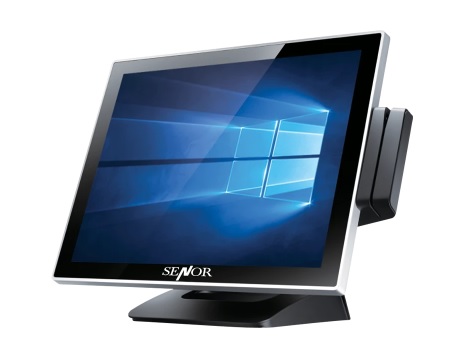

SENOR - cSMON


The SENOR cSMON is a 15" POS Touch Monitor, specifically designed to meet the demands of the Point of Service environment. It’s slim line design, projected capacitive touch (P-CAP) and ventless aluminium casing enable easy maintenance.

Features

  • Ventless Touch Monitor
  • Aluminium Die Cast Casing
  • Heat Dissipating Enclosure
  • Internal Power Supply
  • VESA Mount Capability
  • Projected capacitive touch (P-CAP)
  • USB touchscreen controller
  • 12 Months Warranty
Specifications
 Physical Characteristics
Width 389 mm
Height 303 mm
Depth 205 mm
Weight 5.0 Kg
Mounting Supplied Stand or 75mm VESA Mount
 Environmental Characteristics
Operating Temperature 5 to 40°C
Storage Temperature -20 to 60°C
Operating Humidity 20 to 80%
Storage Humidity 20 to 95%
 Electrical
Power Source 12V/DC, 4.16A External Adaptor
Operating 50A max.
 Display Panel
Pixel Resolution 1024 * 768
Colours 16.2 Million
Brightness 300 cd/m2
 Interface
Touch Panel Projected capacitive touch (P-CAP)
Connector 15-Pin VGA
Ordering Information and Pricing
Part Number Model Number Description RRP
Inc GST
T
%
[A] cSMON 15" LCD Monitor
Touch Monitor
cSMON15T cSMON 15T Senor cSMON 15” TFT LCD, PCT multi-touch screen, 6H hardness 1024 x 768 resolution, 300 cd/m² brightness VESA mount 75 mm x 75 mm (3 mm holes) $990.00 A
