SENOR - DS 980 Series
Digital Scales

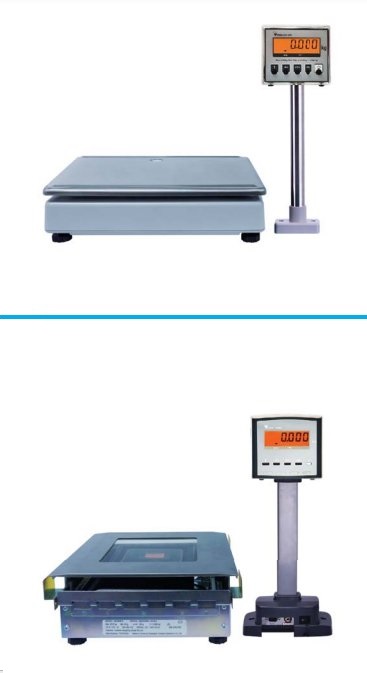

The SENOR DS-980 Series of Checkout Scales are robust weigh scales designed for use at the checkout.

Available as a simple desktop model or an in-counter version with integrated 1D/2D Barcode Reader, each model comes with an easy to read double-sided remote pole display.

Features

  • NMI approved for trade use in Australia
  • Simple, robust design
  • Easy-to-read 6-digit LCD weight display
  • Sturdy stainless steel weighing platter, with tempered glass on DS-984 embedded scale
  • 12 Month Return to Base Warranty
Specifications
Model DS-983 Checkout Scale DS-984 Scanner Scale
Physical Characteristics
Width
Scale:
Display:
341 mm
130 mm
294 mm
182 mm
Depth
Scale:
Display:
284 mm
50 mm
284 mm
107 mm
Height
Scale:
Display:
80 mm
390 mm
89 mm
433 mm
Weight
Scale:
Display:
5.1Kg
0.75Kg
7.5Kg
1.1Kg
Weighing Platter Stainless Steel Stainless Steel with Tempered Glass Scanner Window
Mounting Desktop In-Hole, with feet or Cut-out Rest
Environmental Characteristics
Operating Temperature 0 to 34°C
Storage Temperature -10 to 50°C
Operating Humidity 20 to 80% (Non-Condensing)
Storage Humidity 10 to 90% (Non-Condensing)
Electrical
Power Input 6-12V/DC, 1A,
Power Adaptor Output 12V/DC, 1.5A
(Included with scale)
System Configuration
Output Format Supports 38 Inbuilt Data transfer Protocols
Scan Capacity 0 - 15Kg
Scan Tolerance 0 - 6Kg, 2g
6-15Kg, 5g
Auto Switching
Display Easy to read 6 Digit, Double Sided LCD Weight Display
Barcode Reader - 1D/2D Embedded Omni-directional Barcode Reader **
1D Only or 2D compatibility Mode
Output Interface RS-232 Serial, Cable included

         ** Removeable

Ordering Information and Pricing
Part Number Model Number Description RRP
Inc GST		 T
%
[A] Senor DS980 Series Scales
DS-983
DS-984
