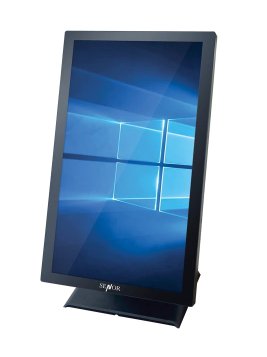

SENOR -Peta POS Series
Touchscreen System


The SENOR Peta POS Series is a robust POS touch screen with an integrated computer, designed to be suitable for use in a wide range of applications.

Available in either Windows or Android variations the Peta POS is a robust VESA Mountable Touchscreen Computer designed to meet any customer facing requirement.

Features

  • Sleek design for retail and hospitality
  • Projected capacitive touch (P-CAP)
  • Fanless heat-dissipating aluminium casing
  • Commercial grade 21.5” Display panel 1920x1080 Pixel Full HD
  • Able to be operated in portrait mode (mini kiosk)
  • 12 Months Return to Base Warranty
  • Extended warranty and on-site maintenance available
Specifications
Model PETAPOS 900 PETAPOS X30 PETAPOS A100
Physical Characteristics
Width 516 mm
Height 314 mm
Depth 55 mm
Weight 5.6Kg
Chassis Die-cast Aluminium
Mounting VESA 100x100mm Pattern
Environmental Characteristics
Operating Temperature 0 to 34°C
Storage Temperature -20 to 60°C
Operating Humidity 20 to 80% (Non-Condensing)
Storage Humidity 10 to 90% (Non-Condensing)
Electrical
Power Source External 100 ~240 V/AC
Power Adaptor Output +12.0 V/DC, 7A, 84W (Max)
System Configuration
CPU Intel Quad Core Celeron J1900 2.0 GHz, up to 2.42 GHz Intel Dual Core i3-4100U 1.7 GHz ARM Quad Core Cortex-A17 1.8GHz (RK3288)
RAM 4 GB DDR3L RAM (upto 8GB) 4 GB DDR3L RAM (upto 16GB) 2 GB DDR3
Storage 1 x 2.5” removable SSD/HDD, 1 x mSATA 16 GB eMMC
Display 21.5” TFT LCD, 1920 x 1080 pixels
Brightness 225 cd/m2
Touch Panel Projected capacitive touch (10-point, multi-touch)
I.O Interface
USB Ports 2 x USB 2.0, 2 x USB 3.03 x USB 2.0
Serial Ports 1 x DB9, 2 x RJ50 1 x DB9
Network Port 1 x RJ45 10/100/1000 Mbps
Wireless Ports - BT 4.0, Wi-Fi 802.11 b/g/n
Video-Out Ports 1 x VGA, 1 x HDMI1 x Display Port, 1 x HDMI1 x HDMI
Audio Ports 1 x mic-in/line-out (combined)
Software
Operating System Windows 10 IoT, Windows 10 Pro Android
Options
Options1D/2D Integrated Barcode Reader, Desk Stand
Ordering Information and Pricing
Part Number Model Number Description RRP
Inc GST
T
%
[A] Peta POS
PETAA521 Peta POS A521 Senor Peta POS, 21.5” TFT LCD, projected capacitive touch Screen ARM Quad Core Cortex-A55 (RK3568) up to 2.0 GHz 4 GB DDR4 RAM, 32 GB eMMC, Android 11 with Google Play $1,760.00 A
PETAJ621 Peta POS J621 Senor Peta POS, 21.5” TFT LCD, projected capacitive touch Screen Intel Quad Core Celeron J6412 2.0 GHz up to 2.6 GHz 8 GB DDR4 RAM, removable SATA 2.5” SSD
[B] Options
SSDUPGRADE-240 SSD Upgrade to from 128GB to 240GB $165.00 A
RAMUPGRADE-16 RAM Upgrade, from 8 to 16GB $165.00 A
[C] Accessories
PETABSE Peta POS Base Peta POS Flexible Tilting Base 0-90 degC $176.00 A
[D] Operating System
MUU-00027 WIN-10-IoT-E-2021 Windows 10 IoT Enterprise 2021 for J617/J6821 (pre-installed with Senor drivers) 64 bit $176.00 A
FZM-00025 WIN-11-IoT-E Windows 11 IoT Entry OLC Enterprise (pre-installed with Senor drivers) 64 bit $176.00 A
WIN11PRO WIN-11-Pro Windows 11 Pro EOM (pre-installed with Senor drivers) 64 bit $440.00 A
