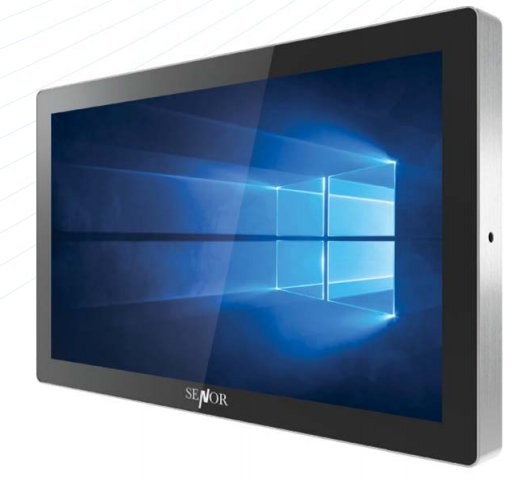

SENOR - rSPOS Series
Industrial Touchscreen System


The SENOR rSPOS System is an Industrial touch screen terminal, with an integrated computer, designed to be suitable for use in a wide range of applications. The rSPOS has been developed to satisfy the need of a reliable system in harsh environments with good ergonomics and work efficiency in any industries. It has been designed for convenience and comfort with a fully water sealed stainless steel casing and fanless cooling, helps you to easily keep it clean.

Features

  • Designed for harsh environment
  • Fully Sealed Stainless Steel Housing (SUS304)
  • IP66 sealed
  • Fanless and Ventless
  • Bezel-less PCT touch screen with Hardened Glass Screen
  • Waterproof Circular connectors
  • 17" or 21" Widescreen TFT LED Backlight Display
  • VESA Mountable
  • 36 Months Return to Base Warranty
  • Extended warranty and on-site maintenance available
Specifications
Physical Characteristics
Model V5 V6
Width 408 mm 535 mm
Height 337 mm 326 mm
Depth 84 mm
Weight 7.6Kg 9.6Kg
Enclosure Stainless Steel SUS 304 Chassis
Mounting VESA 75mm and 100mm
Environmental Characteristics
Operating Temperature 0 to 40°C
Storage Temperature -20 to 60°C
Operating Humidity 20 to 90% (Non-Condensing)
Storage Humidity 20 to 90% (Non-Condensing)
IP RatingIP66
Electrical
Power Source External 100 ~240 V/AC
Power Adaptor Output +12.0 V/DC, 6A
System Configuration
CPU Intel Quad Core Celeron J6412 2.0 GHz(Turbo Boost up to 2.6 GHz) or
Intel Dual Core i3-1215U 1.2G (Turbo Boost upto to 2.6 GHz
RAM 4 GB DDR3L RAM (upto 8GB with J1900, upto 64GB with i3)
Storage 64 GB half-slim SATA SSD
Display 1280 x 1024 pixels 1920 x 1080 pixels
Brightness 350 cd/m2250 cd/m2
Touch Panel Projected capacitive touch(10 point, multi-touch)
Serial 1x DB9
USBUp to 3 x USB 2.0
NetworkUp to 2 x RJ45 10/100/1000 Mbps
Options
Wireless LAN OptionWi-Fi 802.11 b/g/n
Software
Operating SystemPOSReady 7 / Windows 7 Pro / 10 IoT / 10 Pro
Ordering Information and Pricing
Part Number Model Number Description RRP
Inc GST		 T
%
[A] rSPOS 17"
RSPOSJ617 rSPOS J617 Senor rSPOS, 17” TFT LED, projected capacitive touch screen 1280 x 1024, 350 cd/m², Intel Quad Core Celeron J6412 2.0 GHz up to 2.6 GHz 8 GB DDR4 RAM, 1 x M.2 NVMe 2280 SSD $5,060.00 A
RSPOST317 rSPOS T317 Senor rSPOS 17” TFT LED, projected capacitive touch screen 1280 x 1024, 350 cd/m², Intel Hexa Core i3-1215U 1.2 GHz Turbo Boost up to 4.4 GHz 8 GB DDR4 RAM, 1 x M.2 NVMe 2280 SSD $5,775.00 A
[B] rSPOS 21"
RSPOSJ621 rSPOS J621 Senor rSPOS 21.5” TFT LED, projected capacitive touch screen 1920 x 1080, 250 cd/m², Intel Quad Core Celeron J6412 2.0 GHz up to 2.6 GHz 8 GB DDR4 RAM, 1 x M.2 NVMe 2280 SSD $5,280.00 A
RSPOST321 rSPOS T321 Senor rSPOS 21.5” TFT LED, projected capacitive touch screen 1920 x 1080, 250 cd/m², Intel Hexa Core i3-1215U 1.2 GHz Turbo Boost up to 4.4 GHz 8 GB DDR4 RAM, 1 x M.2 NVMe 2280 SSD $5,995.00 A
[C] Options
Communications
S-WFFFBK02200 Wifi LAN Module, 802.11 b/g/n/ac 2T2R + BT 5.0 $209.00 A
Memory - Solid State Drive
SSDUPGRADE-240 SSD Upgrade to from 128GB to 240GB $165.00 A
SSDUPGRADE-480 SSD Upgrade to from 128GB to 480GB $330.00 A
SSDUPGRADE-960 SSD Upgrade to from 128GB to 960GB $660.00 A
Memory - RAM
RAMUPGRADE-8 RAM Upgrade, from 4 to 8GB $165.00 A
RAMUPGRADE-16 RAM Upgrade, from 8 to 16GB $165.00 A
RAMUPGRADE-32 RAM Upgrade, from 8 to 32GB $330.00 A
[D] Operating Systems
MUU-00027 WIN-10-IoT-E-2021 Windows 10 IoT Enterprise 2021 for J617/J6821 (pre-installed with Senor drivers) 64 bit $176.00 A
MUU-00028 WIN-10-IoT-E-2021 Windows 10 IoT Enterprise 2021 for T317T321 (pre-installed with Senor drivers) 64 bit $176.00 A
FZM-00025 WIN-11-IoT-E Windows 11 IoT Entry OLC Enterprise (pre-installed with Senor drivers) 64 bit $176.00 A
FZP-00025 WIN-11-IoT-E-OLC Windows 11 IoT Entry OLC Enterprise for J617/J621 (pre-installed with Senor drivers) 64 bit $264.00 A
WIN11PRO WIN-11-Pro Windows 11 Pro EOM (pre-installed with Senor drivers) 64 bit $440.00 A
