SENOR - SB-S Series
Industrial PC

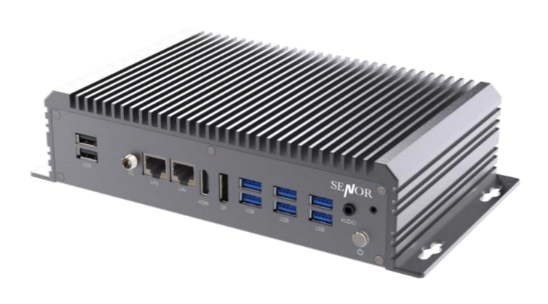

The Senor SN Series of fully featured, small footprint PC's are suitable for a variety of applications encompassing Point Of Sale, Workstation, Instrumentation and general use.

Sealed in a fanless design case the SN Series of products are robust and flexible enabling use in many varied environments from retail to industrial.

Features

  • Compact Size
  • Flexible Mounting Options
  • Multiple Intel Processor Options
  • DDR4 SODIMM Memory Socket
  • PCIe Gen 3x2 NVMe M.2 SSD 2280 SSD Drive Socket
  • Intel PTT TPM 2.0
  • Choice of Operating System.
  • Multiple I/O Ports
  • 12 Month Warranty

Specifications

 SB-SN97SB-S1215USB-S1235USB-S1255U
Physical Characteristics
Width
248mm
Depth
135mm
Height
56mm
Weight
3Kg
Mounting
Wall Mount Mounting Fins
75mm VESA Mount Pattern
DIN Rail Mounting
Power
Power input
12V DC Jack, 60W
Environmental Characteristics
Operating Temperature 0 to 40°C
Storage Temperature -20 to 60°C
Operating Humidity 10 to 90% (Non-Condensing)
Storage Humidity 10 to 90% (Non-Condensing)
System Configuration
Processor
Intel N97 (6M Cache, 3.6GHz)
Intel i3 (10 Cache, 4.4GHz)
Intel i5 (12M Cache, 4.4GHz)
Intel N97 (12M Cache, 4.7GHz)
Hard Drive
1x PCIe Gen 3x2 NVMe M.2 SSD 2280 128GB SSD (Max 1TB)
Memory
1x 4BG DDR SO-DIMM (Max. 16GB)
2x 4BG DDR SO-DIMM (Max. 32GB)
TPM
Intell PTT / TPM 2.0
Interfaces
LAN
2x RJ45 10/100/1000 Mbps
Display
1x HDMI, 1x DP
USB
4x USB 2.0, 4x USB 3.0
2x USB 2.0, 6x USB 3.0
Serial

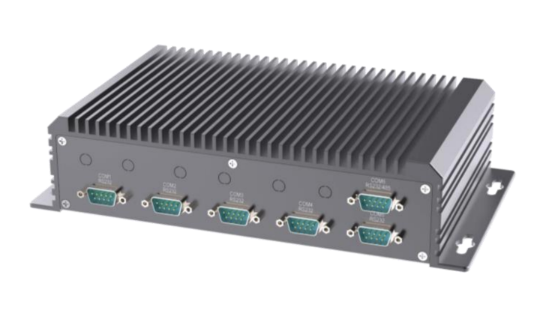

5x DB9 (RS232), 1x DB9 (RS232/RS485)
Audio
1x 3.5mm Line in/Mic Out Jack
WLAN (Option)
802.11 a/b/g/n/ac/ax
Bluetooth (Option)
Bluetooth 4.2
Software
Operating System
Windows 10 IoT / Windows 11 IoT
Certification
EMC/Safety
CE/FCC
Ordering Information and Pricing
Part Number Model Number Description RRP
Inc GST		 T
%
[A] Senor SN Series Mini-PC (does not include Operating System)
SB-SN97 Series
SB-SN97
SB-S12 Series
SB-S1215U
SB-S1235U
SB-S1255U
[B] Options
Memory - SSD
SSDUPGRADE-240 SSD Upgrade to from 128GB to 240GB $165.00 A
SSDUPGRADE-480 SSD Upgrade to from 128GB to 480GB $330.00 A
SSDUPGRADE-960 SSD Upgrade to from 128GB to 960GB $660.00 A
Wireless
WIFI-BT-MOD
[C] Power Supply
PS12RS5000
[D] Operating System
WIN10IOT
WIN11IOT
