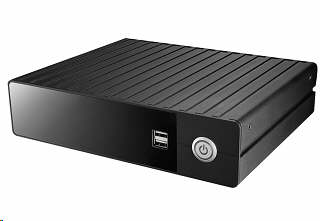

SENOR - Model SPC-3820
Sealed Mini PC



The Senor SPC-3820 is a full featured, small footprint PC suitable for a variety of applications encompassing Point Of Sale, Workstation, Instrumentation and general use.

Sealed in a fanless design case, with a Dual Core Atom Processor and many serial ports, the SPC-3820 is robust and flexible enabling use in retail and industrial environments.

Features

  • Compact Size: 236(w) x 57(h) x 195(d)
  • Flexible Mounting - Vertical or Horizontal
  • Intel Atom 1.8GHz D525 Dual Core Processor
  • 2GB RAM (DDR3 SODIMM)
  • 160GB Hard Disk (2.5" SATA)
  • Shared Video Systems Memory (32 to 224MB)
  • Choice of Operating System.
  • 1 x VGA Port with Support for 1920 x 1200 x 32bit Colors
  • 4 x USB Ports
  • 5 x RS232
  • 1 x Parallel Port
  • 1 x 10/100/1000MB Ethernet Port
  • 1 x Speaker Port
  • 12 Month Warranty

Specifications

Physical Characteristics
Width
236mm
Height
57mm
Depth
195mm
Weight
2.3Kg
Environmental Characteristics
Operating Temperature 0 to 40°C
Storage Temperature -20 to 60°C
Operating Humidity 20 to 80% (Non-Condensing)
Storage Humidity 20 to 80% (Non-Condensing)
Electrical
Power Adaptor External 90 ~264 V/AC
Input +12.0V/DC, 5A
System Configuration
Processor
1.8Hz Atom D525 Dual Core
Hard Drive
160GB
Memory
2GB DDR2 SO-DIMM
System Chipset
Intel 845GSE + ICH8-M
Drive Bays
1 Internal 2 1/2" - For Hard Drive

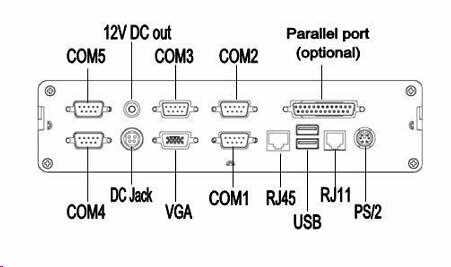

Interfaces
USB
2 Front
2 Rear
Serial
5 x RS-232 DB9
Ethernet
1 x 10/100/1000 Base-T
Parallel
1
Audio
Line Out
PS/2
1 x Keyboard or Mouse
Power Out
1 x 12V DC Socket
Monitor
1 x VGA D-sub 15
Cash Drawer
1 x RJ12
Ordering Information and Pricing
Part Number Model Number Description RRP
Inc GST		 T
%
[A] Senor Mini-PC (does not include Operating System)
SPC-3820 SPC-3820 INTEL Dual Core Atom 1.8GHz, 4GB DDR3 RAM, 2.5” 320GB SATA HDD #VALUE! A
[B] Operating System
WINXPPRO
POSREADY2009
WIN7PRO32OEM
