SENOR - V-PAD
Tablet

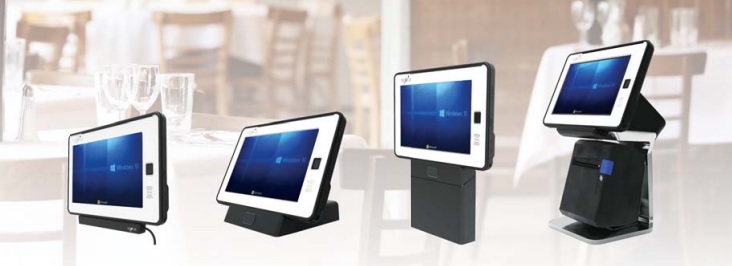

The SENOR V-PAD is a robust POS Tablet designed to be suitable for use in a wide range of applications.

Senor's V5PAD has been designed with a number of optional peripherals to enable flexibility of use in a wide range of applications. From integrated readers to flexible docking options with multiple I/O choices the V5PAD, with it's 10.1" multi-touch screen, is suitable for use in almost any customer service role.

Features

  • Robust design for retail and hospitality with 1.5m drop rating
  • Tablet has IP54 dust/water resistance
  • Ergonomic hand strap
  • Versatile docking configurations
  • 7900mAh battery for upto 7 hours use
  • 10.1" multi-touch screen with 1280x800 pixel resolution
Specifications
Physical Characteristics
Width 296 mm
Height 206 mm
Depth 26 mm
Weight 1.2Kg
Mounting Options Desk Stand, Wall Mount Stand, WP Base
Environmental Characteristics
Operating Temperature 0 to 40°C
Storage Temperature -10 to 60°C
Operating Humidity 10 to 90% (Non-Condensing)
IP RatingIP54
Electrical
Power Source External USB
(USB charge Docking connector supplied with tablet)
Power Input USB 5V, 2A
System Configuration
CPU Intel Atom x5-Z8350 1.44 GHz, up to 1.92 GHz
RAM 4 GB DDR3L-RS RAM
Storage 64 GB eMMC
Display 10.1” TFT LCD / 1280 x 800 pixels
Brightness 300 cd/m2
Touch Panel Projected capacitive multi-touch (10 Point)
Tablet Ports 1 x USB 2.0, 1 x USB 3.0 (micro B),1 x 1 W built-in speaker, 3.5 mm earphone jack, 802.11 b/g/n + Bluetooth 4.0
Docking Station Ports 4x USB 2.0, 1x DB9 Serial, 1x TJ12 24V Cash Drawer Port, 1x RJ45 gigabit Ethernet
WP Base Ports 2x USB 2.0, 2x DB9 Serial, 1x RJ45 Gigabit Ethernet
Options
Tablet2D Barcode Reader, Magnetic Card Reader or Mifare Card Reader, Fingerprint Reader
WP Base7" Customer Facing Touch Display or Mifare Card Reader
Software
Operating System10 Enterprise IoT
Ordering Information and Pricing
Part Number Model Number Description RRP
Inc GST
T
%
[A] V5PAD
V5PAD V5PAD Senor V5PAD, 10.1” LED, 1280 x 800, 10-point multi-touch Intel Quad Core Atom x5-Z8350 1.44 GHz Turbo Boost up to 1.92 GHz, 4 GB RAM, 64 GB eMMC storage Built-in BT, Wi-Fi, GPS & G-sensor *Tablet charges via USB charger/docking station only* $1,760.00 A
[B] Options
V5PAD2DSCANNER Image Barcode Scanner, 2D $352.00 A
V5PADMSR Magnetic Card Reader, 3 Track $209.00 A
V5PADRFID RFID 13.56 MHz reader/writer $209.00 A
V5PADFPR Fingerprint Reader $110.00 A
[C] Operating System
WIN10EMB
[D] Chargers/Docks
V5PADUSB
V5PADDS
V5PADWMS
V5PADWP
[E] Dock Options
MK-0BSI5ADM01
VSPADSCR
