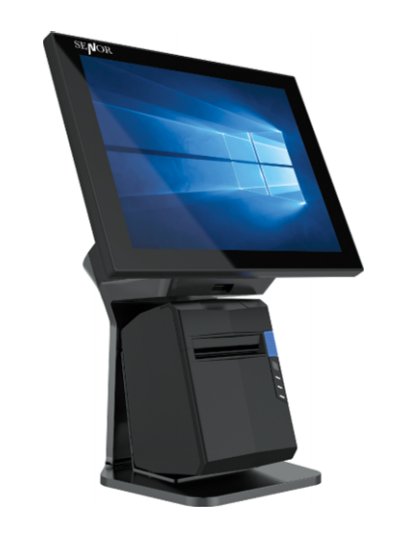

SENOR - V-POS-WP Series
Touchscreen System


The SENOR V-POS-WP Series is a robust POS touch screen with an integrated computer, integrated into a raised stand, designed to be suitable for use in a wide range of applications.

Senor's V-POS series feature a brand new concept with an ultra-narrow bezel-less screen and sleek exterior design, with interchangeable frame and casing to match the retailer’s style. The V-POS-WP Series are an energy-efficient solution with low power consumption on a high-performing platform. The CPU consumes less power, generates less heat and helps to keep our environment green.

Features

  • Sleek design for retail and hospitality
  • Bezel-less PCT touch screen with Hardened Glass Screen
  • Interchangeable frame and casing to match the retailer’s style
  • Projected capacitive touch (P-CAP)
  • 90 Degree Tilt Adjustment
  • Optional 7" Customer Touch Display
  • Optional Integrated 2D Reader
  • Mounting Space for Integrating a Printer
  • 36 Months Return to Base Warranty
  • Extended warranty and on-site maintenance available
Specifications
Physical Characteristics
Model - table to be completed V5WP-J1900 V5WP-i3 V6WP-i5 V6WP-i7
Width 366 mm
Height 495 mm
Depth 245 mm
Weight 10Kg
Chassis Die-cast Aluminium
Mounting Integrated Stand
Environmental Characteristics
Operating Temperature 0 to 40°C
Storage Temperature -20 to 60°C
Operating Humidity 0 to 80% (Non-Condensing)
Storage Humidity 10 to 90% (Non-Condensing)
IP RatingIP54
Electrical
Power Source External 100 ~240 V/AC
Power Adaptor Output +24.0 V/DC, 5A
System Configuration
CPU Intel Quad Core Celeron J1900 2.0 GHz, up to 2.42 GHz Intel Dual Core i3-6100U 2.3 GHz Inte Core i5-6500TE 2.3GHz Intel Core i7-6700TE 2.4GHz, Turbo upto 3.4GHz GHz
RAM 4 GB DDR3L RAM (upto 8GB) 4 GB DDR4L RAM upto 32GB)
Storage 128 GB M.2 SATA SSD 128 GB M.2 SATA SSD (Supports RAID 0/1/5/10)
Display 1024 x 768 pixels
Brightness 300 cd/m2350 cd/m2
Touch Panel Projected capacitive multi-touch
Integrated Ports 2x DB9 Serial
1x Drawer Kick
4x USB
1x VGA
1x RJ45 LAN
Mic/Audio
DC-in DC-out
2x DB9 Serial
1x Drawer Kick
5x USB
1x VGA
2x RJ45 LAN
Mic/Audio
, DC-in DC-out
Type A(Standard): 2x DB9 Serial, 1x Drawer Kick, 6x USB, 1x HDMI, 2x RJ45 LAN, Mic/Audio, DC-in DC-out
Type B:3x DB9-S, 1x Drawer Kick, 6x USB, 2x RJ45 LAN, Mic/Audio, DC-in DC-out
Type C:2x DB9-S, 1x RJ45 Serial, 6x USB, 1x HDMI, 2x RJ45 LAN, Mic/Audio, DC-in DC-out
Type D:3x DB9-S, 1x RJ45 Serial, 6x USB, 2x RJ45 LAN, Mic/Audio, DC-in DC-out
Options
OptionsWi-Fi 802.11 b/g/n/ac & Bluetooth, 3T MCR, LF RFID Reader, HF RFID Reader, HF RFID Reader/Writer, Rear Mount 7" Customer Touch Display, Integrated 2D BCR
Software
Operating SystemPOSReady 7 / Windows 7 Pro / 10 Enterprise IoT / 10 Pro
Ordering Information and Pricing
Part Number Model Number Description RRP
Inc GST
T
%
[A] v5POS-WP
V5WPJ19VAPCT
V5WPX35VAPCT
[B] V6WPX55VAPCT
V6WPX75VACPT
[C] Options
MK-BKV5AWF00
SSDUPGRADE
RAMUPGRADE
MK-BSI5ADM01 Touch Screen Kit, 7 PCT, 800x480 $517.00 A
VXWPF2DSCANNER
VXWPR2DSCANNER Integrated 2D barcode scanner kit, facing down $583.00 A
[D] Operating System
POSREADY7
WIN7PRO
S-OSFFAA01300
S-OSFFAA01200
WIN10PRO
