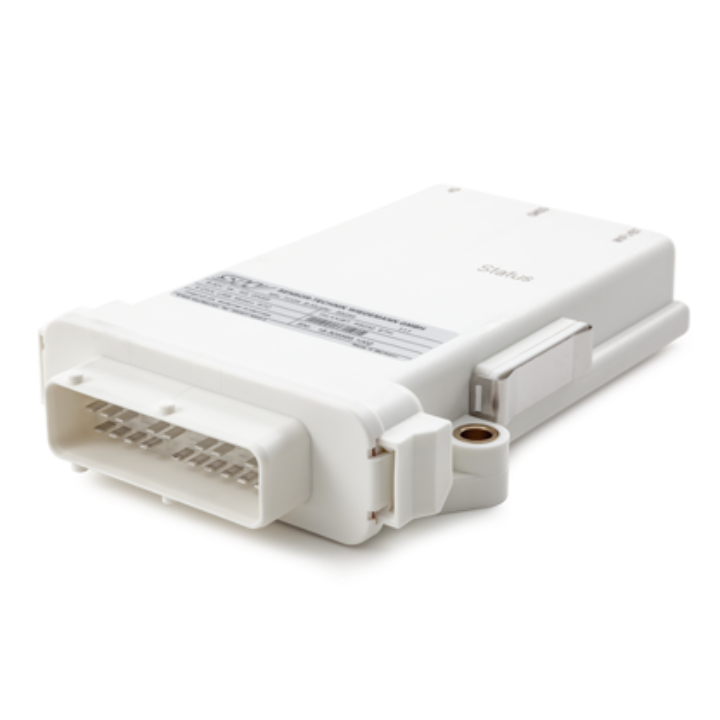

STW - TCG-4Lite
Data Module
 |
The STW TCG-4lite is a versatile connectivity and data management module. It can record and process machine data and network mobile machines with each other and with the internet. The module features CAN, USB, and IoT technologies, and an integrated GNSS receiver for precise machine positioning. It also supports edge computing with its high-performance processor and substantial storage capacity. The data module is built for robustness and reliability, complying with multiple standards, making it suitable for conditions such as high temperatures and vibrations. Its Linux operating system and comprehensive software libraries facilitate rapid and independent application development. Additionally, it is designed for low power consumption, with standby and normal operation modes for optimised efficiency. Features
|
|---|
Specifications
| Physical Characteristics | |
|---|---|
| Dimensions | 183 x 117.4 x 36 mm |
| Connectors | Tyco, 3 rows, female 29pin |
| Power | |
| Input | 9...32V DC |
| Consumption | Standby < 1mA (@12V) Normal operations 230mA (@12V) |
| Hardware | |
| Processor | 32bit controller, NXP i.MX 6UltraLite, 696MHz |
| RAM | 512 MB DDR3L-SDRAM |
| Memory | 8GB |
| Software | |
| Operating System | Embedded Linux |
| Communications/Interfaces | |
| WWAN | Supports 4G, LTE |
| GPS | GPS, GLONASS, BeiDou, Galileo, QZSS, 1Hz update rate |
| RS232 | Serial interface with programmable baud rate |
| USB | USB 2.0 |
| Ethernet | Supported |
| SIM | 2FF Mini SIM card, 2FF eSIM card |
| Part Number | Model Number | Description | RRP Inc GST |
T % |
|---|---|---|---|---|
| [A] STW TCG 4lite | ||||
| TCG4-Lite | STW TCG-4-Lite, Global (no Wifi, only LTE) | $1,067.00 | C2 | |
