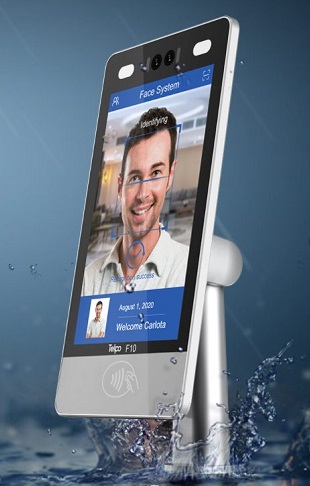

Telpo - F10
Facial Recognition Terminal


The Telpo F10 Facial Recognition Terminal has been designed to provide a superior solution for any environment in which a business requires quick and reliable biometric identity verification.

Suitable for office buildings, hotels, retail stores, campuses, communities, airports, banks and many other locations, the F10 provides a complete set of solutions, implementing hardware and software into a flexible platform, for almost any environment requiring comprehensive access control.

Features

  • Android Terminal
  • 10" Touch Display
  • NFC Reader
  • IP66 Protection
  • Automatic Biometric Identification
Specifications
Physical Characteristics
Height 315mm
Width 167mm
Depth 23mm
Environmental Characteristics
Operating Temperature 5 to 40C
Storage Temperature 0 to 45C
Electrical
Power12V/DC, 2A
System Configuration
CPU Octa-Core 1.8GHz Processor
Operating System Android 9.0 or above
Display Screen 10", 800x1280 pixels
Memory 2/4GB DDR RAM, 16/64GB eMMC
Cameras Dual-lens Camera (RGB+IR), 2MP+1.3MP
Single-lens Camera (RGB), 2MP (Optional)
3D Depth Sensing Camera (Optional)
Contactless Card Reader ISO14443 Type A/B, ISO18092 Compliant HID Cards (Optional)
Standard Ports 1 DC Port, 1 RJ45 Ethernet, 1 micro USB, 1 Wiegand Input, 1 Wiegand Output, 1 RS485, 1 RS232, 1 Relay,1 USB TypeA
Wireless WiFi, Bluetooth
Indicators White/Green Red and Blue LED
Audio Digital Audio Speaker, Microphone
Ordering Information and Pricing
Part Number Model Number Description RRP
Inc GST
T
%
[A] Telpo F10 Facial Recognition Tablet
F10-0001 F10 Telpo Facial Recognition Tablet, Includes 2GB/16GB, 10, Androd 9.0, dual camera, wifi, bluetooth, ethernet, NFC $1,683.00 A
F10-0002 F10T Telpo Facial Recognition Tablet, Includes 2GB/16GB, 10, Androd 9.0, dual camera, wifi, bluetooth, ethernet, NFC & Temperature $1,815.00 A
[B] Mounting Options:
TC-FH01 FH01 Wall Mounted Stand $66.00 A
TC-FH02 FH02 Stand for Turnstile $88.00 A
TC-FH12 FH12 Desktop Stand for light $220.00 A
TC-FH22 FH22 Floor stand without light $220.00 A
