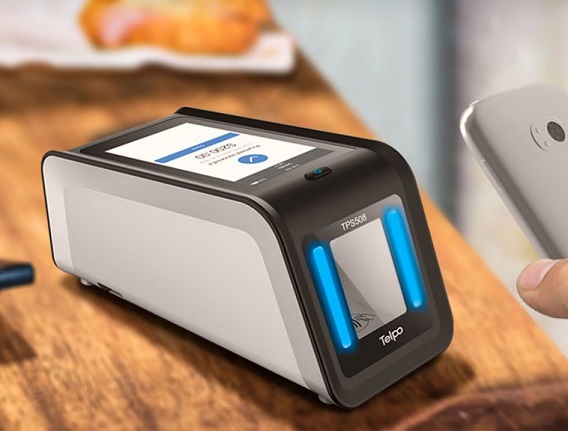

Telpo - TPS508
Mobile Retail POS Validator


The Telpo TPS508 is a fully functional mobile Validation and "Point Of Service" device with a small footprint and stylish appearance, suitable for use in any retail environment. Designed to be mobile and as flexible as possible, the TPS508 will provide you with the tools to setup any type of Validation or Service processing station.

Whether you are processing sales at a static counter or at a remote sales station like a pop-up store the TPS508 has you covered. Be it reading QR-Codes from a phone or a ticket, an NFC tag for entry or membership, or processing a transaction on your Android App.

Features

  • Android Terminal
  • 5" Touch Display
  • NFC Reader
  • High speed QR-Code Reader
  • Optional Inbuilt 2" Thermal Docket Printer
  • Optional Battery
  • Optional LTE 4G Support
  • Voice support
  • Multiple communication options including GPS
Specifications
Physical Characteristics
Height 285mm
Width 168mm
Depth 95mm
Environmental Characteristics
Operating Temperature -20 to 50C
Storage Temperature -25 to 60C
Electrical
Power9-40V/DC
System Configuration
CPU Quad-Core 1.1GHz Processor
Operating System Android 7.0 or above
Display Screen 5", 1280x720 pixels
Memory 1/2GB DDR RAM, 8/16GB eMMC
Barcode Reader Soft Decoding
Hard Decoding (Optional)
Contactless Card Reader ISO14443 Type A/B,
Mifare EMV Contactless L1,
Paywave,
Paypass (Optional)
Calyso(Optional)
HID(Optional)
Standard Ports Circular Connector:1 RS232+ 1 RS485
Circular Connector:1 DC Charge
1 USB-A, 1 Micro USB
2 SIM, 2 SAMs
Ordering Information and Pricing
Part Number Model Number Description RRP
Inc GST
T
%
[A] Telpo TSP530
TPS530-0001 TPS530-QN00 Telpo Wall/Pole Mount, Validator Terminal, Includes: 5 Android 7.0, 1GB/8DB Mem, WiFi, BT, 4G, QR Code Scanner, NFC $880.00 A
TPS530-0002 TPS530-QNCT Telpo Wall/Pole Mount, Validator Terminal, Includes: 5 Android 7.0, 1GB/8DB Mem, WiFi, BT, 4G, QR Code Scanner, NFC, Camera and Temperature Measuring $1,001.00 A
