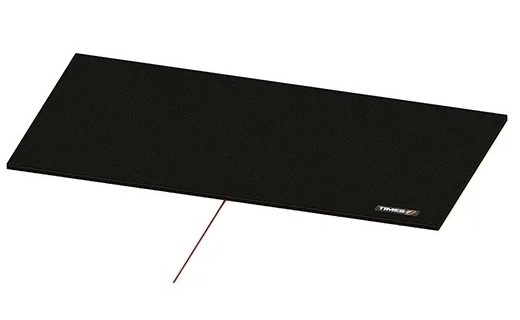

Times7 - A5060
UHF RFID Slimline Antenna


The Times-7 Slimline A5060 is an ultra-low profile design with maximum readability in a densely populated tag environment. IP65 rated for permanent outdoor use and built to the Times-7 high standard for quality and robustness, the circularly polarized A5060 creates a new benchmark for multi-purpose UHF RFID antennas.

Applications

  • RFID deployments for general portals
  • Rugged design suitable for any application

Specifications

Physical Characteristics
Dimensions 600 mm x 300 mm x 8 mm
Weight 1.5kg
Mounting Flush Mount with Integrated Mounting Holes in each corner, rack mount accessory also available
RF Connection SMA Female side connector
Enclosure ABS
Environmental
Operating Temperature -20 to 55°C
Storage Temperature -30 to 65°C
Ingress Protection Rating IP65
Antenna Characteristics
Frequency
(Select one band)
865-868 MHz (Europe)
902-928 MHz (US - Australia)
Polarization Circular
Gain Farfield Gain: 10.5dBiC
Farfield 3dB beam width 25° in XZ-plane, 60° in YZ-plane
Max Power 6W



Ordering Information and Pricing
Part Number Model Number Description RRP
Inc GST
T
%
[A] Times-7 A5060 UHF Slimline Antenna
Multi-Purpose
T7-71875 A5060-C-SMA-J300 RFID Antenna IP65, 600 x 300 x 8 mm, 10.5dBi CP,SMA Female/Jack Lead (Multi-Purpose) $484.00 A1
[B] Co-ax Cables
SMA to TNC (RG)
2-9003-020-4 CA9003-2 Coax Cable, RG58, SMA - RevP TNC 2m $59.40 U
2-9003-030-5 CA9003-3 Coax Cable, RG58, SMA - RevP TNC 3m $150.70 U
2-9003-040-9 CA9003-4 Coax Cable, RG58, SMA - RevP TNC 4m $88.00 U
2-9003-050-1 CA9003-5 Coax Cable, RG58, SMA - RevP TNC 5m $155.10 U
2-9003-060-0 CA9003-6 Coax Cable, RG58, SMA - RevP TNC 6m $116.60 U
2-9003-080-2 CA9003-8 Coax Cable, RG58, SMA - RevP TNC 8m $127.60 U
SMA to SMA
2-9022-010-2 CA9022-1 Coax Cable, RG316, SMA Plug/SMA Plug $53.90 A
2-9022-030-0 CA9022-3 Coax Cable, RG316, SMA Plug/SMA Plug -3m $80.30 A
2-9022-050-8 CA9022-5 Coax Cable, RG316, SMA Plug/SMA Plug -5m USE 2-9019 $144.10 A
[C] Accessories
T7-72400 A5010S-MNT-CPB A5010 Connector Protection Backplate $154.00 A1
Mounting Hardware
