Times7 - A8060
UHF RFID Doorframe Antenna
 |

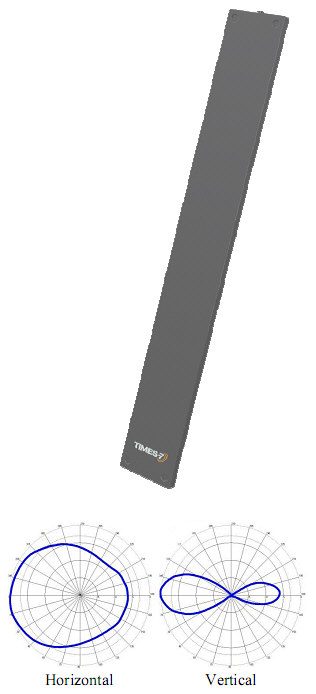

The Times-7 A8060 is an ultra-low profile linear polarised flat panel antenna. Its total thickness is just 8 mm. Applications
|
|---|
Specifications
| Physical Characcteristics | ||
|---|---|---|
| Dimensions | 650 mm x 86 mm x 8 mm | |
| Weight | 500g | |
| Mounting | Integrated Mounting Holes in each corner | |
| RF Connection | SMA Female Connector on 300mm cable | |
| Enclosure | Kydex Radome Material | |
| Environmental | ||
| Operating Temperature | -20 to 55°C | |
| Storage Temperature | -30 to 65°C | |
| Ingress Protection Rating | IP65 | |
| Antenna Characteristics | ||
| Frequency (Select one band) | 865-868 MHz 902-928 MHz (Australia) | |
| Polarization | Linear | |
| Gain | Farfield Gain: 5dBi | |
| Farfield 3dB beamwidth | 30° in Vertical, 110° in Horizontal | |
| Part Number | Model Number | Description | RRP Inc GST |
T % |
|---|---|---|---|---|
| [A] Times-7 A8060 UHF Door Frame Antenna | ||||
| T7-71416 | A8060-SMA-J300 | SlimLine UHF Door Frame Atnenna, 650 x 86 x 8 mm, 5dBi LP(Hor), Adhesive Foam, SMA Jack Line 300mm on side) | $374.00 | A1 |
