Troi - RW Series
UHF RFID Industrial Tag - Scaffold Wrap

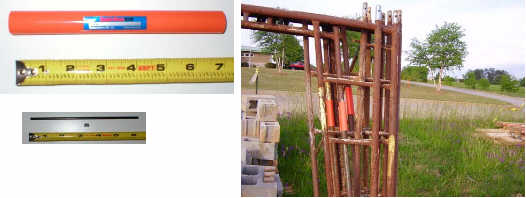

The TROI RW Series of Scaffold Wrap ("Patents Pending") is a plastic coil wrap containing a Mini Metal UHF Tag (RW-M-4001) or Non-Metal UHF Tag (RW-N-2001) designed to be easily wrapped around steel scaffolding or poles for permanent identification. Attachment is simply achieved with adhesive tape to ensure rapid closure. Excellent read/write performance on any surface.

Features

  • Simple Wrap Tag
  • Includes self adhesive strip
  • Consistent UHF range performance
  • EPC Class 1, Gen G2 (C1G2) Protocol
  • Available for Metal and Non Metal poles
  • Delivers superior performance on a variety of materials
  • Reusable for lower cost per use

    • Specifications

    Supported StandardEPC Gen 2 / ISO 18000-6c Compliant
    Resonance Frequency902 - 928 MHz
    Memory96 bits
    Nominal Read DistanceUpto 3.0m under FCC Part 15 (36 dBm EIRP))
    Write DistanceUpto 0.3m under FCC Part 15 (36 dBm EIRP))
    Dimensions:
    Plastic Pole Mount
    Metal Pole Mount
    203mm x 178mm x 0.5 mm
    203mm x 178mm x 7.0 mm
    Operating temperature -20°C to +65°C
    Tensile Strength(psi)ASTM-D638 6000 min
    WrapUV Protected PVC
    Ordering Information and Pricing
    Part Number Model Number Description RRP
    Inc GST    		 T
    %
    [A] Troi Mount On Metal Wrap Tag
    9-9820-480-0 RW-M-4001-I Rapid Wrap, Metal $20.46 A6
    [B] Troi Non-Mount On Metal Wrap Tag
    9-9820-490-9 RW-N-2002-I Rapid Wrap, Non Metal $19.91 A6
    9-9820-500-5 RW-N-6001-I Rapid Wrap, Non Metal $14.63 A6
    Contact UMD Sales for volume pricing.
