Troi - WoW Tag
UHF RFID Industrial Tag - Weldable option World Tag

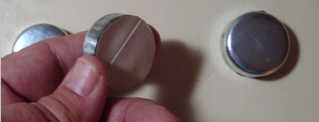

The TROI Weldable option World series Tags ("Patents Pending") are a Metal mount, METAL tag, employing the rugged MSOP (chip). Embedded in a stainless steel case and a super high temperature ceramic. These tags have excellent read/write performance on any metal surface and exceptional performance in harsh and high temperature environments. These Weldable option World Tags can be welded onto any metal surface and due to a novel antenna design is readable from any direction.

Features

  • Ceramic encapsulated for harsh environments
  • Stainless steel case for welding
  • Small size
  • Readable in 360 degrees
  • EPC Gen 2 / ISO 18000-6c Compliant

    • Specifications

    Supported StandardEPC Gen 2 / ISO 18000-6c Compliant
    Resonance Frequency902 - 928 MHz
    Memory96 bits
    Nominal Read DistanceUpto 3.0m under FCC Part 15 (36 dBm EIRP))
    Write DistanceUpto 0.3m under FCC Part 15 (36 dBm EIRP))
    Dimensions Ø 32mm x 6.5mm
    Operating temperature -40°C to +200°C
    (85°C 30 days; Shock 85°C/-25°C 1 week)
    (160°C 30 days; 125°C-100% Humidity 7 days; High pressure 100% humidity 125°C 7 days, 200°C 30 days))
    Ordering Information and Pricing
    Part Number Model Number Description RRP
    Inc GST    		 T
    %
    [A] Troi WoW Series Stainless Steel, Ceramic Encapsuled Weldable Tags
    Troi Weldable Armored Bubble Tag:
    9-9820-680-4 Armoured Buble-100c Weldable Option World tag, Armored Bubble, 100degC $22.66 A6
    Weldable Round Tag:
    9-9820-672-9 WoW-1 Micro Weldable Option World tag, Mini Rectangle $30.80 A6
    Weldable Square Tag:
    9-9820-670-5 WoW-1 Weldable Option World tag, Rectangle (56x25x13mm) $30.14 A6
    Weldable Square Tag with Strapping Slot:
    9-9820-671-2 WoW-1-S Weldable Option World tag, Rectangle with Slot for Band Strap $34.43 A6
