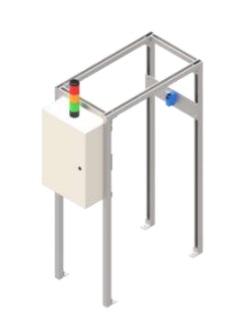

UMD Model A100 Series
UHF RFID Tunnel Reader Assembly


The UMD Model A100 Series of RFID Tunnel Portal Assemblies, are UHF RFID reading system partically designed to straddle converyor belt system making for easy deployment as equipment can be pre-assembed.

The A100 is part of the UMD A1 Series of RFID industrial portals, assembled from Unistrut mounting system, aluminum panels and control boxes. Its modular design enables the rapid design and deployment of common industrial RFID reading portal system, and canb be customised for each installation.

  • Complete UHF RFID portal and reader
  • Reader Sub-Assembly based on UMD A120 Series of Control Panels (600 x 400 x 200 mm)
  • Optional Barcode Scanning
  • Optional Optical Sensor

Specifications

Structure
Type Unistrut P1000 Channel – Heavy Duty
Size 41 x 41 mm
Material Hot Dipped Galvanised
Dimensions
Width 482mm
Height/Depth See Ordering Details



A100 Configuration Guide

A100B







RFID Bollard Reader Assembly

 Height

100



1000mm

120



1200mm

150



1500mm

Xxx



xxx0mm

 Width

080



800mm

100



1000mm

Xxx



xxx0mm



Hardware Option

00

Standard (side braces and L bracket for securing to floor)



A100B









Ordering Information and Pricing
Part Number Model Number Description RRP
Inc GST		 T
%
[A] UMD Model A100 Series UHF RFID Tunnel Portal Assembly
A100B15008000 A100 UMD RFID Tunnel Portal Assembly - 1500 x 800 x 482mm (suits A123 RFID Control Box) $594.00 U1
[B] Accessories/Peripherals
Barcode Scanner
A100-AC21 3320-Kit 3320 Barcode Scanner Kit. Includes Cable. $2,552.00 L1
PE Sensor
QS18VP6LPQ8-KIT-S02 QS18VP6LPQ8-KIT-S02 Banner QS18VP6LPQ8 Sensor, with Bracket, Reflector, Straight Cable, 2m $220.00 C3
