UMD Model A103 Series
UHF RFID Bollard Reader Assembly

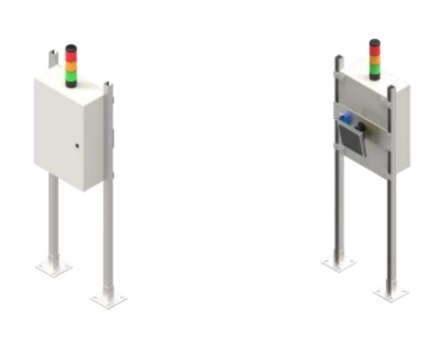

The UMD Model A103 Series of RFID Bollard Reader Assemblies are RFID mounting hardware designed to accommodate UMD’s A120 Series of RFID Control Boxes and a single RFID antenna.

The systems is designed to be placed near conveyor systems and is self contained.

The A103 is part of the UMD A1 Series of RFID industrial portals, assembled from Unistrut mounting system, aluminum panels and control boxes. Its modular design enables the rapid design and deployment of common industrial RFID reading portal system, and is customised for each installation

  • Free standing
  • Designed to support the UMD A120 Series of RFID Control Boxes
  • Include RFID antenna and mounting
  • Slotted Channels enable attachment additional brackets and equipment (eg. Optical sensors)

Specifications

Structure
Type Unistrut P1000 Channel – Heavy Duty
Size 41 x 41 mm
Material Hot Dipped Galvanised
Mounting
Standard (S) RAM-B-201
Long (C) RAM-B-201-C
Short (A) RAM-B-201-A



A103 Configuration Guide

A103B











RFID Bollard Reader Assembly

 Height

10



1000mm

12



1200

15



1500

 Width

4



40mm



Base Mounting Options

B



Base Plate, 150 x 150 mm (P2072)



Antenna Mounting Option

D



Direct to Brace

R



RAM-201-A (short) Adjustable



RFID Antenna Type

-IA33E

Intermec IA33E, 6db Patch Cicrular, Industrial, 196x196mm, N/RP-Jack

-A5010

Times-7, A5010, 6db Patch Circuular, 250x250mm, SMA Jack



A103B













Ordering Information and Pricing
Part Number Model Number Description RRP
Inc GST		 T
%
[A] UMD Model A103 Series RFID Bollard Reader Assembly
A103
