UMD - Assembly A250 UMD RFID RACE Solutions

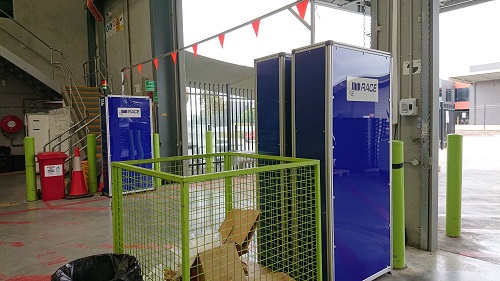

	The UMD Model A250A Series of RFID RACE solutions, are complete standalone systems which integrate intelligent RFID interrogators, with embedded controllers, antennas and electronic components enclosed in an industrial housing. The solution is based on the RACE architecture (RFID Advance Controller for Embedded Application) where an embedded controller is used to manage the operation of the RFID reader and additional functionality. The RACE solution provides the functionality to integrate with different RFID reader manufacturers. The RFID RACE solution can be used either as a stand alone solution or integrated into any number of web services. Using the RFID RACE dashboard operators are able to monitor and view the operation of the system in real time. Features Modular housing design Based on RFID RACE Architecture Integrated RFID Reader Integrated antennas Optional Integrated motion sensors and Light Stack User Interface-Dashboard

The UMD Model A250A Series of RFID RACE solutions, are complete standalone systems which integrate intelligent RFID interrogators, with embedded controllers, antennas and electronic components enclosed in an industrial housing.

The solution is based on the RACE architecture (RFID Advance Controller for Embedded Application) where an embedded controller is used to manage the operation of the RFID reader and additional functionality. The RACE solution provides the functionality to integrate with different RFID reader manufacturers.

The RFID RACE solution can be used either as a stand alone solution or integrated into any number of web services.

Using the RFID RACE dashboard operators are able to monitor and view the operation of the system in real time.

Features

Modular housing design
Based on RFID RACE Architecture
Integrated RFID Reader
Integrated antennas
Optional Integrated motion sensors and Light Stack
User Interface-Dashboard

Specifications

Physical
Dimensions	900 mm Wide x 2000 mm High x 300mm Deep
Material	Al Extrusion
Facia	Acrylic
Weight	Approx 60Kg

A250 UMD RACE Solution

A250A									UMD RACE Solution
	Style
	0								Standard Style, 900 x 2000 x 300 mm
	D								Standard Style, Dual Sided, (Back to Back)
	X								Custom Design - Defined per order
		RFID Reader Assembly
		00							No Reader
		N0							No Reader, with RACE Controller
		N1							No Reader, with RACE Controller & RACE Dashboard
		Z0							With FX7500 RFID Reader & RACE Software	A120B8Z4L1A000R0
		Z1							With FX7500 RFID Reader & RACE+Dashboard	A120B8Z4S1A000RD
		Z2							With Zebra FX9600 4 Port RFID Reader & RACE Software	A120B8Z5L3T000R0
		Z3							With Zebra FX9600 4 Port RFID Reader & RACE+Dashboard	A120B8Z5S1T000RD
		Z4							With Zebra FX9600 8 Port RFID Reader & RACE Software	A120B8Z5L1A000R0
		Z5							With Zebra FX9600 8 Port RFID Reader & RACE+Dashboard	A120B8Z8S1T000RD
		H0							With Honyewell RFID Reader & RACE Software
		R6							With Impinj R700 RFID Reader & RACE Software
		R7							With Impinj R700 RFID Reader & RACE+Dashboard
		Q1							With Turck Q180 RFID Reader & RACE Software	A120B8Q1L3T000R0
		DU							With Denso UR40 RFID Reader & RACE Software	A120B800L30T000R0
			Installed Antenna's
			0						No Antennas
			1						1 Antenna
			2						2 Antenna's
			3						3 Antenna's
				Antenna Type (inc Mount and Cables)
				0					Null
				1					Times-7 T7-71875 A5060 Slimline 800x600x8mm
				2					Times-7 Special
				3					Turck Q280
				4					Denso External Antenna and Cable
					Light Stack Option
					0				No Light Stack
					3				3 Lights - RGB	TL70-RRR-RA-Q
					4				4 Lights - RGYB	TL70-RRRR-RA-Q
					5				3 Lights - RGB with Audible	TL70-RRRA-RA-Q
					D				RGB Dome Light	K50L2RGB7Q
						Internal Options
						0			No Option
						M			Microtik 4G	RB912R-2nD-LTm+R11e-LTE
							Power / Connection Panel Options
							0		No Connection - Internally Wired
							1		3 Pin Power Inlet (male)
							2		3 Pin Power Inlet (sealed)
							3		3 Pin Power Inlet (male) Plus RJ45 (Sealed)
							4		IEC Panel Mount
								Options
								00	Standard - no foot mounting
								L2	Foot Mounting - with L Bracket x 2	ITEM-0.0.265.44
								C4	Wheel Locking Casters x 4

A250A

**Ordering Information and Pricing**
Part Number	Model Number	Description	RRP Inc GST	T %
[A] UMD A250A Series - UMD RACE Solution (not all configurations shown)
Zebra RFID based Portals
A250A0Z01100000	A250A	UMD RACE Dock Portal, Zebra 4 Port, RACE Controller, 1xA5060		U
A250A0Z02100000	A250A	UMD RACE Dock Portal, Zebra 4 Port, RACE Controller, 2xA5060		U
A250A0Z221402C4	A250A	UMD A250A RFID RACE Panel Portal with FX9600-8 2 antenna (A5060), 4 Way light stack, Locking Caster Wheels		U
A250A0Z11100000	A250A	UMD RACE Dock Portal, Zebra 4 Port, RACE Controller & Server, 1xA5060		U
A250A0Z12100000	A250A	UMD RACE Dock Portal, Zebra 4 Port, RACE Controller & Server, 2xA5060		U
A250A0Z121501C4	A250A	UMD RACE Dock Portal, Zebra 4 Port, RACE Controller & Server, 2xA5060, 3 Pin Pwr, Casters		U
A250A0Z121503L2	A250A	UMD RACE Dock Portal, Zebra 4 Port, RACE Controller & Server, 2xA5060, Sealed 3 Pin Pwr, Casters		U
A250A0Z111503C4	A250A	UMD Race Portal with Dual Controller, Zebra 4 port, 1 x A5020 Antenna , Light Stack + Audio, 3pin power + RJ45 with Castors mounting		U
A250A0Z111503L2	A250A	UMD RACE Dock Portal, Zebra 4 Port, RACE Controller & Server, 1xA5060, 3 Pin Pwr, L Mounting		U
A250A00011000L2	A250A	UMD RACE Dock Portal, Zebra 4 Port, RACE Controller & Server, 1xA5060, 3 Pin Pwr, L Mounting		U
A250A0Z311503C4	A250A	UMD A250A RFID RACE Panel Portal with FX9600-4 - Master (1 antenna)		U
A250A0Z5115M3L2	A250A	UMD A250A RFID RACE Panel Portal with FX9600-4 & 2 * IE33		U
Honeywell RFID based Portals
A250A0000000000	A250A	UMD RACE Dock Portal, Frame Assembly Only (with panels)		U
A250A0001100000	A250A	UMD RACE Dock Portal, Single Antenna		U
A250A0H02130000	A250A	UMD RACE Dock Portal, with IF2 RFID Reader, 2 Antennas and 3 Way light stack		U3
Turck RFID based Portals
A250A0Q1235M2L2	A250A	UMD RACE Portal, Turck Q180, 2 xQ280 Antenna, 3 way light stack and Audible, RACE Contorller, Ethernet, 4G and Wifi		U
A250A00023000L2	A250A	UMD RACE Portal, 2 xQ280 Antenna		U
[B] Antenna Portals Only
A250A0002100L2
A250A00011000C4	A250A	UMD RACE Panel Portal, Slave (1 Antenna), Castor Wheels		U
A250A00021000L2	A250A	UMD RACE Panel Portal, Slave (2 Antennas), L-Bracket Feet		U
[C] Accessories
A250A-AC10-500.100	A250A	UMD RACE Dock Portal - Cable Duct System Assy, Width (cm) x height (cm)	$473.00	U
A250A-AC11-2600-2	A250A	UMD RACE Dock Portal Accessory - Straight Cable Duct System Arm x 2, 2600 mm with RF Cable and Bulkhead	$880.00	U
A250A-AC20L-060.100	A250A	UMD RACE Dock Portal - Optical Sensor Arm Assy, Width (cm) x Height (cm) - Left Side Mount	$374.00	U
QS30LPQ-KIT-S02	QS30LPQ-KIT-S02	QS30LPQ Sensor, with Bracket, Reflector, S/T Cable, 2m	$338.80	C3
QS30LPQ-KIT-S05	QS30LPQ-KIT-S05	QS30LPQ Sensor, with Bracket, Reflector, S/T Cable, 5m	$346.50	C3
QS30LPQ-KIT-R02	QS30LPQ-KIT-R02	QS30LPQ Sensor, with Bracket, Reflector, R/A Cable, 2m	$339.90	C3
QS30LPQ-KIT-R05	QS30LPQ-KIT-R05	QS30LPQ Sensor, with Bracket, Reflector, R/A Cable, 5m	$346.50	C3
[D] Support Contracts
SVP-A250A-EXW-33-AC3		UMD Plus Support Contract: A250 Extended Warranty (excluding RFID Reader), RTB 3 day TAT, 3 years		V
SVP-A250A-EXW-33-ACM		UMD Plus Support Contract: A250 Extended Warranty (excluding RFID Reader), RTB 3 day TAT, 3 years, Montly Subscription		V
Does not include RFID Reader (requires separate ontract)
Contact UMD for assistance in tailoring this product to your needs.
