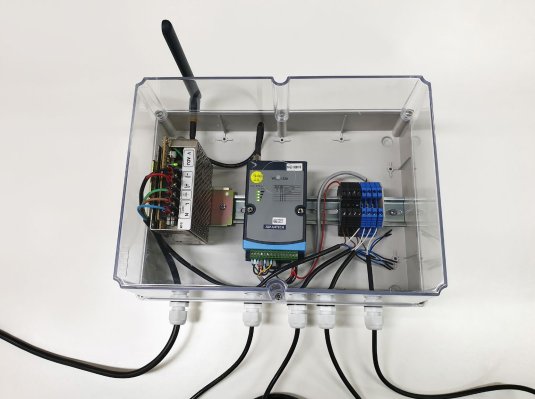

UMD Model A360 Series DIN Controller


The UMD Model A360 Series is a small generic control box designed for mounting DIN based peripherals, such as controllers, gateways, I/O and Terminal blocks.

Its is typically used with UMD’s Industrial IoT Control And Data Acquisition (IICADA) platform as an Edgeware gateway.

The industry standard DIN mounting frame enables UMD to selected suitable modules to meet customers specific IoT data capture needs.

Features


A360A

A361A



DIN Box Assembly (300 x 220 x 150 mm)

DIN Box Assembly (200 x 200 x 130 mm)

   Enclosure Ingress Protection Rating

5

6



IP55

IP66


Power Module

PD

P2

P4

P5

DC Input(9-30V), 24VDC/2.5A Output

AC Input, 12 Vdc O/P DIN Power Supply

AC Input , 24 Vdc DIN Power Supply 0.62A

AC Input, 24 Vdc DIN Power Supply 2.5A


I/O Module #2 *

00



A2

A1



U8

UR

CD

L4



N3



T8

TF

Not Installed

Advantech Modules

Advantech Wise 4220-S614T Wifi with External Antenna

Advantech Wise 4610-S614T LoRa with External Antenna

UMD Modules

UMD M800 DIN Computer

UMD Race Controller M8004100RL

UMD Circuit Board, Digital Meter

LED Light Box - 4 Way (On, Sensor, Read, Transmit)

Comms

Network Switch, 3 Port

Terminal Block

8 Way

16 Way

I/O Module #3

XX

As above

Cable Configuration



11

14

E2



M4

Cable Gland Options

1 + 1 (Power plus I/O Cables)

1 + 4 (Power plus I/O Cables)

Ethernet Port + 2 Glands

M12 Connector Options

Power Cable in Gland, 4x M12 4-Pin Bulkhead Plug

   Options/Configurations

00

Standard


A36_A

* Not all Module Options are possible. Contact UMD Sales to discuss your specific requirements.

Ordering Information and Pricing
Part Number Model Number Description RRP
Inc GST
T
%
[A] UMD Model A360 Series
A360A5P4A2T81400 A360 UMD Control DIN Box Assembly: AC Input, WISE4220-S217, 8 Way Terminal Block, 1+4 Glands $951.50 U
A361A6A1CD001100 A360 UMD Electric Fence Monitor (LoRa) (Ex 12V source) $1,309.00 U
A361A6P4UR00EU00 A360 UMD RACE Controller, 240AC , Ethernet + 2 Gland $2,508.00 U
