UMD Model 800B Series
DIN Based Embedded Computer

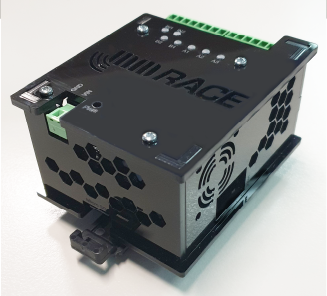

The Unique Micro Design Model 800B Series of DIN mount Embedded Computers are small low cost computer platforms which run the Debian Linux operating system and are supplied in open frame with DIN mounting.

The Model 800A is designed to be embedded into equipment for control applications typical in IoT edge devices and gateways.

Features

  • Choice of Raspberry Pi3B+ or Raspberry Pi4
  • 2x Opto-Isolated Inputs
  • 5x Solid State Relays
  • USB ports for peripheral devices, such as barcode scanners, NFC devices, etc.
  • Wiegand Input Option
  • Battery backed Real Time Clock
  • Hardware watchdog timer for reliable operation
  • Internal buzzer
  • Micro SD port for operating system and application software
  • DIN Mountable for easy installation
  • Backup power-input available
  • HDMI Display Port Support on Raspberry Pi
  • Lan, Wireless LAN and Bluetooth Low Energy (BLE) on board
  • Range of Input Power Options

Specifications

Physical Characteristics
Dimensions
PCB Stack 86(w) x 56(d) x 45(h) mm
Base Mount 88 x 74 x 4.5 mm)(exludes DIN mount)
Mounting
DIN Rail
Raspberry Pi3B+Raspberry Pi4
Processor
Broadcom BCM2711
Quad-core Cortex-A72 (ARM v8)
64-bit SoC @ 1.5GHz
Broadcom BCM2837B0
Quad-core Cortex-A53 (ARMv8)
64-bit SoC @ 1.4GHz
Memory
1GB, 2GB or 4GB SDRAM
Micro SD for Storage
1GB SDRAM
Micro SD for Storage
Power
POE, USB Micro-B, GPIO Header Input, 2.5A
POE, USB-C, GPIO Header Input, 3A
LAN
300Mbps Ethernet (Gigabit over USB 2.0)
Gigabit Ethernet
Wireless LAN
2.4GHz and 5.0GHz IEEE 802.11ac
2.4GHz and 5.0GHz IEEE 802.11ac
PAN
Bluetooth 4.2, BLE
Bluetooth 5.0, BLE
Video
1x HDMI(1920×1080p)
2x Micro-HDMI(4096 × 2160p)
Audio
3.5mm Stereo Jack
3.5mm 4-pole stereo audio and composite video port
USB Ports
4 x USB 2.0,
2 x USB 3.0, 2 x USB 2.0
Other Ports
40 Pin Raspberry Pi GPIO Header
40 Pin Raspberry Pi GPIO Header
Operating System
Debian Linux
UMD Raspberry Pi I/O Board Features
Power
9-32V/DC direct input and PoE, supplies regulated 5V input to GPIO Header for Raspberry Pi
Digital I/O
RS 232 Serial port - RS232 Levels port available on a IDC 10-way header
TTL UART, SPI, I2C
GPIO
5x Solid State Relay Outputs (500mA), 2x Opto-Isolated Inputs
Visual Indicators
4x Power LED's, 1x RGB Status LED
Buzzer
Digital - On-Board or Off-Board
Real Time Clock
Onboard, Battery backup
Other
Temperature sensor, Fan Connector, LED Array Connector, Slave I/O Processor, Push-Button
UMD Raspberry Pi Wiegand I/O Board Features (When used with Pi4)
Power
12 or 24V/DC direct input, Optional PoE, supplies regulated 5V output to GPIO Header for Raspberry Pi and 12V Output
Digital I/O
2x RS 232 Serial ports, 2x Wiegand Input Ports
GPIO
5x Solid State Relay Outputs (2x Isolated, 3x Button Inputs
Visual Indicators
Relay LED's
Buzzer
On-Board, with connector for external



UMD Model M800B Configuration Guide

M800B









UMD DIN Mount Embedded Computer (Open Frame)

 Base Controller

R



Raspberry Pi3B+, 1GB RAM

4



Raspberry Pi4, 4GB RAM

 I/O Board

0



No I/O Board

1



UMD I/O Board, GPIO + Relays + POE

3



UMD Wiegand I/O Board, GPIO + Relays (No POE)

4



UMD Wiegand I/O Board, GPIO + Relays + POE



Hardware Options

00



Standard (with Acrylic Housing)

01



M527A-BUZZ beeper and mounting plate

02



M527A-BUZZ beeper and mounting plate to suit A233A1U0000

A1



White Acrylic Housing with Fan

A2



Black Acrylic Housing with Fan

A3



Cyan Acrylic Wiegand I/O Housing without Fan



Firmware / Application

00

None

L1

LINUX

C1

Collect#1

V1

VAST NG Validator

G1

VAST NG Gateway

MM

MODBUS Master

RL

RFID/RACE

RS

RACE Dashboard Server

P0

PG Firmware



M800B












Pricing Available On Application

Ordering Information and Pricing
Part Number Model Number Description RRP
Inc GST		 T
%
[A] UMD Model 800B Series - UMD DIN Computers
M800BR100V1 M800B UMD DIN Controller with GPIO / Relay Board. UMD VAST NG Validator $1,001.00 U
M800BR101V1 M800B UMD DIN Controller with GPIO / Relay Board. UMD VAST NG Validator mounted on large acrylic plate with M527A-BUZZ (Loud buzzer) $1,056.00 U
M800BR100RL M800B UMD DIN Controller with GPIO and RACE Software $2,541.00 U
[B] Industrial Controllers
M800B4100MM UM UMD Modbus Controller M8004100MM
[C] Custom Controllers
M800B43A3P0 M800B UMD DIN Controller with Pi4,Wiegand I/O Board and Perfect Gym firmware $1,265.00 U
