UMD - Model 853A Series
Integrated UHF RFID Reader

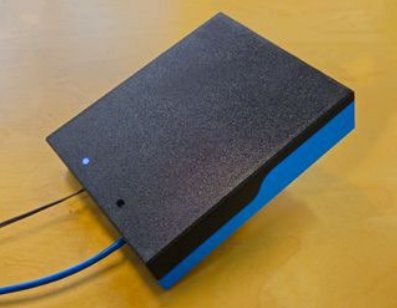

The UMD M853A is a UHF RFID Reader with an integrated Antenna for no-fuss setup. It has the ability to communicate over Ethernet, or Wi-Fi.

It is based on the Zebra RE40 OEM UHF RFID Reader module which comes in two or four port versions. Maximum RFID transmit power is +27dBm (0.5W).

The M853A can be configured using a web browser via its internal Wi-Fi Hotspot, or via the connected LAN network.

The M853A optionally includes a Time of Flight distance sensor used for automated start-stop reading of passing items, without the need of a reflector.

Utilising the Lua scripting environment, applications are readily developed by UMD, or system integrators, and simply downloaded into the M853. Cloud connectivity to enable remote management and upgrades of firmware and applications will be available soon!

Features

  • Lua script interpreter environment inbuilt
  • Full customisation of the raw RFID data is possible to transform the data into custom formats and destinations
  • Built in communications to UMD’s Chariot Broker for sophisticated solutions, such as UMD RACE
  • Full customisation in interfacing with your own applications using HTTP, or other API's by request
  • Designed and built in Australia

Specifications

General
Dimensions
198 (H) x 162 (W) x 47 (D) mm (standalone)
198 (H) x 162 (W) x 85 (D) mm (w/ ball mount)
Colour
Black and Blue (other colours available on request)
Power Input
8-24VDC via terminal block or 5V via USB-C Connector
Typical Power Consumption
3.0W
LED Indicators
1 x multicoloured Status LED
Branding
Custom face logo upon request
Communication Interfaces
Ethernet
RJ45 jack, 10/100 Mbps
Wi-Fi
2.4GHz, IEEE 802.11 b/g/n
Configurable as a Wi-Fi client and/or access point
USB
USB 2.0 Type-C (For power and debugging only)
RFID
RF Ports
0 - 3 monostatic ports, SMA female
TX Power
0 dBm to +27 dBm (500mW)
RX Sensitivity
-78 dBm
Operating Frequency
Australia: 915 - 928 MHz
(Other regions supported on request)
EIRP
29.5 dBm
Internal Antenna
Circular Polarised, 5.5 dBic gain
Object Sensor (Optional)
Time of Flight, with read distance up to 3m
Accuracy: depends on reflectance and range: Typically 10% of dist.
Infrared Light source: 940 nm
Miscellaneous
Configuration Tool
Web UI accessible via WiFi Hotspot/Ethernet/WiFi



UMD Model M853 Configuration Guide

UMD - Model 853 Series Integrated UHF RFID Reader
M853A



Base Model



 RFID Reader Module

2



2 Port UHF RFID Module, Zebra RE40

RE4000-CP02

4



4 Port UHF RFID Module, Zebra RE40

RE4000-CP04

 RFID Antenna Configuration

00



Internal Antenna (5.5dBic) with no external antenna



01



Internal Antenna (5.5dBic) with 1 external antenna port



03



Internal Antenna (5.5dBic) with 3 external antenna port





General Options

00



Standard with RAM Ball Mount

RAM-B-202U

01



Standard with RAM Ball Mount & Object sensor (Time of Flight)

1-9400-010-6



Configuration / Firmware

-C00

Standard Reader



-Cxx

Project XX specific





M853A














Ordering Information and Pricing
Part Number Model Number Description RRP
Inc GST		 T
%
[A] UMD Model 853 Series - UHF RFID Reader with Integrated Antenna
M853A20001-C00
[B] Power Supply Option
PS5RS1000W-U Power Supply, Regulated Switching, 5V DC 1A, Wall Mount with USB Connector $18.70 A
2-6398-020-3 CA6398-2 USB A to USB C Cable, Black, 2.0m, USB 2.0 $6.60 A
1-6000-359-8
[C] Replacement Parts
1-0149-202-5 Conn term screw 2w 3.81mm $0.99 A
