XERAFY - Autoclavable Tags
UHF RFID Tags
|

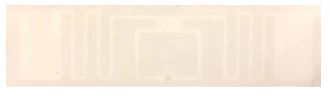

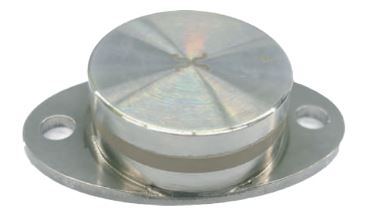

The Xerafy Autoclavable passive on-metal RFID tags offer extreme durability in hazardous environments for use in autoclaves. Autoclavable tags are qualified to survive rigorous sterilisation cycles from heat, gas, fluids and chemicals. The embeddable RFID tags are engineered to make full use of metal assets to increase its RF performance. Quick and convenient rugged mounting options include rivets, screws, welding and embedding. Perform in the most challenging operations including construction, mining, manufacturing and healthcare. The Xerafy Roswell is an industry first, using only its stainless steel interior as its antenna. This innovative design prevents the risk of tag failure from high impacts and vibrations to ensure reliability and direct attachment to metal surfaces. The Xerafy Gamma RFID label is manufactured to withstand e-beam and gamma sterilisation applications. Its low profile is flexible for a wide variety of plastic, flat and curved components. Two size options are available to incorporate human readable printing, barcodes and graphics. The 3m read range makes the Gamma labels ideally suited for healthcare, pharmaceutical and food applications. Features
|
Specifications
| Product |  Autoclavable Roswell |  Micro Autoclavable |  Gamma Label |
|---|---|---|---|
| Physical Characteristics | |||
| Dimensions | 48 x 28 x 13.30 mm | 55 x 36.2 x 7.5 mm | 75 x 20 x 0.2 mm |
| Weight | 44g | 26g | 1.15kg (roll) |
| Material | Stainless Steel | Industry grade polymer, 316L Stainless Steel, Silicone sealer | White thermal transfer face stock |
| Mounting | Screws, 5 mm Rivet Holes, Cable Tie | Screws (Rivet Holes), Pop Rivets | Industrial adhesive |
| Qty Per Roll | - | - | 1000 | Environmental Characteristics |
| Operating Temperature | -40 to 85°C | -40 to 85°C | -40 to 75°C |
| Application Temperature | -40 to 250°C | -40 to 150°C | -40 to 85°C |
| IP Classification | IP68, IP69K | IP69K | - |
| Compression Strength | 1145 psi (7900 kPa) | 181 psi (1250 kPa) | - |
| Shock (Drop) | 1 m to Concrete/Granite | 1 m to Concrete/Granite | 1 m to Concrete/Granite |
| Vibration | MIL-STD-810G | MIL-STD-810G | MIL-STD-810G |
| Chemical Resistance | Various Caustic Chemicals | Various Caustic Chemicals | Gamma resistance 100kGy, E-beam sterilization |
| Chip Characteristics | |||
| Chip Type | Alien Higgs 3 | Alien Higgs 9 | MB97R8050-AP15-ES |
| Operating Frequency Range | 902 MHz - 928 MHz | 902 MHz - 928 MHz | 860 MHz - 960 MHz (Global) |
| RF Protocol | EPC global Class 1 Gen 2 | EPC global Class 1 Gen 2 | EPC global Class 1 Gen 2 |
| Memory Configuration | 96-EPC bits; 64 TID bits; 512 user memory bits | 96-EPC bits; 48 TID bits; 688 user memory bits | 160-EPC bits; 176 TID bits |
| Read Range | Up to 5m | Up to 10m | Up to 3m |
| Part Number | Model Number | Description | RRP Inc GST |
T % |
|---|---|---|---|---|
| [A] XERAFY Roswell Autoclave UHF RFID Rugged Tags | ||||
| X1114-US143-H3 | ROSWELL Autoclave | Xerafy, Roswell Autoclave, UHF RFID Tag 48x28x13.5mm, Stainless Steel, Rivet Hole, Autoclave, H3 | $56.76 | A6 |
| [B] XERAFY Micro Autoclavable UHF RFID Rugged Tags | ||||
| X1130-US140-U8 | Micro-Autoclave | Xerafy, Micro Autoclavable, UHF RFID Tag 51x36.3x7.5mm, U8 | $28.82 | A6 |
| X1130-US140-H3 | Micro-Autoclave | Xerafy, Micro Autoclavable, UHF RFID Tag 51x36.3x7.5mm, H3 | $30.25 | A6 |
| [C] XERAFY Gamma UHF RFID Labels | ||||
| X6101-GL011-F1 | LM75x20-F1 | Xerafy, Gamma Metal Skin, UHF RFID Label, 75x20x0.2 mm, TT Stock, High Peformance Adhesive, MB97R8050-AP15-ES IC | $3.19 | A6 |
| X6201-GL011-F1 | LM101.6x50.8-F1 | Xerafy,Gamma Plus, UHF RFID Label, 01.6x50.8x0.2 mm, TT Stock, High Peformance Adhesive, MB97R8050-AP15-ES IC | $3.19 | A6 |
