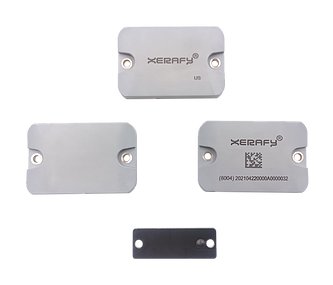

XERAFY Micro Series
Rugged High Temperature UHF RFID Tags


The MICRO series from Xerafy is the ultimate Industrial RFID tag for high temperatures, providing consistent performance where reliability and durability are critical.

As Xerafy’s leading RFID platform for high temperatures, the MICRO series is field-proven at manufacturing facilities around the world, alongside PICO small tags and XS world's smallest tags.

The on-metal UHF RAIN RFID tags are engineered to provide a reusable tagging solution that operates reliably even in the harshest environments:

  • Up to 280°C - Xerafy's flagship Ceramic RFID platform, for superior reliability through high-temperature cycles
  • NXP UCODE 8 - Latest Industrial RFID chip
  • 10m On Metal - Market-leading footprint/read-range
  • Two Sizes - Two footprints and a thin profile for the right fit for critical manufacturing assets
  • Stainless-Steel Reinforcements - Full range of rugged mounting options: M3 Rivets and Screws, Zip Ties, Industry-grade Adhesives (optional)
  • Industry-Grade Materials - The high-performance polymer case and meticulous design offer total durability against high temperatures, shocks, caustic chemicals, and fluids (IP ratings)
  • Optimal Optical Readability - Optimal case colours and material for maximum readability when laser etching (optional) Text, Logo, Serial Numbers, QR, Barcodes...
  • ATEX - Certified versions available (optional)
  • Customizable Platform - Full range of customization options available: Encoding, Printing, Laser Marking, Industrial Adhesives, ATEX Certified Versions, User Memory Version, Optical Optimized Case, Metal Backplate

    • The Xerafy MICRO Industrial passive RFID tag provides the dependability and durability required in manufacturing and production. The high-temperature UHF RAIN RFID tag is field-proven for harsh environments, where its durability matches the asset's life, thanks to its rugged case and 10m on-metal performance.

    The Xerafy MICRO Paint Shop offers field-proven industrial performance cycling through high temperatures, fluids, and chemicals. The silicone-free design eliminates the risk of contamination in the shop, and the UHF RAIN RFID tag's IP68 rating and survival temperature of 250°C ensure its durability.

    The Xerafy MICRO Autoclavable is purpose-built to withstand the rigors of sterile processing in healthcare. The IP69K rating and high-performance engineered polymer case of the UHF RAIN RFID tag withstands repeated chemical cleaning and autoclave sterilization cycles.

    The Xerafy MICRO Nano XHT offers a compact form factor that survives a market-leading extra high temperature of 280°C. The UHF RAIN RFID tag's rugged design delivers full performance with industry-grade mounting solutions, an IP68 rating, and a read range of 7 meters on metal.

    Specifications

    Product
    Micro Industrial
    Micro Paint Shop
    Micro Autoclavable
    Micro XHT
    Micro Power
    Physical Characteristics
    Dimensions55 x 36.2 x 7.5 mm55 x 36.2 x 7.5 mm55 x 36.2 x 7.5 mm42 x 15 x 2.8 mm32 x 10.8 x 6 mm
    Weight26g26g26g2.2g3g
    Case MaterialHigh-performance engineered polymer, 316L Stainless steelHigh-temperature engineered polymer, 316L Stainless Steel, Silicone-freeHigh-temperature engineered polymer, 316L Stainless Steel, Silicone sealerBlack PTFEHigh-performance engineered polymer
    MountingScrews (Rivet hole, M3), Pop rivets (Max size 3.2mm), Industrial Adhesive (optional)Screws (Rivet hole, M3), Pop rivets (Max size 3.2mm) Screws (Rivet hole, M3), Pop rivets (Max size 3.2mm)Screws (M3), Hight Performance Adhesive (optional)Screws (Rivet hole, M3), Pop rivets (Max size 3.2mm),Cable Tie, Industrial Adhesive (optional)
    Environmental Characteristics
    Operating Temperature-40 to +85°C-40 to +85°C-40 to +85°C-40 to +150°C
    (Max. 180°C for 10 hours)    		-40 to +85°C
    Application Temperature-40 to +250°C
    (250°C/500 hour cycle)    		-40 to +250°C
    (250°C/500 hour cycle)    		-40 to 150°C
    (150°C/600 hour cycle)    		-44 to 200°C
    (280°C for 50 minutes)
    (250°C for 150 minutes)    		-40 to 150°C
    IP ClassificationIP68IP68IP69KIP68IP68
    Compression Strength181 psi (1250 kPa)181 psi (1250 kPa)181 psi (1250 kPa)N/AN/A
    Shock1m to concrete/granite1m to concrete/granite1m to concrete/graniteN/A1m to concrete/granite
    VibrationMIL-STD-810GMIL-STD-810GMIL-STD-810GN/AMIL-STD-810G
    Chip Characteristics
    IC TypeAlien Higgs 3
    NXP UCODE 8    		Alien Higgs 3
    NXP UCODE 8    		Alien Higgs 3
    Alien Higgs 4
    NXP UCODE 8    		Alien Higgs-4Impinj M750
    Operating Frequency Range902 MHz - 928 MHz902 MHz - 928 MHz902 MHz - 928 MHz902 MHz - 928 MHz902 MHz - 928 MHz
    Memory Configuration128-EPC bits; 96-bits TID128-EPC bits; 96-bits TID128-EPC bits; 96-bits TID128-EPC bits; 64-bits TID; 128-bit user memory96-EPC bits; 96-bits TID; 32-bit user memory
    Nominal Read Range (On Metal)
    With Handheld    		Upto 7mUpto 7mUpto 7mUpto 5.3mUpto 2.5m
    Nominal Read Range (On Metal)
    With Fixed Reader    		Upto 10mUpto 10mUpto 10mUpto 6.8mUpto 3.5m
    Ordering Information and Pricing
    Part Number Model Number Description RRP
    Inc GST    		 T
    %
    [A] XERAFY Micro Series UHF RFID Ultra Rugged, High Temperature, Mount On Metal Tags
    Micro Industrial:
    X1130-US100-H3 Micro-Industrial Xerafy, Micro-Industrial, UHF RFID High Temp Tag 51x36.3x7.5mm with Rivet Hole, H3 $17.16 A6
    X1130-US100-U8 Micro-Industrial Xerafy, Micro-Industrial, UHF RFID High Temp Tag 51x36.3x7.5mm with Rivet Hole, U8 $16.39 A6
    Micro Paint Shop:
    X1130-US130-H3 Micro-Paint Shop Xerafy, Micro Paint Shop, UHF RFID Tag 51x36.3x7.5mm, H3 $22.77 A6
    X1130-US130-U8 Micro-Paint Shop Xerafy, Micro Paint Shop, UHF RFID Tag 51x36.3x7.5mm, U8 $21.67 A6
    Micro Autoclavable:
    X1130-US140-H3 Micro-Autoclave Xerafy, Micro Autoclavable, UHF RFID Tag 51x36.3x7.5mm, H3 $31.79 A6
    X1130-US140-U8 Micro-Autoclave Xerafy, Micro Autoclavable, UHF RFID Tag 51x36.3x7.5mm, U8 $30.25 A6
    Micro XHT:
    X1220-US050-H4
    Micro Power:
    X3130-US101-M750 Micro-Power Xerafy, Micro Power, UHF RFID Tag 32x10.6x6mm M750 $13.75 A6
