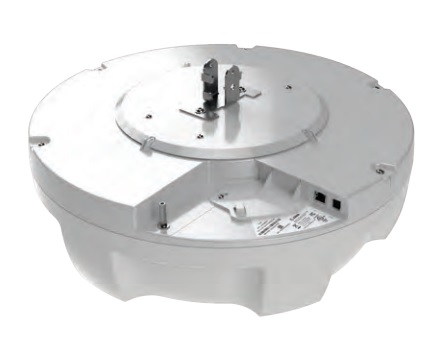

Zebra - ATR7000
RTLS UHF RFID Reader/Writer


Introducing the ATR7000 — a new class of RFID reader offering advanced technology that provides visibility into the pinpoint location of all of your tagged assets. With the ATR7000, you can seewhere your inventory, forklifts, equipment, workers and more are located — and if they are on the move, in which direction they are moving. Now, you can identify, locate and track items in real time — and receive real-time alerts to improve compliance and loss prevention. With its simplified configuration and management interface, the ATR7000 couldn’t be easier to deploy. Multiple mounting and power options make installation a snap. Zebra software tools enable rapid development of your RFID applications — from a basic application at a single dock door, to a complex application that covers every inch of the largest warehouse or manufacturing plant. And when it comes to total cost of ownership , the ATR7000 has no equal.

Vendor Product Brochure

Features

  • Wide-angle multi-polarized antenna
  • Beam steering for pinpoint location accuracy
  • Industry-leading real-time tracking: location, movement and direction of movement
  • Fast and easy integration with Zebra RFID API
  • Multiple mounting and Flexible power options
  • Easy remote management
  • No-cost tag maintenance
  • 12 Month Return to Base Warranty with Extended Maintenance options.

Specifications

  Physical Characteristics
Diameter 483mm
Height 161 mm
Weight 5Kg
Mounting Direct Attach Mounting Pole or standard VESA (75mm & 100mm)
  Environmental Specifications
Operating Temperature -20°C to 55°C
Storage Temperature -40°C to 70°C
Humidity 5 to 95% Non-Condensing
Ingress Protection IP51
Vibration MIL STD 810F, 0.04g2/Hz, Random (20 Hz to 2 kHz), 6G rms.
ESD ± 15 KVdc air discharge; ± 8 KVdc direct/indirect discharge
  Power
Power Input POE+ (802.3at) or AC-DC power supply rated for +24Vdc, 3.25 A
Power Consumption Maximum power, 24 W; idle power < 4 W
  UHF Reader Characteristics
Frequency Range (Australia) 920-926MHz (Max 4W EIRP)
Antenna Steerable phase-array
Max Receive Sensitivity -88 dbm
Beam Scanning Range Azimuth 0-360°, Elevation 0-60°
  Interfaces
Communication 10/100 BaseT Ethernet (RJ45) w/ POE support
GPIO 2 inputs, 3 outputs, optically isolated

Zebra ATR7000 Specification Brochure

Ordering Information and Pricing
Part Number Model Number Description RRP
Inc GST		 T
%
[A] Zebra ATR7000 RTLS Reader
ATR7000-P2100A-WR Zebra, ATR7000 RFID Fixed Reader with CLAS Licence (for RTLS Tracking) $5,665.00 C3
ATR7000-S2100A-WR Zebra, ATR7000 RFID Fixed Reader $5,038.00 C3
[B] Location Engine (per Reader)
CLAS-LIC-STD-01 ZEBRA SOFTWARE CONFIGURATION & LOCATION ANALYTICS C2
[C] Accessories
Power Supply
NIEDGP101IT EDIMAX PSU POE 802.3AT GIGABIT 30W $110.00 C2
Mounting
BRKT-VMATR7-00 ZEBRA BRACKET VESA MOUNT 75/100 FOR ATR7000 $47.30 C2
[D] Support Contract
Z1AE-ATR7XXX-3C03 ZEBRA ONECARE ESSENTIAL ATR7XXX 3YR COMP+COMM+DASH $1,019.70 V
Z1AS-ATR7XXX-3C03 ZEBRA ONECARE SELECT ATR7XXX 3YR COMP+COMM+DASH $1,570.80 V
Z1RE-ATR7XXX-2C03 ZEBRA ONECARE ESSENTIAL ATR7XXX 2YR COMP+COMM RNW V
[E] NOTES
This product information is only for reference. It is part of UMD solutions and requires UMD trained ATR-7000 Application Engineers, who have been certified by Zebra. i.e. You cannot order it directly.
