Zebra - DS3600 DPM Series
Direct Part Marking Bar Code Readers

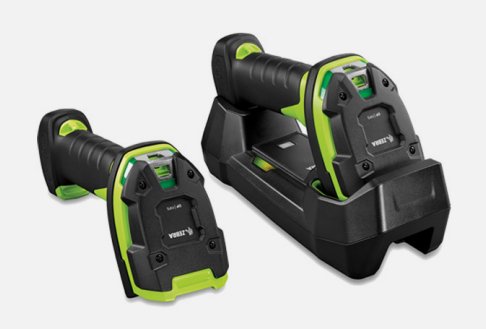

The Zebra DS3600 Ultra-Rugged Series barcode readers takes bar code scanning to the next level. Toughened to handle your worst environments, dustproof, spray proof and waterproof with an IP rating of IP65, or IP67 for full immersion, the DS3600 is ready for virtually every challenging warehouse environment.

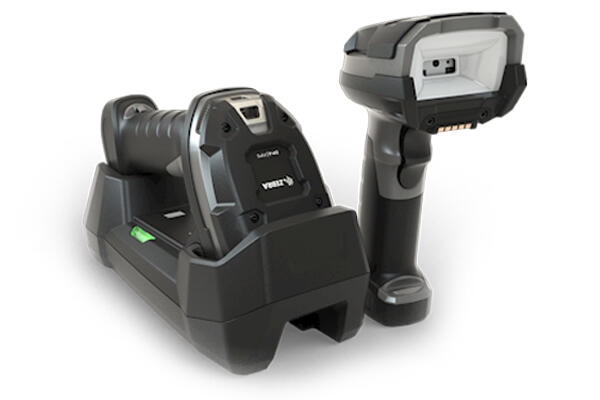

As a member of the Zebra 3600 Ultra-Rugged Series of scanners, the practically indestructible 1D/2D DS3608-DP corded and DS3678-DP cordless scanner brings the dependable capture of virtually every direct part mark to aerospace, automotive and other manufacturing plants where end-to-end traceability of every product component is required. And since the DS3608-DP and DS3678-DP also captures any 1D and 2D barcode displayed on a screen or printed on a label, you get real value — unstoppable performance in a single flexible device that can meet scanning needs from the assembly line to quality control.

Advanced illumination provides the multiple lighting effects required to capture marks on any type of surface, including reflective, irregular and curved, as well as low and high contrast marks. The built in diffuser provides the indirect light required to capture marks on very shiny and reflective surfaces, directing additional light to the edges of barcodes, enhancing the image for easier decoding. And a glancing direct light mode provides the bright light required to successfully read low contrast codes.

Features

  • Bluetooth or Tethered versions available
  • Advanced Illumination System
  • Reads Dot Peen, Etched or printed 1D and 2D Barcodes
  • Ultra Rugged for use in any environment
  • 36 Month Warranty with additional Maintenance options available

Specifications

  DS3608-DP
DS3608-DPA
DS3678-DP
DS3678-DPA
Mechanical
Dimensions Scanner: 185 (h) x 77 (w) x 132 (d) mm

Scanner: 185 (h) x 77 (w) x 143 (d) mm
Cradle: 50 (h) x 211 (l) x 86 (w) mm
Weight 304g 402g
Environmental
Operating Temperature -30 to 50°C -20 to 50°C
Storage Temperature -40 to 70°C -40 to 70°C
Relative Humidity 5% to 95% (non condensing)
Sealing Scanner: IP65 or IP68

Scanner: IP65 or IP68
Cradle: IP65
Drop Specification Withstands multiple 3.0m drops to concrete at room temperature
Withstands multiple 2.4m drops to concrete across operating temperature range
Tumble Specification 7500 1.0m tumbles
Electrical
Power Input Host Power: 4.5V/DC to 5.5V/DC
External Power: 11.4V/DC to 12.6V/DC
Battery - 3.6V 3100mAh Li-Ion
Operating Current 360mA -
Standby Current 100mA -
Optical
Light Source
Aiming Pattern:
Illumination:

655 +/- 10 nm laser diode
Direct:Two warm white LED's
Diffuse: Ring of 634nm red LED's
Field of View
DP:

DPA:

31° horizontal
23° vertical
46° horizontal
30° vertical
Roll
Pitch
Skew
360°
±60°
±60°
Symbologies Decoded 1D: UPC/EAN plus supplementals, Code 39 (Standard, Full ASCII), Code 93, Codabar, Code 11 (standard, Matrix 2 of 5), MSI Plessey, Interleaved 2 of 5, GS1 Databar (Omnidirectional, Truncated, Stacked, Stacked Omnidirectional, Limited, Expanded, Expanded Stacked, Inverse), Base 32 (Italian Pharmacode)
PDF417: PDF417, microPDF417, Composite Codes(CC-A, CC-B, CC-C)CC-B, CC-C)
Postal: U.S. Postnet and Planet, U.K., Japan, Australian, Netherlands KIX code, Royal Mail 4 State Customer, UPU ICS 4 State Postal, USPS 4CB, Canadian Post (Postbar)

2D: TLC-39, Aztec (Standard, Inverse), MaxiCode, DataMatrix/ECC 200 (Standard, Inverse), QR Code (Standard, Inverse and Micro)
Print Contrast 15% Minimum Reflectance
Imaging Sensor 1280 x 960 pixels
Image Quality 120 DPI on a 102 x 152 mm document @ 165 mm
Decode Range
DP
DPA:

0 - 147 mm (Dependant on Barcode)
3 - 254 mm (Dependant on Barcode)
Communications
Scanner Interface Options USB Keyboard, PS2, RS232, Industrial Ethernet: EtherNet/IP, Profinet, Modbus, TCP & TCP/IP Bluetooth 4.0(LE), Class 1, SPP and HID Keyboard Profiles
Cradle Interface Options

USB Keyboard, PS2, RS232, Industrial Ethernet: EtherNet/IP, Profinet, Modbus, TCP & TCP/IP
Ordering Information and Pricing
Part Number Model Number Description RRP
Inc GST
T
%
[A] Zebra DS3608-DP DPM Tethered Barcode Scanner
Scanner - no cable
DS3608-DPA0002VZWW ZEBRA SCANNER KIT DS3608 2D-DPM (SCANNER ONLY) $2,827.00 C3
Interface Cable Options
CBA-U46-S07ZAR ZEBRA CABLE DATA SCANNER USB-SHIELDED 2M STR BC1.2 $56.10 C2
[B] Zebra DS3678-DP DPM Bluetooth Barcode Scanner Kit
BT Kit (Required IEC Power Cable)
DS3678-DPAU42A2S1W ZEBRA SCANNER KIT DS3678 BT 2D-DPA USB/CRD PSU BLK $3,729.00 C3
Power Cable
2-5199-020-0 CA199-2 IEC Power C13 to AU 3 pin Plug $8.80 A
[C] DS3678 Battery Charger (Requires Power Supply)
SAC3600-4001CR ZEBRA MULTIDOCK BATTERY 4-BAY LI3678/DS3678 $459.80 C2
Desk Dock Power Supply (Order all)
PWR-BGA12V50W0WW PS12RS416 ZEBRA PSU 12V/4.16A 50W $79.20 C2
CBL-DC-451A1-01 ZEBRA DC LINE CORD W/FILTER FOR 3600 SERIES $33.00 C2
2-5199-020-0 CA199-2 IEC Power C13 to AU 3 pin Plug $8.80 A
Forklift Dock Power Supply (Order all)
PWRS-14000-251R ZEBRA PSU DC VMU/DOCK 18-75V $1,331.00 C2
CBL-36-452A-01 ZEBRA CABLE FORKLIFT DC POWER SUPPLY $82.50 C2
[D] Accessories
BRKT-MM0036W-00 ZEBRA BRACKET CRADLE VIBRATION DAMPEN STB36/FLB36 $117.70 C2
STND-AS0036-07 ZEBRA STAND INTELLISTAND ADJ DS3608 BLK $117.70 C2
21-52612-01R ZEBRA HOLDER VEHICLE SCANNER $209.00 C3
50-12500-066 ZEBRA WRIST STRAP LANYARD $4.40 C2
50-15400-031 ZEBRA TOOL BALANCER PULLEY $223.30 C2
BTRY-36IAB0E-00 ZEBRA BATTERY DS/LS/LI3600 SERIES $126.50 C3
BTRY-36IAB0E-00 ZEBRA BATTERY DS/LS/LI3600 SERIES $126.50 C3
[E] Industrial Protocols Interface
EA3600-R0MF50S-00 EA3600-R-EIP ZEBRA EA3600 ROCKWELL (EtherNet/IP) ETHERNET STB CRADLE KIT $2,464.00 C4
EA3600-S0MF50S-00 EA3600-S-MOD ZEBRA EA3600 SIEMENS (MODBUS) ETHERNET STB CRADLE KIT $2,464.00 C4
EA3600-T1CP-00 EA3600-TCPIP ZEBRA ADAPTER ETHERNET STD TCP/IP 24V RJ45 3600 $1,430.00 C4
These items are only supplied with Scanners, and subject to sales approval. Clients must have necessary PLC expertise to utilise these devices.
[F] After Sales Support
Z1AE-DS3608-1C00 ZEBRA ONECARE ESSENTIAL DS3608 1YR COMP $83.60 V
Z1AE-DS3608-3C00 ZEBRA ONECARE ESSENTIAL DS3608 3YR COMP $225.50 V
Z1AE-DS3678-1C00 ZEBRA ONECARE ESSENTIAL DS3678 1YR COMP $106.70 V
Z1AE-DS3678-3C00 ZEBRA ONECARE ESSENTIAL DS3678 3YR COMP $264.00 V
Z1AE-DS3678-5C00 ZEBRA ONECARE ESSENTIAL DS3678 5YR COMP $430.10 V
