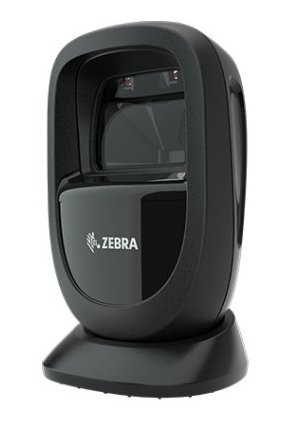

Zebra - DS9308
Presentation Bar Code Reader


Zebra's DS9308 omni-directional presentation scanner provides an easy to use choice for integrating data capture into your point-of-sale (POS) environment. Designed to speed the checkout process for customers, while improving sales tracking and inventory management the DS9208's capabilities enables your employees to work faster and more accurately. Durable construction protects the DS9208 from the shocks of heavy use, extending the life of your investment.

The DS9308 reads 2D barcodes straight out of the box so it is the ideal product to future proof your business as Databar comes online next year, as well as reading other stacked symbology barcodes and 2D codes. The DS9308 will even read a barcode off your customers smart phone screen for coupon redemption, or any of a number of possible uses.

Features

  • Small, reliable POS Presentation scanner
  • Ergonomic lightweight and durable design
  • Hands Free or Handheld operation
  • Variety of Interface options
  • Omni - Directional reading
  • Read 2D and Stacked Symbology Barcodes
  • Document Capture Capability
  • 36 month Return to Base Warranty

Specifications

Mechanical
Dimensions 83mm D x 86mm W x 145mm H
Weight 310
Environmental
Operating Temp. 0 to 50 C
Storage Temp. -40 to 70 C
Relative Humidity 5% to 85% (non-condensing)
Shock Multiple 150cm (5ft) drops onto concrete
Electrical
Voltage Range 5.0 VDC 10%
Operating Current (nominal) Presentation Mode: 335mA
Trigger Mode: 350mA
Optical
Swipe Speed Upto 3m/sec(13 mil UPD in optimised mode)
Pitch 60 (Typical)
Yaw 60 (Typical)
Light Source 660 nm Hyper-Red LED
Ambient Light Immune to normal office lighting conditions, as well as direct exposure to sunlight
Print Contrast Ratio 15% minimim reflective difference
Read Distance 65mm to 280mm (dependant on barcode)
Symbologies Decoded
1D: UPC/EAN plus supplementals, Code 39, Base 32, Code 128, Code 93, Codabar/NW7, Interleaved 2 of 5, Code 11, MSI Plessey

Stacked: GS1 DataBar (Omnidirectional, Truncated, Stacked, Stacked Omnidirectional, Limited, Expanded, Expanded Stacked, PDF417 )Standard, Macro, Micro), Postal
2D: TLC-39, Aztec, MaxiCode, DataMatrix, QR Code (Standard, Inverse, Micro), DotCode, Dotted DataMatrix, securPharm
Communications
Interfaces Supported USB, RS 232, Keyboard Wedge and RS485 (IBM 46xx Protocols)

Ordering Information and Pricing
Part Number Model Number Description RRP
Inc GST
T
%
[A] Zebra LS9308 Scanner USB Kit - Black
DS9308-SR4U2100AZW ZEBRA SCANNER KIT DS9308 2D-SR USB/STR 2M BLK $332.20 A
[B] Aebra LS9308 EAS Scanner only
DS9308-SR00004ZCWW ZEBRA SCANNER ONLY DS9308 2D-SR BLK CHECKPOINT/EAS $636.90 A
[C] Cables
CBA-U21-S07ZBR ZEBRA CABLE DATA SCANNER USB-SHIELDED 2.1M STR $48.40 A
CBA-U30-S15ZBR ZEBRA CABLE DATA SCANNER USB-SHIELDED 4.6M STR $78.10 A
CBA-U32-C09ZAR ZEBRA CABLE DATA SCANNER USB-SHIELDED 2.8M CLD $55.00 A
CBA-U29-C15ZAR
CBA-U26-S09EAR
CBA-U39-S09EAR
CBA-R01-S07PBR ZEBRA CABLE DATA SCANNER RS232 DB9F 2M STR TXD2 PR $44.00 A
CBA-R02-C09PAR
CBA-R06-C20PBR ZEBRA CABLE DATA SCANNER RS232 DB9F TXD2 COILED 6M $143.00 A
[D] Power Supply (Required with some Serial Cables)
PWR-WUA5V4W0US0
[E] Mounting Brackets
BRKT-MM0093C-04 ZEBRA BRACKET MULTI-MNT BLK FOR DS9308 $27.50 A
BRKT-LM0093C-04 ZEBRA BRACKET LOCKING MNT BLK FOR DS9308 $20.90 A
