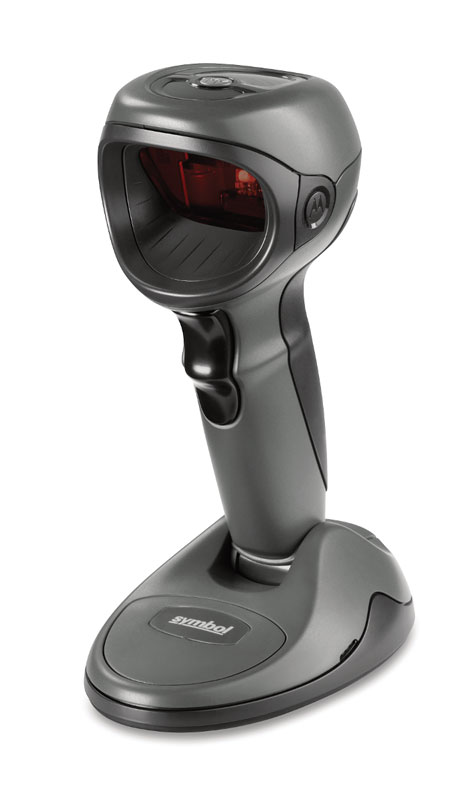

Zebra DS9808-R
UHF RFID Reader


The Zebra DS9808-R is a combination handheld/hands-free 1D/2D bar code and RFID reader with a revolutionary imaging engine to enable the capture of 1D and 2D bar codes as well as images and signatures. In addition, the range in handheld (triggered) mode can be increased to read RFID tags that are further away. The DS9808-R offers the flexibility to accommodate virtually any type of data capture application, including support for 1D and 2D paper and mobile barcodes, coupons, loyalty cards, boarding passes, PDF417 codes and the reading writing of RFID tags.

The comprehensive RFID feature set of the DS9808-R enables retailers to maximise the value of RFID technology in the store. In addition to reading tags to complete purchases, capabilities include the commissioning of tags for new inventory items and returned goods. Built-in filtering prevents accidental multiple entries of the same tag - a single beep sounds as the tag data is captured and entered into the transaction, just as if a bar code was scanned, providing a familiar and intuitive process that eliminates the need for extra training. Special RFID data conversion software can be used for on-the-fly translation of the EPC tag data to EAN/UPC bar code entry. A pilot test or full RFID solution can be implemented quickly, easily and cost-effectively into any existing retail environment.

The unique tri-function trigger design enables retailers to assign up to three specific functions in the same trigger. For example, the upper and lower triggers could activate the bar code reader for 2 different read types and pressing both triggers together could activate the RFID reader.

Switching from hands-free presentation style scanning to handheld mode is as easy as picking up the device. Capture any printed or electronic 1D/2D bar code with the enterprise-class imager — even if they are dirty, damaged or poorly printed. Easily toggle between RFID and bar code scanning with a simple button tap, maximising ease of use and productivity.

Features

  • Solid Hybrid Design
  • Withstands Multiple 4 ft./1.2 m drops to Concrete
  • RFID UHF Frequency in Integrated Compact Base
  • Omni-directional Barcode Reading with a wide working range
  • 12 Month Return to Base Warranty

Specifications

Physical Characteristics
Height 216mm
Width 89 mm
Length 152mm
Weight 465g
Environmental Specifications
Operating Temperature 0°C to 40°C
Storage Temperature -10°C to 60°C
Humidity 5 to 95% Non-Condensing
Drop Spec. 1.2m drop to concrete
Power
Power 5V ±5% VDC @ 1.2A
Barcode Reader
Symbologies All common 1D, 2D, Stacked and Postal Codes
Read Distance 10mm to 200mm, depending on barcode
Light Source Aiming Pattern: 650nm Laser
Diode Illumination: 630nm LED
Field of View 39° H x 25° V
Roll/Pitch/Yaw 360°, ±65°, ±60°
Scan Angle 40° ±3° nominal
Swipe Speed Programmable up to 2.5m/s
(Horizontal Read Rate)
Frame Rate Up to 60 frames per second
RFID Reader
Frequency UHF 900MHz EPCglobal Class 1 Gen 2 (ISO 18000-6C)
Antenna Omnidirectional
Read Power Adjustable from near contact up to 1m, depending on tag sensitivity and orientation
Interfaces
USB USB, RS-232, RS-485(Read only)
Ordering Information and Pricing
Part Number Model Number Description RRP
Inc GST
T
%
[A] Zebra DS9808-R RFID
DS9908-SR4U210RAZU ZEBRA SCANNER DS9908 2D-SR USB BLK RFID 902-928MHZ $1,958.00 C3
[B] Zebra DS9808 BCR only
DS9908-HDWU2104AZW ZEBRA SCANNER KIT DS9908 2D-HD USB 2M STR WHI $800.80 C3
DS9908-HDWU2105AZU ZEBRA SCANNER KIT DS9908 2D-HD USB 2M STR WHI RFID $2,101.00 C3
DS9908-SR00004ZCWW ZEBRA SCANNER DS9908 2D-SR CHECKPOINT EAS BLK $750.20 C3
DS9908-SR00004ZZWW ZEBRA SCANNER DS9908 2D-SR BLK $710.60 C3
DS9908-SR4U2100AZW ZEBRA SCANNER KIT DS9908 2D-SR USB 2M STR BLK $746.90 C3
DS9908-SR4U2300AZW ZEBRA SCANNER KIT DS9908 2D-SR USB+/12V 2M STR BLK $757.90 C3
[C] Cables
CBA-U26-S09EAR
[D] Support Contracts
Z1AS-DS990X-5C03 ZEBRA ONECARE SELECT DS990X 5YR COMP+COMM+DASH $149.60 V
