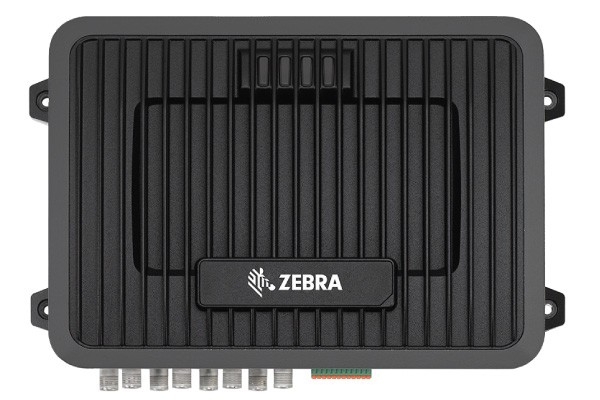

Zebra - FX9600
Integrated UHF RFID Reader/Writer


The Zebra FX9600 Fixed UHF RFID Reader delivers the performance and features you need to handle maximum visibility and efficiency in your most rugged environments Your business needs an RFID reader that can keep up with the high volume and wide variety of pallets, cases and tagged items that go in, out and through your warehouse and dock doors each day. With support for Power over Ethernet, IP53 sealing and up to eight RF ports, the FX9600 brings a new level of cost efficiency to passive UHF asset tracking and inventory management, without compromising on performance. Industry-leading read rates, long read ranges and exceptional RF sensitivity ensure you can automate inventory management — from receiving and put-away to picking and shipping — without errors and without bottlenecks. This results increased efficiency and accuracy every time your inventory is touched, reduced labour costs and the delivery of the right product to the right customer, on time, every time. When you need industry-best RFID performance, the FX9600 delivers!

The faster and more accurately you can receive, inventory, pick and ship, the more efficient and profitable your operation can be. The FX9600’s four or eight highly sensitive monostatic RF ports provide the exceptionally high RF sensitivity required to deliver the greatest accuracy and longer read ranges. This results in the highest throughput in this class — even in the densest RF environments with challenging materials, such as metal or liquids.

The FX9600 can host embedded applications, so data can be parsed directly on the reader. Since data is processed in real time at the network edge, the amount of data transmitted to your backend servers is substantially reduced, increasing network bandwidth and improving network performance. Latencies are reduced, improving application performance. And the integration of data into a wide variety of middleware applications is simplified, reducing deployment time and cost.

Eliminate the time and cost required to run power drops to each reader with support for PoE (802.3af) or PoE+ (802.3at). And either PoE+ or a 24V power supply provide industry-best full output power, eliminating the loss of power due to long cable runs and connectors. You get maximum tag reads, maximum read ranges and the maximum RFID performance required to get coverage you need with fewer readers.

Features

  • High performance radio technology
  • Integrated Power Over Ethernet (POE)
  • Optically isolated GPIO
  • 4-port and 8-port reader configurations
  • Software-based radio technology
  • 12 Month Return to Base Warranty with Extended Maintenance options.

Specifications

  Physical Characteristics
Length 273 mm
Width 184 mm
Depth 50 mm
Weight 2.13Kg
Housing Die-cast aluminum, meets IP53 standards
Mounting Edge Tabs and standard VESA (100mm x 100mm)
  Environmental Specifications
Operating Temperature -20°C to 55°C
Storage Temperature -40°C to 70°C
Humidity 5 to 95% Non-Condensing
Ingress Protection IP53
  Power
Power Input POE, POE+ or +24V DC external supply
Power Consumption Max. at 24V DC, 3.25A, 78W
  UHF Reader Characteristics
Frequency Range (Australia) 920-926MHz (4W EIRP)
Antenna Connections Reverse Polarity TNC
Transmit Power 0dBm to +33.0dBm: PoE+, 24V External DC Power Supply;
0dBm to +31.5dBm: PoE, 12V External DC (4-port-models only), 24V External DC Power Supply
  Interfaces
Communication 10/100 BaseT Ethernet (RJ45) w/ POE/POE+ support; USB Client (USB Type B), USB Host Port (Type A), Serial DB9
GPIO 4 inputs, 4 outputs, optically isolated (Terminal Block)
Ordering Information and Pricing
Part Number Model Number Description RRP
Inc GST
T
%
[A] Zebra FX9600 UHF Reader (excludes power supply)
FX9600-42325A50-WR FX9600-4 ZEBRA FX9600 FIXED RFID READER 4-PORT POE $2,057.00 C3
FX9600-82325A50-WR FX9600-8 ZEBRA FX9600 FIXED RFID READER 8-PORT POE $2,420.00 C3
[B] Power Supply
PWR-BGA24V78W1WW PS24RS325 ZEBRA PSU AC/DC 24V 3.25A 78W -20 TO 50C $117.70 C2
2-5199-020-0 CA199-2 IEC Power C13 to AU 3 pin Plug $8.80 A
[C] Antenna Cables
Times-7: SMA (antenna connector) to TNC/RP (RFID antenna port)
2-9003-002-9 CA9003-0.2 Coax Cable, RG58, SMA - RevP TNC $146.30 U
2-9003-010-7 CA9003-1 Coax Cable, RG58, SMA - RevP TNC 1m $146.30 U
2-9003-020-4 CA9003-2 Coax Cable, RG58, SMA - RevP TNC 2m $59.40 U
2-9003-030-5 CA9003-3 Coax Cable, RG58, SMA - RevP TNC 3m $150.70 U
2-9003-050-1 CA9003-5 Coax Cable, RG58, SMA - RevP TNC 5m $155.10 U
2-9003-060-0 CA9003-6 Coax Cable, RG58, SMA - RevP TNC 6m $116.60 U
2-9003-080-2 CA9003-8 Coax Cable, RG58, SMA - RevP TNC 8m $127.60 U
2-9003-100-7 CA9003-10 Coax Cable, RG58, SMA - RevP TNC 10m $166.10 U
2-9003-120-7 CA9003-12 Coax Cable, RG58, SMA - RevP TNC 12m $170.50 U
2-9003-150-7 CA9003-15 Coax Cable, RG58, SMA - RevP TNC 15m $178.20 U
2-9003-180-8 CA9003-18 Coax Cable, RG58, SMA - RevP TNC 18m $184.80 U
[D] After Sales Support
Z1AE-FX9600-3000 ZEBRA ONECARE ESSENTIAL FX9600 3YR $436.70 V
Z1AE-FX9600-3C00 ZEBRA ONECARE ESSENTIAL FX9600 3YR COMP $545.60 V
Z1AE-FX9600-5C00 ZEBRA ONECARE ESSENTIAL FX9600 5YR COMP $902.00 V
[E] Zebra Connect for Automation - Interface Software
Enables direct connection of RFID FX Reader to PLC's without requiring a converter box
FXNCEIP-LIC-STD-01 Zebra Network Connect-R (Ethernet/IP) Activation Licence for FX Series L
FXNCMODBUS-LIC-STD-01 Zebra Network Connect-S (Modbus)) Activation Licence for FX Series L
8-9001-313-8 SV-UMD-CONF-B30-CPE Pre-Configuration - Per 30 minute Block P
