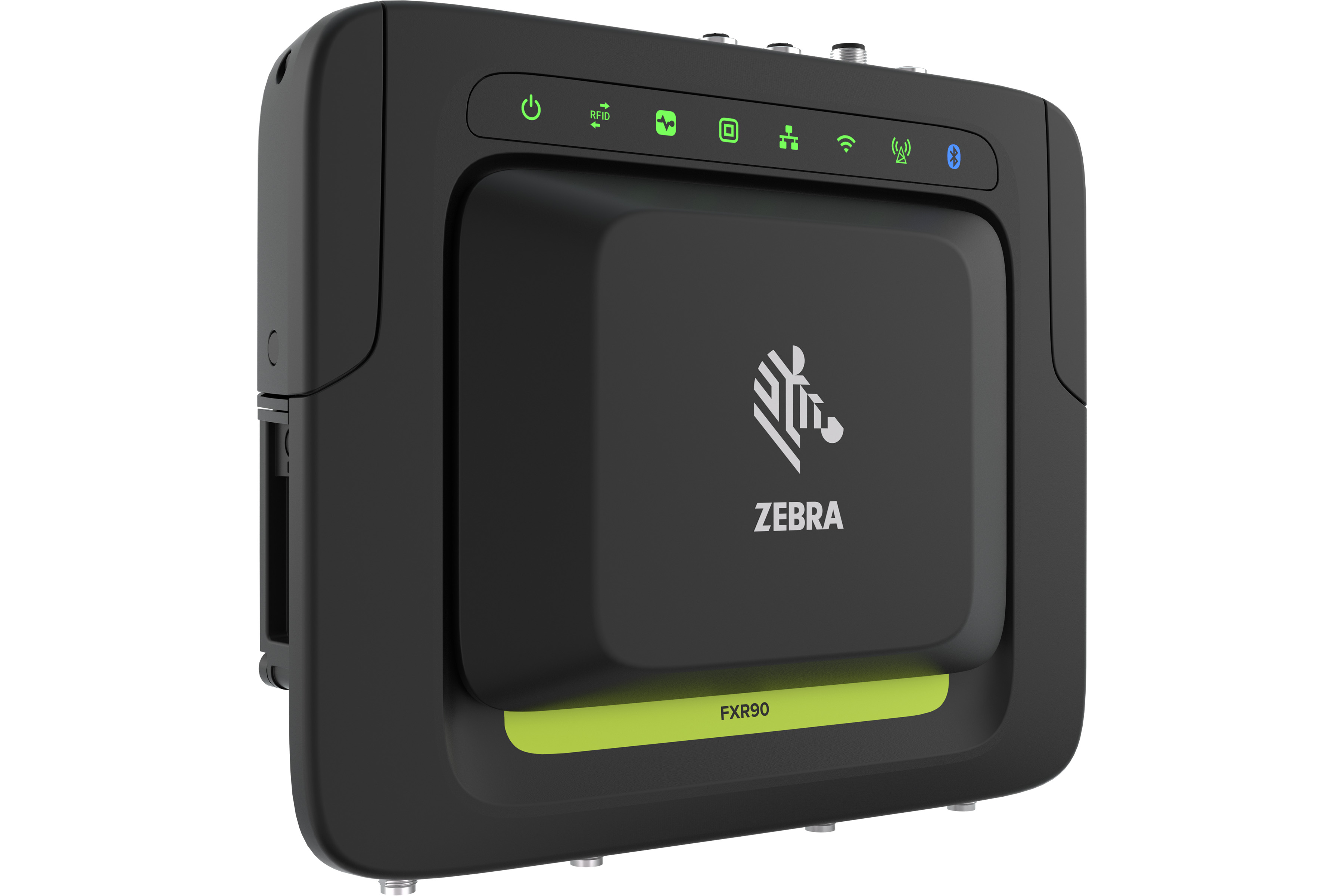

Keep your supply chain moving - track your assets and inventory even in extreme weather with the versatile, easy-to-use Zebra FXR90 Ultra-Rugged Fixed RFID readers. Designed to be easily deployed in the toughest conditions, FXR90 RFID readers are built to perform reliably in a wide range of harsh environments, both indoors and outside. With wireless backhaul options and integrated RFID antenna built in, FXR90 RFID readers make deployment a breeze. Featuring a ruggedized design and robust, industry-leading performance such as read rates of 1,300+ tags per second, FXR90 RFID readers enable greater visibility and real-time data wherever you need it most. The dual IP65/67 sealing and extended operating temperature range allow workers to track critical items even where dirt and moisture infiltration or extreme temperatures are common. That’s because the FXR90 and all of its connectors are fully sealed, allowing you to place it in brutal conditions where it can withstand repeated washdowns. The FXR90’s versatile design includes a proprietary built-in RFID antenna that simplifies deployment, eliminating the need to run antenna cables and create your own read points. With built-in wireless technologies, such as Wi-Fi 6, Bluetooth ® , 5G, GPS and CBRS, the FXR90 provides unmatched connectivity to meet the demands of today and the innovations of tomorrow. Features
|
---|
Specifications
Physical Characteristics | |
---|---|
Dimensions | 29.1 x 25.4 x 7.08 cm |
Weight | 3kg |
Housing | Die-cast aluminium |
Mounting | Flush mount and standard VESA |
Environmental Specifications | |
Operating Temperature | -20°C to 65°C |
Storage Temperature | -40°C to 85°C |
Ingress Protection | IP56 and IP67 |
Power | |
Power Input | POE, POE+ or +24V DC, 12V-24V DC external supply |
UHF Reader Characteristics | |
Antenna Connections | Integrated Antenna with 4 external antenna ports 4 external RP-TNC antenna ports 8 external RP-TNC antenna ports |
Interfaces | |
Communication | Gigabit Ethernet w/ POE support, USB Client, 2 USB Host |
WLAN | IEEE 802.11ax/ac/a/b/g/n 2X2, IPv4 |
WWAN | 5G, 4G, 3G |
Bluetooth | Bluetooth v5.3 with BLE |
GPS | GPS/GLONASS/BDS/Galileo/QZSS/GNSS |
Zebra FXR90 | ||||||||
FXR90 |
|
|
| - |
| 0000-WR |
| |
WWAN | ||||||||
0 | No | |||||||
1 | 5G w/ CBRS | |||||||
WLAN / Communications | ||||||||
0 | Ethernet | |||||||
1 | Wi-Fi 6, BLE | |||||||
Integrated Antenna | ||||||||
0 | No | |||||||
1 | Yes | |||||||
- | ||||||||
- | ||||||||
No. of External / Antenna Ports | ||||||||
4 | Port | |||||||
8 | Port | |||||||
| ||||||||
FXR90 |
|
|
| - |
| 0000-WR |
|
Part Number | Model Number | Description | RRP Inc GST |
T % |
---|---|---|---|---|
[A] Zebra FXR90 UHF Reader with Integrated Antenna | ||||
FXR90000-400000-WR | FXR90-4 | FXR90 Ultra-Rugged Fixed RFID Reader, UHF RFID Only, Reader Only, 4 External Antenna Ports, 800MHz & 900MHz Worldwide | C3 | |
FXR90001-400000-WR | FXR90-I4 | FXR90 Ulra Rugged UHF Fixed RFID Reader, Integrated cross-polorised Linear Antenna, 4 External Antenna Ports, 800MHz & 900 MHz WorldWide | C3 | |
FXR90010-400000-WR | FXR90-4W | FXR90 Ultra-Rugged Fixed RFID Reader, UHF RFID, Bluetooth 5.3, WiFi 6, Reader Only, 4 External Antenna Ports, 800MHz & 900MHz Worldwide | C3 | |
FXR90010-800000-WR | FXR90-8W | FXR90 Ultra-Rugged Fixed RFID Reader, UHF RFID, Bluetooth 5.3, WiFi 6, Reader Only, 8 External Antenna Ports, 800MHz & 900MHz Worldwide | C3 | |
FXR90011-400000-WR | FXR90-I4W | FXR90 Ultra Rugged UHF Fixed Reader, Bluetooth 5.3, WiFi 6, Integraed Cross-Poloirsided Linear Antenna, 4 External Atenna Ports, 800MHz & 900MHz WorldWide | ||
FXR90110-400000-WR | FXR90-4W5 | FXR90 Ultra-Rugged Fixed RFID Reader, UHF RFID, Bluetooth 5.3, WiFi 6, Reader Only, 5G with CBRS, 4 External Antenna Ports, 800MHz & 900MHz Worldwide | C3 | |
FXR90110-800000-WR | FXR90-8W5 | FXR90 Ultra-Rugged Fixed RFID Reader, UHF RFID, Bluetooth 5.3, WiFi 6, Reader Only, 5G with CBRS, 8 External Antenna Ports, 800MHz & 900MHz Worldwide | C3 | |
FXR90111-400000-WR | FXR90-I4W5 | FXR90 Ultra-Rugged Fixed RFID Reader, UHF RFID, Bluetooth 5.3, WiFi 6, Integrated Cross-Polarized Linear Antenna, 5G with CBRS, 4 External Antenna Ports, 800MHz & 900MHz Worldwide | C3 | |
[B] Power Supply - Standard | ||||
PWR-BGA24V78W1WW | PS24RS325 | ZEBRA PSU AC/DC 24V 3.25A 78W -20 TO 50C | $117.70 | C2 |
2-5199-020-0 | CA199-2 | IEC Power C13 to AU 3 pin Plug | $8.80 | A |
[C] Power Supply -IP67 Sealed | ||||
Power Supply Unit (PSU) | ||||
PWR-BGA24V90W0WW | PS24RS3750-IP67 | ZEBRA PSU IP67 Sealed, 90-264VAC Input, 24Vdc 3.75A Ouput | $440.00 | C2 |
Cable - PSU to Reader | ||||
CBL-PWRD035-M12M12 | Zebra DC Cable, DC Ouput, M12 to M12 3.5m | $187.00 | C3 | |
CBL-PWRD100-M12M12 | Zebra DC Cable, DC Output M12 to M12 10m | $205.70 | C2 | |
Cable - AC Power | ||||
CBL-PWRA035-M12IEC | Zebra AC Cable, M12 to IEC Plu 3.5m | $99.00 | C2 | |
[D] Cables | ||||
USB Client Cables | ||||
CBL-USBACLT015-M12 | USB A Client Cabe, M12 Connector, 1.5M | $77.00 | C2 | |
CBL-USBACLT015-M12 | USB A Client Cabe, M12 Connector, 1.5M | $77.00 | C2 | |
CBL-USBACLT035-M12 | USB A Client Cabe, M12 Connector, 3.0M | $99.00 | C2 | |
CBL-USBCCLT015-M12 | USB C Client Cabe, M12 Connector, 1.5M | $77.00 | C2 | |
CBL-USBCCLT035-M12 | USB C Client Cabe, M12 Connector, 3.0M | $99.00 | C2 | |
USB Host Cable | ||||
CBL-USBCHST015-M12 | USB C Host Cabe, M12 Connector, 1.5M | $77.00 | C2 | |
CBL-USBCHST035-M12 | USB C Host Cabe, M12 Connector, 3.0M | $99.00 | C2 | |
USB Cable Splitter | ||||
ADP-USB0010-M12 | USB Cable Splitter | $205.70 | C2 | |
Ethernet Cables | ||||
CBL-ENT00101-M1200 | Ethernet Cable, M12 Connector, 1M | $143.00 | C2 | |
CBL-ENT00301-M1200 | Ethernet Cable, M12 Connector, 3M | $149.60 | C2 | |
CBL-ENT00501-M1200 | Ethernet Cable, M12 Connector, 5M | $156.20 | C2 | |
CBL-ENT01501-M1200 | Ethernet Cable, M12 Connector, 15M | $310.20 | C2 | |
[E] GPIO | ||||
BLOK-M122PN-01 | ||||
BLOC-GP00500-M12M12A | ||||
CBL-GP0050-M12M12A | ZEBRA GPIO CABLE, M12 to M12 Cable A-Coded - 5m | $198.00 | C2 | |
[F] Mounting Hardware | ||||
MNT-100100MM-01 | ZEBRA VESA WALL MOUNT or POLE | $209.00 | C2 | |
ADP-200100MM-01 | ZEBRA HEAVY DUTY MOUNT (ADAPTOR PLATE) | $38.50 | C2 | |
[G] Communications Antennas | ||||
ANT-WLANIP0-90SMA | ZEBRA ANTENNA, ARTICULATING INDOOR WLAN | $25.30 | C2 | |
ANT-WLANIP6-90SMA | ZEBRA ANTENNA, ARTICULATING OUTDOOR WLAN | $94.60 | C2 | |
ANT-4G5GGPS8010-SMA | ZEBRA FXR90 4G/5G/GPS ANENNA, 4 x SMA - 1m | $360.80 | C2 |
