Zebra - Intelligent Cabinets


Optimize how your enterprise mobile devices are stored, accessed, tracked, and managed to harness the most efficient use of devices and workers with Zebra Intelligent Cabinets and Access Management System.

To maximize the use and productivity of your devices — such as mobile computers, mobile printers, tablets, and scanners — Zebra Intelligent Cabinets offer an adaptable portfolio of end-to-end device storage solutions, software automation, security applications, as well as ongoing support.

Streamline workflows and staff efficiencies with Zebra Access Management System by providing rapid access to devices with Zebra’s purpose-built storage designs. Cabinets with software-driven smart technology allow you to automate workflows and minimize worker hours for improved productivity. Tracking capabilities link assets with users to track devices and cultivate a sense of worker ownership and accountability, helping to prevent device repairs and replacements from abuse and loss. And by consolidating assets and connecting them for battery charging, software updates and health checks, the long-term performance of each device can be maximized with every device ready for optimum use during every shift.

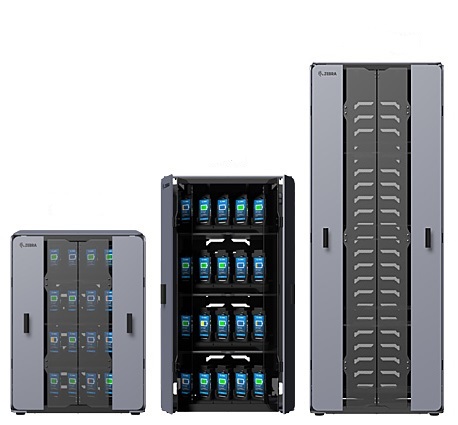

The modular and scalable range is available in three options: Small, Midi, X-Large.

Features

  • Integrated solution for storing and managing Zebra devices
  • Three sizes to accommodate between 20 and 50 devices
  • Bi-fold doors for easy access
  • RF friendly materials so devices maintain Wi-Fi connection inside the cabinet
  • Compatible with Zebra Access Management Systems (ZAMS) software & web-based portal
  • Professional services offering for end-to-end support

Specifications

SizeSmallMidiX-Large
Physical Characteristics
Dimensions 1012 x 700 x 437 mm 1312 x 700 x 437 mm 1912 x 700 x 437 mm
Material Mild Steel, High Pressure Laminate Mild Steel, High Pressure Laminate Mild Steel, High Pressure Laminate
Mounting Options Wall, floor or mounted on base stand, Secured to wall Wall, floor or mounted on base stand, Secured to wall Floor mount, Secured to wall
Number of Base Shelves 2 3 5
Optional Stadium Shelves 2 3 5
Device Capacity20 30 50
Supported Devices Zebra mobile computers, tablets, barcode scanners and printers Zebra mobile computers, tablets, barcode scanners and printers Zebra mobile computers, tablets, barcode scanners and printers
Physical security Cabinet lock Cabinet lock Cabinet lock
Power
Power Supply Power distribution unit provided. Internal power strip Power distribution unit provided. Internal power strip Power distribution unit provided. Internal power strip
Software
Software Options Zebra Access Management System (ZAMS) Zebra Access Management System (ZAMS) Zebra Access Management System (ZAMS)


Ordering Information and Pricing
Part Number Model Number Description RRP
Inc GST
T
%
[A] Cabinets
CS-CAB-2-FLTPK-B-A ZEBRA INTELLIGENT CABINET SMALL 2-LEVELS C3
CS-CAB-3-FLTPK-B-A ZEBRA INTELLIGENT CABINET MIDI 3-LEVELS C3
CS-CAB-4-FLTPK-B-A ZEBRA INTELLIGENT CABINET LARGE 4-LEVELS C3
[B] Cables
CS-CAB-AU-MLEAD ZEBRA INTELLIGENT CABINET MAIN AC LINE CORD ANZ C3
CS-CAB-IEC ZEBRA INTELLIGENT CABINET CABLE IEC C14 TO C13 .5M C3
CS-CAB-IEC-L ZEBRA INTELLIGENT CABINET CABLE IEC C14 TO C13 1M C3
CS-CAB-MNTG-C6 ZEBRA MNT BRKT FOR CC6000 LANDSCAPE C3
CS-CAB-MNTG-C6-R2
CS-CAB-SHV ZEBRA INTELLIGENT CABINET ADDITIONAL SHELF SML-XL C3
CS-CAB-SHV-SS ZEBRA INTELLIGENT CABINET ADDITIONAL STADIUM SHELF C3
CS-CC6-IEC ZEBRA CABLE IEC C14 TO C7 FOR CC6000 EMEA C3
[C] Subscription Fee
CS-ACS-MGTB-1 ZEBRA ACCESS MANAGEMENT SYSTEM FEE 1YR V
CS-ACS-MGTB-3 ZEBRA ACCESS MANAGEMENT SYSTEM FEE 3YR V
CS-ACS-MGTB-5 ZEBRA ACCESS MANAGEMENT SYSTEM FEE 5YR V
