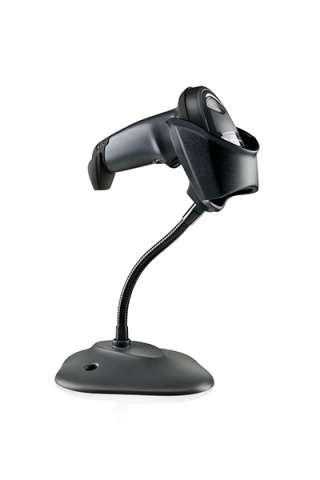

Zebra - LI2208
Hand Held Bar Code Reader
 |
Zebra’s LI2208 scanner is a next generation high-performance and affordable handheld scanner, designed to help you increase productivity at the retail point of sale, in the stockroom, manage medications and to help control inventory. The LI2208 builds on Zebra's most popular scanner ever, the LS2208, with the same reliability and ergonomics combined with enhanced features such as extended range and support for mobile bar codes. With a best-in-class linear imager, you can count on unparalleled scanning performance on every bar code, every time.
|
|---|
Specifications
| Mechanical | |
|---|---|
| Dimensions | 99mm L x 67mm W x 160mm H |
| Weight | 140 g |
| Environmental | |
| Operating Temp. | 0 to 50° C |
| Storage Temp. | -40 to 70° C |
| Relative Humidity | 5% to 95% (non-condensing) |
| Shock | Multiple 150cm (5ft) drops onto concrete |
| Electrical | |
| Voltage Range | 5.0 VDC ±10% |
| Operating Current (nominal) | 165 mA(typical) 40 mA(standby) |
| Environmental Sealing | IP42 | Optical |
| Scan Rate | 547 scans per second (nominal) |
| Pitch | ±65° |
| Skew | ±65° |
| Tilt | ±45° |
| Light Source | 617 nm visible LED |
| Motion Tolerance | 635 mm per second |
| Ambient Light | Max 108,000 lux |
| Print Contrast Ratio | 15% minimim reflective difference |
| Read Distance | 38mm to 1.4m Depending on barcode Upto 6m with 100 mil Reflective |
| Symbologies Decoded | UPC/EAN, Bookland EAN, Bookland ISBN, UCC Coupon Extended Code, EAN Code 128, ISBT 128, ISBT Concatenation, Code 39, Interleaved 2 of 5 (ITF), Discrete 2 of 5 (DTF), Codabar, GS1 DataBar including 14, Limited & Expanded |
| Communications | |
| Interfaces Supported | USB, RS232, Keyboard Wedge, IBM RS485 |
| Certifications | |
| Regulatory | EMC FCC Part 15 Class B, ICES 003 Class B, IEC 60601-1-2 Environmental RoHS Directive 2002/95/EEC Electrical Safety C22.2 No. 60950-1, EN 60950-1, IEC 60950-1, UL 60950-1 LED Class 1 |
| Part Number | Model Number | Description | RRP Inc GST |
T % |
|---|---|---|---|---|
| [A] Zebra LI2208 Kit | ||||
| LI2208B-USB/S | ||||
| [B] Replacement Parts - Interface Cables | ||||
| CBA-U01-S07ZAR | ||||
