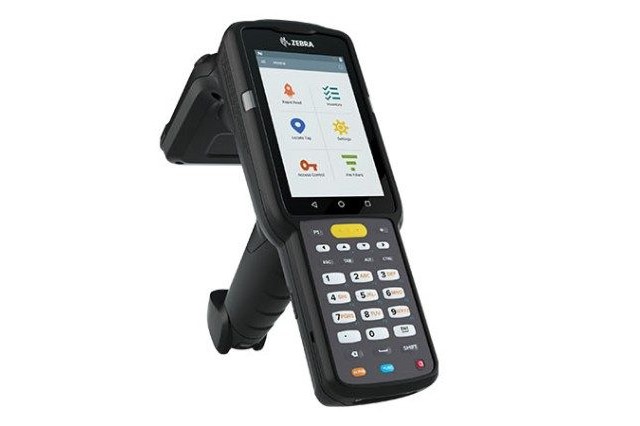

Zebra - MC3390R
Hand Held RFID Warehouse Terminal


The Zebra MC3300 Series makes it easy to migrate to the next generation in mobility business platforms — Android. This is the same operating system that took the consumer world by storm and is ready for business, providing a well proven mobility platform and guaranteed security support you can count on. This next generation of the highly successful MC3000 series offers everything you need to run your business today and tomorrow. You can run current terminal emulation (TE) applications right out of the box — or reformat to create intuitive screens that utilize touch to simplify the user experience. A unique toolbox of powerful applications — known as Zebra’s Mobility DNA — not only makes deployment and application development easier than ever, it also allows you to add new capabilities to your MC3300 mobile computers to streamline everyday processes and improve worker productivity. When it comes to features and options, this best-in-class device delivers, offering a light weight ergonomic design, large touchscreen, a variety of keypad options, unmatched scanning performance and much more. And with its multiple form factors, the MC3300 gives you unmatched versatility and flexibility from the warehouse to the retail store. The MC3300 — the easy way to power your business with advanced Android mobile computing.

The MC3330R is one of the lightest devices in its class with the right ergonomics for all-day comfort. Superior RFID read performance and receiver sensitivity enable lightning fast capture of even the most challenging RFID tags. Workers can read both RFID tags and barcodes with point and shoot simplicity. And you can create intuitive Android applications that use the MC3330R’s powerful computing platform, large touchscreen, and physical keypad.

MC3390xR Long-range UHF RFID Reader with best-in-class RFID read range
Now introducing the next evolution in long-range RFID readers. The MC3390R integrated long-range handheld UHF/RAIN RFID reader brings a new level of efficiency and accuracy to inventory management, order fulfilment, cross-docking and more. You get the same proven lightweight ergonomic design of the successful MC3300 family, now with Zebra’s latest, most powerful and secure Android architecture. The ultra-powerful processor, integrated NFC reader and 35% larger capacity battery boost task speed and ease of use. The integrated long range antenna delivers best-in-class RFID read range and higher throughput, so inventory counts can be accomplished more quickly and accurately. With Zebra’s signature rugged design, the MC3390R is built for use in light-industrial environments. And you can create intuitive Android applications that use the MC3390R’s powerful computing platform, large touchscreen and physical keypad.

Features

  • Highly configurable, offering terminal emulation, browser or custom client applications
  • Zebra’s Mobility DNA Tools
  • Best-in-class RFID read range and accuracy
  • Rugged multi-touch capacitive touch panel
  • Choice of 29 key Numeric, 38 key Function/Numeric or 47 key Alpha keypad
  • Choice of Standard or Extended Range 2D Imager
  • Advanced ergonomic design for comfort
  • 12 Month Warranty with Zebra OneCare extension options

Specifications

 MC3330RMC3390R
Physical Characteristics
Dimensions
164 (l) x 75 (w) x 211 (d) mm
164 (l) x 96 (w) x 271 (d) mm
Weight
665g
743g, With SE4770 Barcode Reader
769g, With SE4850 Barcode Reader
Shock Protection
1.5m drop to concrete across temperature range
1,000 (1.0 m) tumbles
Environmental Characteristics
Operating Temperature
-20º to 50ºC
Storage Temperature
-40º to 70ºC
Humidity
5 to 95% (Non-Condensing)
Hardware
Processor
Qualcomm 8056 1.8 GHz Hexa-core 64-bit
Qualcomm 660 2.2 GHz Octa-core
Display/Touch Panel
102mm (4 in) WVGA(800x480 Pixel) colour LCD with backlight, With Gorilla Glass capacitive touch panel
Keypad Options
Numeric (29 Key), Function-Numeric (38 Key), Alpha-Numeric (47 Key)
Barcode Scanning Options
SE4750 Standard Range Imager with LED Aimer
SE4770 Standard Range Imager with LED Aimer
SE4850 Extended Range Imager
Camera
Not available
Memory
4GB RAM, 32GB Flash
WiFi Radio
IEEE 802.11 a/b/g/n/ac/d/h/i/r/w; Wi-Fi certified
IEEE 802.11 a/b/g/n/ac/d/h/i/r/k/v2/w/mc2; Wi-Fi certified; IPv4, IPv6, 2x2 MU-MIMO
Radio Security
WEP, WPA/WPA2
(Personal and Enterprise)
WEP, WPA/WPA2/WPA3
(Personal and Enterprise)
Bluetooth
Class 2, Bluetooth v4.1 with BR/EDR and BLE
Class 2, Bluetooth v5.0 with BR/EDR and BLE
RFID
NFC
-
Integrated NFC for simple, split-second pairing
UHF
EPC Class 1 Gen2; EPC Gen2 V2; ISO-18000-63
RFID Engine
Zebra Proprietary Radio Technology
Read Rate
900+ tags/sec
Nominal Read Range
Upto 6m
Upto 18m
RFID Power Output
0 dBm to +30 dBm
RFID Antenna Type
Integrated Circular Polarized
Integrated Linear Polarized
Frequency Range
918-928MHz
Power
Battery Type
High Capacity 3.6V LiIon
Battery Capacity
5200mAh Battery
7000mAh Battery
Also compatible with 5200mAh Battery

Ordering Information and Pricing
Part Number Model Number Description RRP
Inc GST
T
%
[A] MC3300R Terminals
MC3330r Series - with Circular Polorised Antenna
MC333U-GJ4EG4WR ZEBRA PDT MC3330XR PREM 47KY 2D-SR 4/32 AD RFID $4,301.00 C2
MC3390r Series - with Long Range Linear Antenna
MC339U-GE4EG4WR ZEBRA PDT MC3390XR 47KY 2D-ER 4/32 AD/GMS RFID/L $5,258.00 C2
MC339U-GF4EG4WR ZEBRA PDT MC3390XR 47KY 2D-MR 4/32 AD/GMS RFID/L $4,642.00 C2
[B] MC3300R Terminal Kits with Dock
MC333U-GJ4EG4WR-1SKT ZEBRA PDT MC3330XR PREM 47KY 2DSR 4/32 RFID + DOCK $4,686.00 C2
MC339U-GE4EG4WR-1SKT
MC339U-GF4EG4WR-1SKT ZEBRA PDT MC3390XR 47K 2DMR 4/32 GMS RFID/L + DOCK $5,027.00 C2
[C] Spare Battery
BTRY-MC33-7BLE-01 ZEBRA BATTERY EXTENDED MC33 DEVICE-TRACKER 1PK $231.00 C3
[D] Dock Options
Single Dock (Select All)
CRD-MC33-2SUCHG-01 ZEBRA DOCK CHARGE/COMMS 1-BAY MC33 $301.40 C2
PWR-BGA12V50W0WW PS12RS416 ZEBRA PSU 12V/4.16A 50W $74.80 C2
CBL-DC-388A1-01 ZEBRA DC LINE CORD FOR SINGLE SLOT CRADLE $15.40 C2
2-5199-020-0 CA199-2 IEC Power C13 to AU 3 pin Plug $8.80 A
Multi Dock - Charge Only (Select All)
CRD-MC33-5SCHG-01 ZEBRA MULTIDOCK CHARGE ONLY 5-BAY MC33 $666.60 C2
PWR-BGA12V108W0WW PS12RS9000 ZEBRA PSU AC 12V/9A 108W $160.60 C2
CBL-DC-381A1-01 ZEBRA CABLE POWER DC PWR-BGA12V1080WW MULTIDOCK $39.60 C2
2-5199-020-0 CA199-2 IEC Power C13 to AU 3 pin Plug $8.80 A
[E] Charge Cable
CBL-MC33-USBCHG-01 ZEBRA CABLE CHARGE/COMMS MC33 USB CLIENT $129.80 C2
Holsters
SG-MC3021212-01R ZEBRA HOLSTER FABRIC HANDLE MC22/MC27/MC32/MC33 $107.80 C2
11-08062-02R ZEBRA BELT UNIVERSAL RUGGED BELT FOR HIP HOLSTER $53.90 C3
58-40000-007R ZEBRA SHOULDER STRAP UNIVERSAL $24.20 C2
[F] Replacement Parts
SG-TC7X-STYLUS-03 ZEBRA STYLUS PLUS TETHER MC33/TC5X/TC7X/TC8X 3PK $69.30 C2
[G] Accessories
SG-MC33-RBTG-01 ZEBRA RUBBER BOOT MC33 $16.50 C2
SG-MC33-RBTG-02 ZEBRA RUBBER BOOT MC3300R RFID GUN $16.50 C2
SG-MC33-RBTG-03 ZEBRA RUBBER BOOT MC33 ROTATING HEAD RFID GUN $16.50 C2
MISC-MC33-SCRN-01 ZEBRA SCREEN PROTECTOR TEMPERED GLASS MC33 PK/5 $69.30 C2
PWR-WUA5V12W0AU PS5RS2500W ZEBRA PSU AC 2.5A 5V TC51/TC56/TC57 WITH AU PLUG $37.40 C2
SG-TC7X-STYLUS-03 ZEBRA STYLUS PLUS TETHER MC33/TC5X/TC7X/TC8X 3PK $69.30 C2
[H] Extended Warranty Service Contracts
Z1AE-MC33XX-3C03 ZEBRA ONECARE ESSENTIAL MC33XX 3YR COMP+COMM+DASH $609.40 V
Z1AE-MC33XX-5C03 ZEBRA ONECARE ESSENTIAL MC33XX 5YR COMP+COMM+DASH $998.80 V
[I] Notes
(1) Contact UMD for additional pricing sales@umd.com.au
(2) An extensive range of off-the-shelf peripherals are also available.
