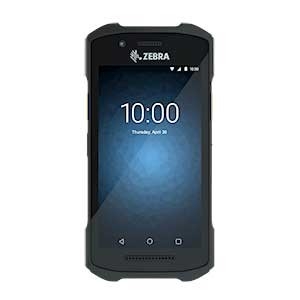

Zebra - TC21/26 Series
Enterprise Digital Assistant
 |
The Zebra TC21 and TC26 Touch Computers build on the successful TC5x series Android devices, adding a new platform and new capabilities to deliver the ultimate in enterprise-class touch computing in a product that provides a cost effective alternative while maintaining rugged reliability. You get the ultimate user experience - the simplicity of Android with all the business features workers need to maximise productivity and minimise process cycle times. You get the ultimate technology advancements on a cutting edge platform, maximising the benefits of mobility today, with the future proofing you need to serve your business tomorrow. You get the ultimate collection of value-added apps, Mobility DNA, with complementary solutions that deliver unparalleled functionality. Add optional Visibility Services to offer the ultimate in device management capabilities to maximise device value.
Features:
|
|---|
Specifications
| Physical Characteristics | |
|---|---|
| Length | 158mm |
| Width | 79mm |
| Depth Standard Battery Extended Battery | 13.7mm 17.3 |
| Weight Standard Battery | 236g |
| Environmental Characteristics | |
| Operating Temperature | -10ºC to +50ºC |
| Storage Temperature | -30ºC to +70ºC |
| Relative Humidity | 5% to 95% (non-condensing) |
| Drop Spec | 1.2m to concrete |
| Tumble Spec | 300 500mm tumbles |
| Sealing | IP67 Options |
| Vibration | 4 g’s PK Sine (5 Hz to 2 kHz); 60 minute duration per axis |
| Software | |
| Operating System | Android 10 with built in support for a future Android release |
| Hardware | |
| Microprocessor | Snapdragon 660 Octa-core 1.8GHz |
| RAM | 3GB or 4GB RAM |
| Flash ROM | 32GB or 64GB |
| Expansion Slot | User accessible MicroSD up to 128GB SDHC TC26 only: 1 nano sim |
| Power | |
| Battery Type | Rechargeable Lithium Ion HD Battery |
| Battery capacity Standard Battery Extended Battery | 4100 mAh 5400 |
| Display | |
| Size | 5.0" (127mm), High Definition (1280 x 720) |
| TouchScreen | Capacitive Touch Panel; multi-touch |
| Communications/Interfaces | |
| Keypad | On-screen |
| Barcode Scanner | SE4100 1D/2D imager SE4710 1D/2D imager No Scanner |
| Camera | Rear 13MP Autofocus with LED Flash and Optional 5MP Front |
| WWAN (TC26 Only) | GSM: 850/900/1800/1900 UMTS: B1/B2/B3/B4/B5/B8/B9/B19 LTE-FDD: B1/B2/B3/B4/B5/B7/B8/B19/B20/B28 LTE-TDD: B38//B40/B41 LTE: Category 6 |
| WLAN | IEEE 802.11 a/b/g/n/ac/d/h/i/r/k/v |
| GPS | TC57 Only: Integrated Autonomous Concurrent GPS; GLONASS; Gallileo; BeiDou; A-GPS, Supports IZAT XTRA |
| Bluetooth | Class 2, Bluetooth v5.0; Bluetooth Low Energy (BLE) |
| NFC | MIFARE, ISO 14443 A&B , FeliCa, ISO 15693 and NFC Forum supported cards; Read range up to 50 mm |
| Part Number | Model Number | Description | RRP Inc GST |
T % |
|---|---|---|---|---|
| [A] Zebra TC21 - Wifi Only | ||||
| TC210K-01D221-A6 | ZEBRA PDT TC21 NO/SCANNER 3/32 WLAN CAM STD AD10 | $1,034.00 | C1 | |
| TC210K-01D241-A6 | ZEBRA PDT TC21 NO/SCANNER 3/32 WLAN CAM EXT AD10 | $1,100.00 | C1 | |
| TC210K-01B232-A6 | ZEBRA PDT TC21 2D-SE4100 3/32 WLAN CAM EXT AD10 | $1,188.00 | C1 | |
| TC210K-01A422-A6 | ||||
| TC210K-01A423-A6 | ZEBRA PDT TC21 2D-SE4710 4/64 WLAN CAM 8-PIN AD10 | $1,386.00 | C1 | |
| TC210K-01A222-A6 | ZEBRA PDT TC21 2D-SE4710 3/32 WLAN CAM STD AD10 | $1,221.00 | C1 | |
| Version with 8-Pin I/O Connector is required for the RFD40 (..3-A6) | ||||
| [B] Zebra TC26 - Wifi and 4G/LTE | ||||
| TC26BK-11A222-A6 | ZEBRA PDT TC26 2D-SE4710 3/32 4G CAM STD AD | $1,364.00 | C1 | |
| TC26BK-11A423-A6 | ZEBRA PDT TC26 2D-SE4710 4/64 4G CAM STD 8-PIN AD | $1,518.00 | C1 | |
| TC26BK-11A442-A6 | ZEBRA PDT TC26 2D-SE4710 4/64 4G CAM EXT AD | $1,529.00 | C1 | |
| TC26BK-11B232-A6 | ZEBRA PDT TC26 2D-SE4100 3/32 4G CAM EXT AD | $1,320.00 | C1 | |
| TC26BK-11B412-A6 | ZEBRA PDT TC26 2D-SE4100 4/64 4G CAM STD AD | $1,364.00 | C1 | |
| Version with 8-Pin I/O Connector is required for the RFD40 (..3-A6) | ||||
| [C] Charging Options | ||||
| Single Dock (Requires Power Supply, DC Line Cord and AUS Power Cable) | ||||
| CRD1S0T-RFD40-TC2X-CHG-1R | ZEBRA DOCK DESK CHARGE 1-BAY RFD40 | $242.00 | C2 | |
| CBL-DC-388A1-01 | ZEBRA DC LINE CORD FOR SINGLE SLOT CRADLE | $15.40 | C2 | |
| PWR-BGA12V50W0WW | PS12RS416 | ZEBRA PSU 12V/4.16A 50W | $74.80 | C2 |
| 2-5199-020-0 | CA199-2 | IEC Power C13 to AU 3 pin Plug | $8.80 | A |
| Single Charge Only Dock (Requires Power Supply and AUS Power Cable) | ||||
| CRD-TC2Y-BS1CO-01 | ZEBRA DOCK DESK CHARGE ONLY 1-BAY TC21/TC26 | $143.00 | C2 | |
| PWR-WUA5V12W0AU | PS5RS2500W | ZEBRA PSU AC 2.5A 5V TC51/TC56/TC57 WITH AU PLUG | $37.40 | C2 |
| Charge Cable | ||||
| CBL-TC5X-USBC2A-01 | ZEBRA CABLE DATA/POWER USB-C TO USB-A 1M | $16.50 | C2 | |
| MultiDock Options: (Requires Power Supply, DC Line Cord and AUS Power Cable) | ||||
| CRD-TC2Y-BS1CO-01 | ZEBRA DOCK DESK CHARGE ONLY 1-BAY TC21/TC26 | $143.00 | C2 | |
| CRD-TC2Y-BS54B-01 | ZEBRA MULTIDOCK CHARGE/BATT 4-BAY TC21/TC26 | $949.30 | C2 | |
| CRD-TC2Y-SE5ET-01 | ZEBRA DOCK DESK CHARGE/ETH 5-BAY TC21/TC26 | $1,386.00 | C2 | |
| PWR-BGA12V108W0WW | PS12RS9000 | ZEBRA PSU AC 12V/9A 108W | $160.60 | C2 |
| CBL-DC-381A1-01 | ZEBRA CABLE POWER DC PWR-BGA12V1080WW MULTIDOCK | $39.60 | C2 | |
| 2-5199-020-0 | CA199-2 | IEC Power C13 to AU 3 pin Plug | $8.80 | A |
| Battery Charger (Requires Power Supply, DC Line Cord and AUS Power Cable) | ||||
| SAC-TC2Y-20SCH-01 | ZEBRA MULTIDOCK BATTERY 20-BAY TC21/TC26 | $2,046.00 | C2 | |
| PWR-BGA12V50W0WW | PS12RS416 | ZEBRA PSU 12V/4.16A 50W | $74.80 | C2 |
| 2-5199-020-0 | CA199-2 | IEC Power C13 to AU 3 pin Plug | $8.80 | A |
| PWR-BGA12V108W0WW | PS12RS9000 | ZEBRA PSU AC 12V/9A 108W | $160.60 | C2 |
| CBL-DC-388A1-01 | ZEBRA DC LINE CORD FOR SINGLE SLOT CRADLE | $15.40 | C2 | |
| 2-5199-020-0 | CA199-2 | IEC Power C13 to AU 3 pin Plug | $8.80 | A |
| [D] Battery | ||||
| BTRY-RFD49-70MA1-01 | ZEBRA BATTERY STANDARD 7000MAH RFD40/RFD90 | $220.00 | C3 | |
| [E] Accessories | ||||
| SG-TC2Y-BOOT-01 | ZEBRA PROTECTIVE BOOT INTEGRATED H/STRAP TC21/TC26 | $88.00 | C2 | |
| SG-TC2X-ARMNT-01 | #N/A | #N/A | C2 | |
| SG-TC2X-BOOT-01 | #N/A | #N/A | C2 | |
| SG-TC2Y-ARMNT-01 | ZEBRA WEARABLE ARM MOUNT STD/EXT BATT TC21/TC26 | $135.30 | C2 | |
| 50-12500-066 | ZEBRA WRIST STRAP LANYARD | $4.40 | C2 | |
| PWR-WUA5V12W0AU | PS5RS2500W | ZEBRA PSU AC 2.5A 5V TC51/TC56/TC57 WITH AU PLUG | $37.40 | C2 |
| [F] Extended Maintenance | ||||
| Z1AE-TC21XX-3C00 | ZEBRA ONECARE ESSENTIAL TC21XX 3YR COMP | $454.30 | V | |
| Z1AE-TC26XX-3C00 | ZEBRA ONECARE ESSENTIAL TC26XX 3YR COMP | $454.30 | V | |
