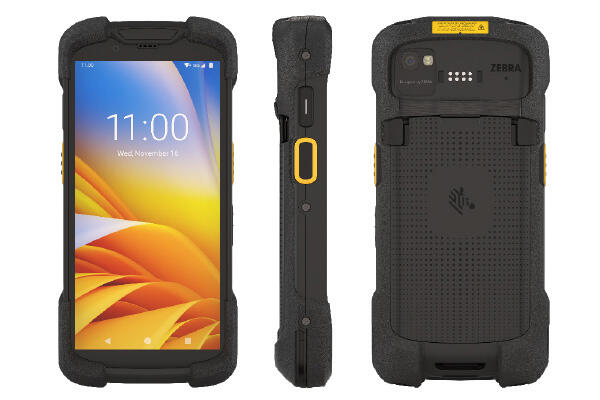

Zebra - TC73/TC78 Series
Mobile Touch Computer
 |
The Zebra WiFi only TC73 and Cellular capable TC78 are a new generation of Zebra mobile computers designed for a new generation of mobile solutions. The rugged, thinner and lighter TC73/TC78 supports streaming video, video calls, intuitive multimedia-rich and augmented reality apps that enable new, more effective workflows with more processing power for simultaneous app support. With an advanced 6-inch display, more flexible battery options, comprehensive wireless network support for unmatched performance and reliability and Bluetooth 5.2 for superior accessory performance are among the advances introduced in the TC73/78, along with the next level in scanning performance with the SE55 Advanced Range scan engine, these units cover all the bases as an ultra-rugged mobile computer, re-imagined for the new age of mobility. Advanced manufacturing and materials technologies enable a more rugged design, without adding weight or thickness, built to handle 10 ft./3.05 m drops to concrete and 2,000 consecutive tumbles. With IP65 and IP68 sealing options it’s dustproof and waterproof — submerge it in water and spray it down with a hose. Corning Gorilla Glass protects the display and imager window with maximum scratch-resistance and shatter-proofing, two of the most crucial and vulnerable features. The advanced industrial design and ergonomics bring superior comfort to practically any size hand, minimizing the effort required to hold and use these devices through exceptional balance, a grip area that is nearly 20% thinner and proper key placement and size. Features
|
|---|
Specifications
| Physical Characteristics | |
|---|---|
| Length | 176.8mm |
| Width | 85.8mm |
| Depth | 28.4mm |
| Weight | 349g (With Standard Battery) |
| Environmental Characteristics | |
| Operating Temperature | -20ºC to +50ºC |
| Storage Temperature | -40ºC to +70ºC |
| Relative Humidity | 5% to 95% (non-condensing) |
| Drop Spec | 3.0m to concrete at room temperature 2.4m over full operating range |
| Tumble Spec | 2000 1.0mm tumbles |
| Sealing | IP65 or IP68 Options |
| Electrostatic Discharge (ESD) | ±15kV Air Discharge, ±8kV Direct Discharge, ±8kV Indirect Discharge |
| Software | |
| Operating System | Upgradable to Android 16 |
| Hardware | |
| Microprocessor | Qualcomm 6490 Octa-core 2.7GHz |
| RAM | 4GB & 8GB Options |
| Flash ROM | 64GB & 128GB Options |
| Expansion Slot | User accessible MicroSD supports upto 2TB |
| Power | |
| Battery Type | Rechargeable Lithium Ion Battery with PowerPrecision+ for real-time battery metrics |
| Battery capacity: | Standard: 4680 mAh Extended: 7000 mAh BLE Battery: 4680 mAh QI Compatible Wireless: 4680 mAh Warm Swap and Hot Swap Options |
| Display | |
| Size | 6.0" (152mm), High Definition (1080 x 2160) |
| TouchScreen | Multi Mode Capacitive Input with stylus, finger and gloved fingertip input With Gorilla Glass and Water Droplet Rejection, fingerprint resistant anti smudge coating |
| Communications/Interfaces | |
| Keypad | On-screen |
| Barcode Scanner | SE4770 Standard Range Imager, or SE55 Advanced Range Imager |
| Camera | Rear 16MP Autofocus with LED Flash and 8MP Front |
| WWAN (TC78 Only) | 5G |
| WLAN | IEEE 802.11 a/b/g/n/ac/d/h/i/r/k/v/w/mc/ax; 2X2 MU-MIMO Wi-Fi 6E (802.11ax) certified; IPv4, IPv6, Dual Band Simultaneous |
| GPS | TC78 Only: Integrated Autonomous Concurrent GPS; GLONASS; Galileo; BeiDou; QZSS Dual-Band GNSS - Concurrent + L5/E5a/BDSB2a; A-GPS; Supports XTRA |
| Bluetooth | Class 2, Bluetooth v5.2; Secondary Bluetooth Low Energy (BLE) for beaconing within BLE Battery |
| NFC | ISO 14443 Type A and B; F; FeliCa and ISO 15693 cards; Card Emulation via Host; Contactless Payment Support, ECP 1.0 and ECP 2.0 poling support, Apple VAS certified, NFC Forum Certified and Google Smart Tap Ready |
| Part Number | Model Number | Description | RRP Inc GST |
T % |
|---|---|---|---|---|
| [A] Zebra TC73 - Wifi Only | ||||
| TC7301-0T1J4B1000-A6 | ZEBRA PDT TC73 2D-SE4770 4/64 CAM WLAN AD/GMS | $4,477.00 | C3 | |
| TC7301-0T1K4B1000-A6 | ZEBRA PDT TC73 2D-SE55 4/64 CAM WLAN AD/GMS | $4,609.00 | C3 | |
| TC7301-0T1K6E200A-A6 | ZEBRA PDT TC73 PREM 2D-SE55 8/128 CAM WLAN AD/GMS | $5,478.00 | C3 | |
| [B] Zebra TC78 - Wifi and 5G | ||||
| TC78B1-3T1K4B1A80-A6 | ZEBRA PDT TC78 2D-SE55 4/64 CAM 5G AD/GMS | $5,071.00 | C3 | |
| TC78B1-3T1K6B1A80-A6 | ZEBRA PDT TC78 2D-SE55 8/128 CAM 5G W/LESS AD/GMS | $5,511.00 | C3 | |
| TC78B1-3T1K6B1B80-A6 | ZEBRA PDT TC78 2D-SE55 8/128 CAM 5G AD/GMS | $5,544.00 | C3 | |
| TC78B1-3T1K6B1E80-A6 | ZEBRA PDT TC78 2D-SE55 8/128 CAM 5G 1.5/BAT AD/GMS | $5,720.00 | C3 | |
| TC78B1-3T1K6E2A8A-A6 | ZEBRA PDT TC78 PREM 2D-SE55 8/128 CAM 5G AD/GMS | $5,940.00 | C3 | |
| TC78B1-3T1K6E2A8E-A6 | ZEBRA PDT TC78 2D 8/128 CAM 5G AD/GMS CERT-PARCEL | $6,501.00 | C2 | |
| [C] Charging Options | ||||
| Single Dock Kit - Charge Only | ||||
| CRD-NGTC7-2SC1B | ZEBRA DOCK DESK KIT CHARGE ONLY 1-BAY TC73/TC78 | $506.00 | C2 | |
| 2-5199-020-0 | CA199-2 | IEC Power C13 to AU 3 pin Plug | $8.80 | A |
| Single Dock Kit - USB/Ethernet Capable | ||||
| CRD-NGTC7-2SE1B | ZEBRA DOCK DESK KIT ETH/CHARGE 1-BAY TC73/TC78 | $638.00 | C2 | |
| 2-5199-020-0 | CA199-2 | IEC Power C13 to AU 3 pin Plug | $8.80 | A |
| Single USB Dock Ethernet Upgrade Module | ||||
| MOD-MT2-EU1-01 | ZEBRA USB TO ETH MODULE FOR CRADLES | $176.00 | C2 | |
| KT-TC51-ETH1-01 | ZEBRA ADAPTER SHAREPOINT USB TO ETH TC51 | $233.20 | C2 | |
| Workstation Connect Cradle | ||||
| CRD-NTC7X-1SNWS-01 | ||||
| Required for Workstation Connect Cradle | ||||
| PWR-BGA12V50W0WW | PS12RS416 | ZEBRA PSU 12V/4.16A 50W | $79.20 | C2 |
| CBL-DC-388A2-01 | ZEBRA DC LINE CORD FOR SINGLE LEVEL VI PSU | $22.00 | C2 | |
| 2-5199-020-0 | CA199-2 | IEC Power C13 to AU 3 pin Plug | $8.80 | A |
| 5-Slot Charge Dock Kit | ||||
| CRD-NGTC7-5SC5D | ZEBRA MULTIDOCK KIT CHARGE ONLY 5-BAY TC73/TC78 | $1,683.00 | C2 | |
| 2-5199-020-0 | CA199-2 | IEC Power C13 to AU 3 pin Plug | $8.80 | A |
| 4-Slot Charge Dock Kit with 4-slot Battery charge slots | ||||
| CRD-NGTC7-5SC4B | ZEBRA MULTIDOCK KIT CHARGE+BATT 4-BAY TC73/TC78 | $1,958.00 | C2 | |
| 2-5199-020-0 | CA199-2 | IEC Power C13 to AU 3 pin Plug | $8.80 | A |
| 5-Slot Ethernet Charge Dock Kit | ||||
| CRD-NGTC7-5SE5D | ZEBRA MULTIDOCK KIT ETH/CHARGE 5-BAY TC73/TC78 | $1,958.00 | C2 | |
| 2-5199-020-0 | CA199-2 | IEC Power C13 to AU 3 pin Plug | $8.80 | A |
| [D] Replacement Batteries | ||||
| BTRY-NGTC5TC7-44MA-01 | ZEBRA BATTERY STANDARD 4400MAH 1/PK TC53/TC58 | $209.00 | C3 | |
| BTRY-NGTC5TC7-66MA-01 | ZEBRA BATTERY EXTENDED 6600MAH TC53/TC58/TC73/TC78 | $297.00 | C3 | |
| BTRY-NGTC5TC7-44MAWC-01 | ZEBRA BATTERY 4680MAH WIRELESS TC58 | $264.00 | C3 | |
| BTRY-NGTC5TC7-44MABLE-01 | ZEBRA BATTERY 4400MAH BLE TC53/TC58 | $242.00 | C3 | |
| BTRY-NGTC5TC7-PYMT | ||||
| [E] Vehicle Mount Accessories | ||||
| CRD-TC78-WCVC-01 | ZEBRA CRADLE VEHICLE CHARGING/WIRELESS TC78 | $836.00 | C2 | |
| CRD-TC7NG-NCCD-01 | ZEBRA VEHICLE HOLDER NO-CHARGE TC7NG | $220.00 | C2 | |
| The Vehicle cradle options can be configured in a number of different ways and can work with a number of different cables and accessories. Contact UMD Sales for a configuration suitable to your application. | ||||
| [F] Other Accessories | ||||
| CHG-AUTO-USB1-01 | ||||
| HS3100-OTH | ZEBRA AUDIO HEADSET RUGGED HS3100 OTH BT | $820.60 | C2 | |
| Other headset styles available | ||||
| SG-NGTC5TC7-HDSTP-03 | ZEBRA HANDSTRAP TC53/TC58 3/PK | $154.00 | C2 | |
| SG-STYLUS-TCX-MTL-03 | ZEBRA STYLUS PASSIVE MICRO-KNIT HYBR FIBER TIP 3PK | $39.60 | C2 | |
| SG-TC5NGTC7NG-TETHR-03 | ZEBRA TETHER FOR PASSIVE STYLUS 3/PK | $55.00 | C2 | |
| TRG-NGTC7-ELEC-01 | ZEBRA SCAN HANDLE TC73/TC78 | $484.00 | C2 | |
| SG-PD40-WLD1-01 | ZEBRA WRIST STRAP MC40/PD40 | $19.80 | C2 | |
| SG-NGTC5TC7-HLSTR-01 | ZEBRA HOLSTER SOFT TC53/TC58 | $176.00 | C2 | |
| SG-NGTC7-SCRNP-03 | ZEBRA SCREEN PROTECTOR 3/PK TC73/TC78 | $99.00 | C2 | |
| Other Zebra and third party accessories available on request | ||||
| [G] Extended Maintenance | ||||
| ZJAE-TC73XX-3C00 | ZEBRA ONECARE ESSENTIAL TC73XX 3YR COMP+VIQ | $968.00 | V | |
| ZJAE-TC53XX-3C03 | ZEBRA ONECARE ESSENTIAL TC53XX 3YR COMP+COMM+VIQ | $880.00 | V | |
| ZJAE-TC73XX-5C00 | ZEBRA ONECARE ESSENTIAL TC73XX 5YR COMP+VIQ | $1,551.00 | V | |
| ZJAE-TC73XX-5C03 | ZEBRA ONECARE ESSENTIAL TC73XX 5YR COMP+COMM+VIQ | $1,782.00 | V | |
| ZJAE-TC78XX-3C00 | ZEBRA ONECARE ESSENTIAL TC78XX 3YR COMP+VIQ | $968.00 | V | |
| ZJAE-TC78XX-3C03 | ||||
| ZJAE-TC78XX-5C00 | ZEBRA ONECARE ESSENTIAL TC78XX 5YR COMP+VIQ | $1,551.00 | V | |
| ZJAE-TC78XX-5C03 | ZEBRA ONECARE ESSENTIAL TC78XX 5YR COMP+COMM+VIQ | $1,782.00 | V | |
