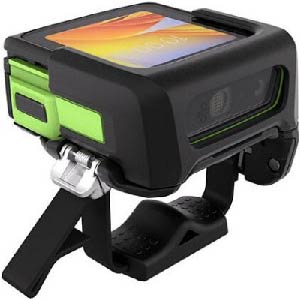

Zebra - WS50
Android Wearable Computer


The Zebra WS50 Android Wearable Computer is a small but mighty all-in one wearable mobile computer. Modular mounting options offer three different wearing styles, including on the wrist, back of hand or over the fingers. Each model is designed to handle daily enterprise tasks from extreme temperatures to consecutive tumbles, with an IP65 rating. The wearable mobile computer is optimised for a range of industries such as retail, hospitality, transportation and logistics plus warehouse and manufacturing.

All the necessary wireless connections are standard with the WS50; Wi-Fi, Bluetooth and NFC allow continuous connectivity and seamless pairing and communication. Integrated audio features give users the ability to communicate through the embedded speaker and microphone or pair with a wireless headset. The WS50 is a single data capture device that eliminates the need for a two piece wearable solution. Workers no longer need separate voice devices or a host mobile computer and ring scanner.

Zebra Mobility DNA offers a suite of enterprise solutions to maximise user productivity and add extra layers of security. During a devices' lifecycle, Mobility DNA will integrate, secure, manage and optimise the investment from Zebra products. The WS50 supports major Enterprise Mobility Management (EMM) systems for businesses to remotely manage their fleet. Reduce IT complexities through managing devices from an EMM system.

Features

  • The world’s smallest all-in-one Android wearable mobile computer
  • Combines a mobile computer and ring scanner into one device
  • Automate workflows with programmable buttons
  • Push-to-talk and task management applications
  • Removable, hot-swappable batteries
  • Multiple mounting options
  • Powered by Zebra Mobility DNA to maximise user productivity
  • One year standard warranty

Specifications

Physical Characteristics
Dimensions
Wrist (device): 62mm x 59mm x 18mm
Wrist (with mount): 74mm x 64mm x 19mm
Converged: 64mm x 62mm x 28mm
Weight
Wrist (device): 70g
Wrist (with mount): 112g
Converged: 134g
Environmental Characteristics
Operating Temperature
-10º to 50ºC
Storage Temperature
-40º to 70ºC
Humidity
5 to 95% (Non-Condensing)
Sealing
IP65
Hardware
CPU
Snapdragon Wear 4100 Platform/SDW429w, Quad-Core 2GHz
Display
2" AMOLED 460 x 460 colour display, optically bonded to touch panel
Touch Panel
Corning Gorilla Glass. Capacitive touch panel. Fingertip and glove support
Operating System
Android 11
Memory
1GB RAM, 8GB FLASH
Buttons
Wrist: 4 buttons (programmable)
Converged: Trigger, 2 buttons (programmable)
Sensors
Light, Motion, Proximity
Scanning
Wrist: 13MP Camera with flash or no data capture option
Converged: SE4770 1D/2D standard range omni-directional imager
Power
Battery Type
PowerPrecision
Battery Capacity
Standard (wrist): 800mAh
High Capacity (Converged): 1300mAh
Communications
Radio
IEEE 802.11 a/b/g/n/ac/d/h/i/r; Wi-Fi™ certified; IPv4, IPv6, 1x1 SISO
Camera
13MP with Flash (Wrist only)
Bluetooth
V4.2, Class 1, BLE
NFC
Tap to Pair, ISO 1443 Type A and B


Ordering Information and Pricing
Part Number Model Number Description RRP
Inc GST
T
%
[A] WS50 Android Wearable Computer
WS5001-0W203D10EA6 ZEBRA PDT WS50 WRIST-MNT BATT AD $1,785.30 C2
WS5001-0B2J3020EA6 ZEBRA PDT WS50 BACK-OF-HAND 2D-SE4770 BATT AD $2,336.40 C2
WS5001-0F2J3020EA6 ZEBRA PDT WS50 FINGER-MNT 2D-SE4770 BATT AD $2,336.40 C2
WS5001-0F2J302PEA6 ZEBRA PDT WS50 FINGER-MNT 2D-SE4770 BATT PROX/S AD $2,405.70 C2
[B] Charging Options
Two Slot Charge Cradle
CRD-WS5X-2SWR-01 ZEBRA DOCK CHARGE ONLY 2-BAY WS50 $462.00 C2
CRD-WS5X-2SCV-01 ZEBRA DOCK CHARGE ONLY 2-BAY WS50 CONVERGED $462.00 C2
Five Slot Charge Cradle
CRD-WS5X-5SECV-01 ZEBRA DOCK CHARGE/ETH 5-BAY WS50 CONVERGED + BATT $2,552.00 C2
Ten Slot Charge Cradle
CRD-WS5X-2SCV-01 ZEBRA DOCK CHARGE ONLY 2-BAY WS50 CONVERGED $462.00 C2
Battery Charger
SAC-WS5X-4S13-01 ZEBRA DOCK CHARGE BATT ONLY 4-BAY WS50 CONVERGED $638.00 C2
SAC-WS5X-20S13-01 ZEBRA DOCK CHARGE BATT ONLY 20-BAY WS50 CONVERGED $2,442.00 C2
[C] Spare Batteries
BTRY-WS5X-13MA-01 ZEBRA BATTERY 1300MAH WS50 CONVERGED SCANNER $187.00 C3
[D] Accessories
SG-WS5X-SCRNP1-01 ZEBRA SCREEN PROTECTOR WS50 $22.00 C2
CBL-WS5X-USB1-01 ZEBRA WS50 USB CHARGE CABLE $132.00 C2
SG-WS5X-TRGA-01 ZEBRA FINGER TRIGGER WS50 CONVERGED & RFID SCANNER $176.00 C2
SG-WS5X-BHMT-01 ZEBRA BACK-OF-HAND MNT WS50 CONVERGED & RFID SCANN $143.00 C2
MCZESGWS5XWSTRP01 ZEBRA WRIST STRAP FOR WS50 $44.00 A
Handwrap Left Hand
SG-WEAR-HNWPLL-01 ZEBRA HANDWRAP WS50/RS5100/RS6100 L/HAND LARGE $88.00 C2
SG-WEAR-HNWPLM-01 ZEBRA HANDWRAP WS50/RS5100/RS6100 L/HAND MEDIUM $88.00 C2
SG-WEAR-HNWPLS-01 ZEBRA HANDWRAP WS50/RS5100/RS6100 L/HAND SMALL $88.00 C2
Handwrap Right Hand
SG-WEAR-HNWPRL-01 ZEBRA HANDWRAP WS50/RS5100/RS6100 R/HAND LARGE $88.00 C2
SG-WEAR-HNWPRM-01 ZEBRA HANDWRAP WS50/RS5100/RS6100 R/HAND MEDIUM $88.00 C2
SG-WEAR-HNWPRS-01 ZEBRA HANDWRAP WS50/RS5100/RS6100 R/HAND SMALL $88.00 C2
[E] Extended Maintenance
Z1AE-WS50XX-3C00 ZEBRA ONECARE ESSENTIAL WS50XX 3YR COMP $454.30 V
Z1AE-WS50XX-5C00 ZEBRA ONECARE ESSENTIAL WS50XX 5YR COMP $740.30 V
