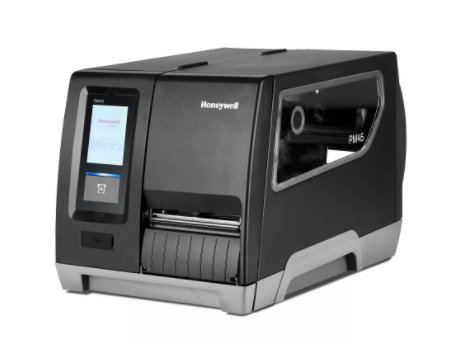

Honeywell - EasyCoder PM45
Bar Code Printer


The Honeywell PM45 series industrial printer is designed for high quality label printing in harsh industrial environments. The WWAN connective printer enables 24/7 data communication and real-time visibility of critical data from a wide range of locations.

Enterprises today are facing increasing challenges on production flexibility, inventory turnover, and cost control. The PM45 industrial printer offers high-precision and high volume printing along with track-and-trace functionality to increase production efficiency and supply chain transparency in food and beverage, pharmaceuticals, manufacturing, warehouse, and distribution center management.

Built on the Honeywell print platform, the durable PM45 printer offers print speeds of up to 14 ips. With print registration of up to +/-0.5 mm, the PM45 printer can ensure high print quality of barcodes, texts, and images, even on small electronic component and pharmaceutical labels. As a highly connected industrial printer, the PM45 is packed with first-in-class WWAN connectivity to enable deployment with minimal limitation from site network topology. The PM45 printer is also scalable to incorporate RFID, parallel, industrial, and applicator interfaces to address your unpredictable business needs in the future.

To support your transformation to intelligent manufacturing and supply chain management, the PM45 printer supports variable network protocols and multiple print languages to enable easy integration into your system whether it’s on a local server or the cloud. With the embedded Honeywell software tool Smart Parse, you can quickly change the position, size of objects and barcode, or font type on labels without the need to change the backend system or having any programming skills. Honeywell Operational Intelligence equipped the PM45 printer with the capability of remote management for issues diagnostics and output performance tracking.

The PM45 can support a wide range of media – including ink-in and ink-out ribbons with one-inch core size – enhancing the time between media resupply. With Honeywell’s firmware platform that supports multiple print languages, the PM45 printer is an easy replacement for existing Honeywell or mixed printers. A rugged, all-metal print mechanism, easy printhead, and tool-free platen roller replacement, help minimize downtime and maintenance needs.

Features:

  • DT & TT printing
  • 8" (210mm) diameter label roll
  • Tear-off or label peel; tickets or tags in rolls or fan-folded
  • Rugged and Reliable
  • Optional RFID reader/writer
  • User Friendly - from loading labels to changing the print head operations are quick and easy
  • Intelligent and Adaptive - using the Fingerprint programming language the PM45 can easily be integrated into any situation
  • Optional IEEE 802.11b/g/n and Bluetooth Radio
  • Integrated WWAN RADIO and Micro SIM Slot
  • 12 month Warranty with Extension options

Specifications

Physical Characteristics
Length
483mm
Height
295mm
Width
284mm
Weight
13.2kg
Print Speed
Selectable
50–350mm/s (2–14 ips) variable (203 dpi)
50–300mm/s (2–12 ips) variable (300 dpi)
40–250mm/s (2–10 ips) variable (406 dpi)
50–150mm/s (2–6 ips) variable (600 dpi)
Media Specifications
Label Width
19mm to 114 mm
Type

Linered Labels and Tags
Gap, notch, blackmark, continuous
Label Roll Diameter (maximum)
210 mm (8.3")
Media Core Diameter
38-76 mm
Print Specifications
Width (maximum)
108mm (203/406dpi)
105.6mm (300/600dpi)
Print Resolution
8 dots/mm (203 dpi), 12 dots/mm (300 dpi), 16 dots/mm (406dpi), 24 dots/mm (600 dpi)
Memory
Standard
128MB Flash
256MB SDRAM
Optional
Multi GB USB Memory Stick
Bar codes
1 Dimensional
All major 1D Bar Code Symbologies supported
2 Dimensional
All major 2D Bar Code Symbologies supported
Fonts
10 resident scalable fonts standard, with the option of downloading additional fonts
TrueType, OpenType and Bitmap Font capable with Monotype Font Engine
Interface's
Standard
Ethernet 10/100/1000, USB Host x2, USB Client, WWAN CAT4 LTE Modem(MicroSIM Slot)
Optional
Parallel, IEEE 802.11a/b/g/n/ac WLAN and Bluetooth 5.0, Applicator, RFID Class 1 Gen2 18000-6C
Industrial interface with: eight digital I/O, four analog relays, one RS232/422/485 portport

PM43 Configuration Selection Guide


PM45A
   User Interface

0

1



Icon

Touch Screen

   LAN Connectivity

0

2



EasyLAN Ethernet

Ethernet and WiFi with Bluetooth

   I/O Option

0000

0100

0200

0300



No I/O

Parallel

Industrial Interface

Applicator

   Media Option

0

3



Standard - Paper Hanger

Rewind and Label Taken Sensor

   Real Time Clock

0



No RTC

  Print Option

200

210

300

400

600

203 dpi, Thermal Transfer

203 dpi, Direct Thermal Only

300 dpi, Thermal Transfer

406 dpi, Thermal Transfer

600 dpi, Thermal Transfer


PM45A
Ordering Information and Pricing
Part Number Model Number Description RRP
Inc GST
T
%
[A] RFID Printer
PM45A12AZ0030200 PM45A-RFID HONEYWELL PRINTER PM45A TT 203DPI NET WIFI SS RFID $6,666.00 C2
[B] Printer (only some options shown)
203 DPI Thermal Transfer Printers
PM45A10000000200 HONEYWELL PRINTER PM45A TCH TT 203DPI NET $2,486.00 C2
PM45A10010030200 HONEYWELL PRINTER PM45A TCH TT 203DPI NET PAR SS $4,774.00 C2
PM45A12000000200 HONEYWELL PRINTER PM45A TCH TT 203DPI NET WIFI $4,862.00 C2
PM45A10030030200 HONEYWELL PRINTER PM45A TCH TT 203DPI NET APP SS $6,622.00 C2
PM45A10020030200 HONEYWELL PRINTER PM45A TCH TT 203DPI NET IND SS $4,950.00 C2
PM45A12AZ0030200 PM45A-RFID HONEYWELL PRINTER PM45A TT 203DPI NET WIFI SS RFID $6,666.00 C2
300 DPI Thermal Transfer Printers
PM45A10000000300 HONEYWELL PRINTER PM45A TCH TT 300DPI NET $4,532.00 C2
PM45A10000030300 HONEYWELL PRINTER PM45A TCH TT 300DPI NET SS $5,280.00 C2
PM45A10030030300 HONEYWELL PRINTER PM45A TCH TT 300DPI NET APP SS $5,456.00 C2
PM45A10020030300 HONEYWELL PRINTER PM45A TCH TT 300DPI NET IND SS $5,456.00 C2
PM45A12000000300 HONEYWELL PRINTER PM45A TCH TT 300DPI NET WIFI $5,192.00 C2
PM45A10010030300 HONEYWELL PRINTER PM45A TCH TT 300DPI NET PAR SS $5,280.00 C2
406 DPI Thermal Transfer Printers
PM45A10000000400 HONEYWELL PRINTER PM45A TCH TT 406DPI NET $4,664.00 C2
PM45A12000000400 HONEYWELL PRINTER PM45A TCH TT 406DPI NET WIFI $5,698.00 C2
PM45A10000030400 HONEYWELL PRINTER PM45A TCH TT 406DPI NET SS $5,126.00 C2
600 DPI Thermal Transfer Printers
PM45A10000000600 HONEYWELL PRINTER PM45A TCH TT 600DPI NET $5,126.00 C2
PM45A10010030600 HONEYWELL PRINTER PM45A TCH TT 600DPI NET PAR SS $6,457.00 C2
PM45A10000030600 HONEYWELL PRINTER PM45A TCH TT 600DPI NET SS $6,204.00 C2
Contact UMD for pricing on specific configurations sales@umd.com.au
[C] Accessories
50180221-001 HONEYWELL PM45 COLLAPSIBLE CORE $88.00 C2
50174832-001 HONEYWELL INTERFACE PM45 WIFI $1,078.00 C2
50180196-001 HONEYWELL LABEL DISPENSER PM45 $253.00 C2
50180206-001 HONEYWELL PM45 CUTTER KIT $1,166.00 C2
50180233-001
[D] Replacement Parts/Consumables
50180192-001
50180235-001 HONEYWELL PLATEN ROLLER PM45 $132.00 C2
50180236-001 HONEYWELL PRINTHEAD PM45 203DPI $1,045.00 C2
50180237-001 HONEYWELL PRINTHEAD PM45 300DPI $1,221.00 C2
An extensive range of off-the-shelf and custom labels are available.
Standard Stock Labels
Custom Labels (Note UMD Core Size Code = J or K)
[E] Extended Warranty/Maintenance Options
Edge Gold Extended Maintenance:
SVCPM45-SG3N HONEYWELL EDGE SERVICE GOLD PM45 5D 3Y $594.00 V
SVCPM45-SG5N HONEYWELL EDGE SERVICE GOLD PM45 5D 5Y $1,067.00 V
Printhead Refresh Service -Contract Add-On Option (pre-purchase printheads at a discount)
SVCPRINTHEAD-PM1 HONEYWELL EDGE SERVICE ADDON PRINTHEAD PM 1Y 1PH $341.00 V
SVCPRINTHEAD-PM3 HONEYWELL EDGE SERVICE ADDON PRINTHEAD PM 3Y 2PH $682.00 V
SVCPRINTHEAD-PM5 HONEYWELL EDGE SERVICE ADDON PRINTHEAD PM 5Y 3PH $1,023.00 V
Cleaning Products
