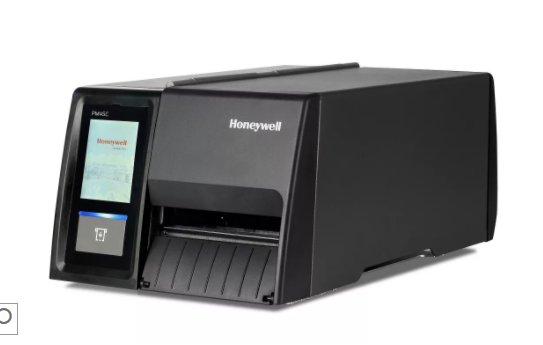

Honeywell - EasyCoder PM45c


The Honeywell PM45c compact industrial printer is designed for high quality label printing in harsh industrial environments where space is at a premium. The WWAN connective printer enables 24/7 data communication and real-time visibility of critical data from a wide range of locations.

Enterprises today are facing increasing challenges on production flexibility, inventory turnover, and cost control. The PM45c industrial printer offers high-precision and high volume printing along with track-and-trace functionality to increase production efficiency and supply chain transparency in food and beverage, pharmaceuticals, manufacturing, warehouse, and distribution center management.

Built on the Honeywell print platform, the durable PM45c printer offers print speeds of up to 14 ips. With print registration of up to +/-0.5 mm, the PM45c printer can ensure high print quality of barcodes, texts, and images, even on small electronic component and pharmaceutical labels. As a highly connected industrial printer, the PM45c is packed with first-in-class WWAN connectivity to enable deployment with minimal limitation from site network topology. The PM45c printer is also scalable to incorporate RFID, parallel, industrial, and applicator interfaces to address your unpredictable business needs in the future.

To support your transformation to intelligent manufacturing and supply chain management, the PM45c printer supports variable network protocols and multiple print languages to enable easy integration into your system whether it’s on a local server or the cloud. With the embedded Honeywell software tool Smart Parse, you can quickly change the position, size of objects and barcode, or font type on labels without the need to change the backend system or having any programming skills. Honeywell Operational Intelligence equipped the PM45 printer with the capability of remote management for issues diagnostics and output performance tracking.

The PM45c can support a wide range of media – including ink-in and ink-out ribbons with one-inch core size – enhancing the time between media resupply. With Honeywell’s firmware platform that supports multiple print languages, the PM45c printer is an easy replacement for existing Honeywell or mixed printers. A rugged, all-metal print mechanism, easy printhead, and tool-free platen roller replacement, help minimize downtime and maintenance needs.

Features:

  • DT & TT printing
  • 6" (150mm) diameter label roll or 8" (210mm) with Mega Door
  • Tear-off or label peel; tickets or tags in rolls or fan-folded
  • Rugged and Reliable
  • Optional RFID reader/writer
  • User Friendly - from loading labels to changing the print head operations are quick and easy
  • Intelligent and Adaptive - using the Fingerprint programming language the PM45c can easily be integrated into any situation
  • Optional IEEE 802.11b/g/n and Bluetooth Radio
  • Integrated WWAN RADIO and Micro SIM Slot
  • 12 month Warranty with Extension options

Specifications

Physical Characteristics
Length
Standard:
With Mega Door:

432mm
500mm
Height
Standard:
With Mega Door:

181mm
245mm
Width
253mm
Weight
12.8kg
Print Speed
Selectable
50–350mm/s (2–14 ips) variable (203 dpi)
50–300mm/s (2–12 ips) variable (300 dpi)
40–250mm/s (2–10 ips) variable (406 dpi)
50–150mm/s (2–6 ips) variable (600 dpi)
Media Specifications
Label Width
19mm to 114 mm
Type

Linered Labels and Tags
Gap, notch, blackmark, continuous
Label Roll Diameter (maximum)
Standard:
With Mega Door:

150mm (6")
210 mm (8.3")
Media Core Diameter
38-76 mm
Print Specifications
Width (maximum)
108mm (203/406dpi)
105.6mm (300/600dpi)
Print Resolution
8 dots/mm (203 dpi), 12 dots/mm (300 dpi), 16 dots/mm (406dpi), 24 dots/mm (600 dpi)
Memory
Standard
128MB Flash
256MB SDRAM
Optional
Multi GB USB Memory Stick
Bar codes
1 Dimensional
All major 1D Bar Code Symbologies supported
2 Dimensional
All major 2D Bar Code Symbologies supported
Fonts
10 resident scalable fonts standard, with the option of downloading additional fonts
TrueType, OpenType and Bitmap Font capable with Monotype Font Engine
Interface's
Standard
Ethernet 10/100/1000, USB Host x2, USB Client, WWAN CAT4 LTE Modem(MicroSIM Slot)

PM43 Configuration Selection Guide


PM45CA
   User Interface

0

1



Icon

Touch Screen

   LAN Connectivity

0



EasyLAN Ethernet

   Door Option

0

1

2



Standard Door

Short Door

Mega Door

   I/O Option

0



No Option

   Media Option

00

30



None

Rewinder + label taken sensor

  Print Option

200

210

300

400

600

203 dpi, Thermal Transfer

203 dpi, Direct Thermal Only

300 dpi, Thermal Transfer

406 dpi, Thermal Transfer

600 dpi, Thermal Transfer


PM45CA
Ordering Information and Pricing
Part Number Model Number Description RRP
Inc GST
T
%
[A] PM45c Compact Printer - Icon only versions
PM45CA0000000210
PM45CA0000000200
PM45CA0000030200
PM45CA0020000200
[B] PM45c Compact Printer - Full Touch Screen versions
PM45CA1000000200 HONEYWELL PRINTER PM45C TCH TT 203DPI NET $4,114.00 C2
PM45CA1000000600 HONEYWELL PRINTER PM45C TCH TT 600DPI NET $5,698.00 C2
PM45CA1000030200 HONEYWELL PRINTER PM45C TCH TT 203DPI NET SS $4,653.00 C2
PM45CA1010000200 HONEYWELL PRINTER PM45C TCH TT 203DPI NET SH $4,114.00 C2
PM45CA1010030200 HONEYWELL PRINTER PM45C TCH TT 203DPI NET SH SS $4,653.00 C2
PM45CA1010030300 HONEYWELL PRINTER PM45C TCH TT 300DPI NET SH SS $5,159.00 C2
PM45CA1010030600 HONEYWELL PRINTER PM45C TCH TT 600DPI NET SH SS $6,336.00 C2
PM45CA1020000200 HONEYWELL PRINTER PM45C TCH TT 203DPI NET DM $4,279.00 C2
PM45CA1020030200 HONEYWELL PRINTER PM45C TCH TT 203DPI NET DM SS $4,774.00 C2
Contact UMD for pricing on specific configurations sales@umd.com.au
[C] Accessories
50180221-001 HONEYWELL PM45 COLLAPSIBLE CORE $88.00 C2
50180201-001 HONEYWELL CUTTER PM45C $1,078.00 C2
[D] Replacement Parts/Consumables
50180192-001
50180235-001 HONEYWELL PLATEN ROLLER PM45 $132.00 C2
50180236-001 HONEYWELL PRINTHEAD PM45 203DPI $1,045.00 C2
50180237-001 HONEYWELL PRINTHEAD PM45 300DPI $1,221.00 C2
50180238-001
50180234-001 HONEYWELL PRINTHEAD PM45 600DPI $2,321.00 C2
An extensive range of off-the-shelf and custom labels are available.
Standard Stock Labels
[E] Extended Warranty/Maintenance Options
Edge Gold Extended Maintenance:
SVCPM45-SG3N HONEYWELL EDGE SERVICE GOLD PM45 5D 3Y $594.00 V
SVCPM45-SG5N HONEYWELL EDGE SERVICE GOLD PM45 5D 5Y $1,067.00 V
SVCPM45-SG1R HONEYWELL EDGE SERVICE GOLD PM45 5D 1Y RNW $275.00 V
Extended Warranty only:
SVCPM45-EXW2
SVCPM45-EXW3
SVCPM45-EXW1R
Printhead Refresh Service -Contract Add-On Option (pre-purchase printheads at a discount)
SVCPRINTHEAD-PM1 HONEYWELL EDGE SERVICE ADDON PRINTHEAD PM 1Y 1PH $341.00 V
SVCPRINTHEAD-PM3 HONEYWELL EDGE SERVICE ADDON PRINTHEAD PM 3Y 2PH $682.00 V
SVCPRINTHEAD-PM5 HONEYWELL EDGE SERVICE ADDON PRINTHEAD PM 5Y 3PH $1,023.00 V
Cleaning Products
